Installation Procedure

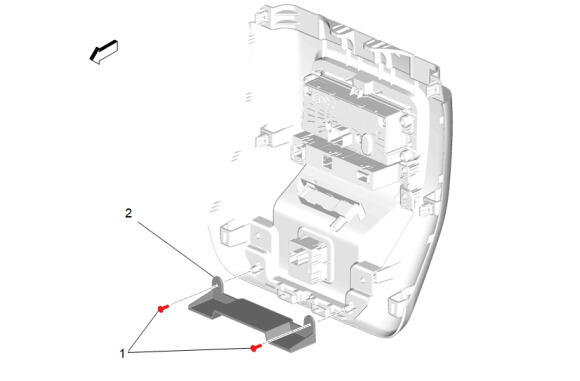

  1. GM5569768Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Opening Protector (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Floor Lower Console Bolt (1) - Install and tighten [2x] - Fastener Specifications

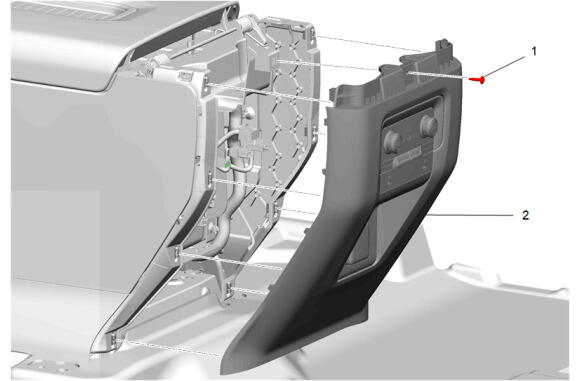

  3. GM5549536Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Rear Trim Panel (2) - Install
  5. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications

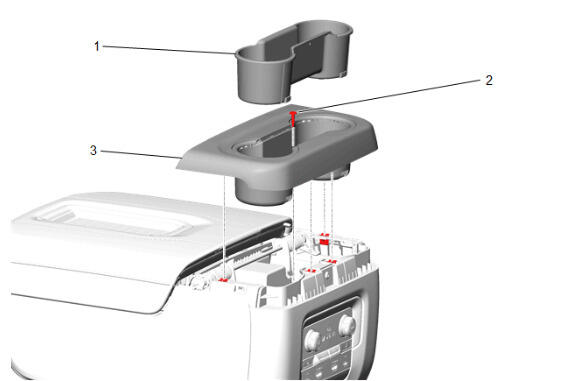

  6. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  7. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    8. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  8. Front Floor Console Rear Cup Holder Liner (1) - Install
