Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

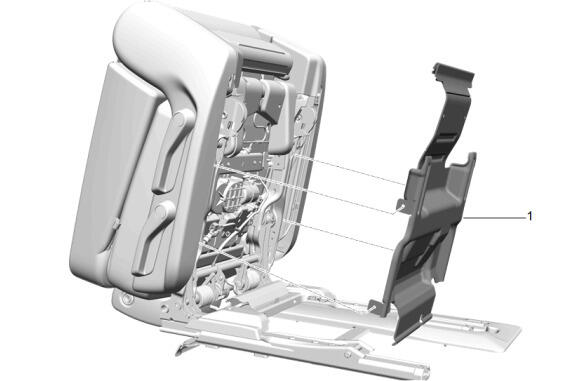

Rear Seat Heater Vent Control Module (2) - Install

CAUTION:

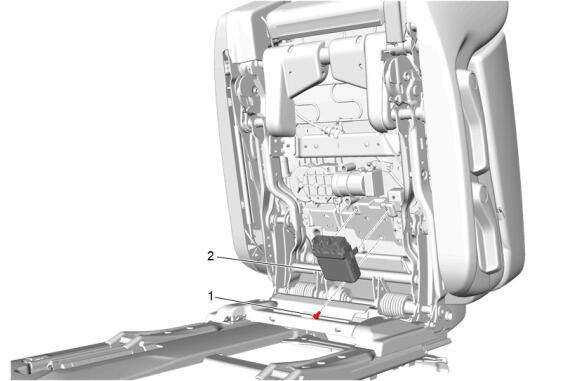

Front Seat Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Cushion Trim Panel-Passenger Side (1) - Install
Return the rear seat to the original position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Back Opening Finish Cover Retainer-Passenger Side (1) - Install [4x]

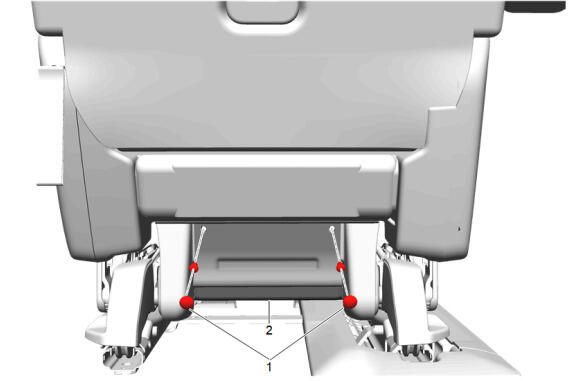

Secure the J-channel retainers on the passenger side rear seat cushion trim panel (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

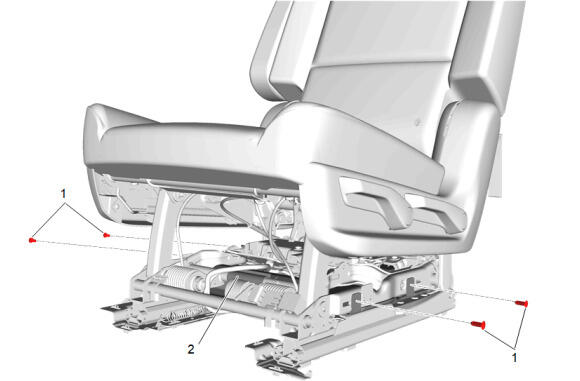

Secure the J-channel retainers of the passenger side rear seat cushion cover and rear seat cushion trim panel (2).
Rear Seat Riser Finish Cover Retainer-Passenger Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

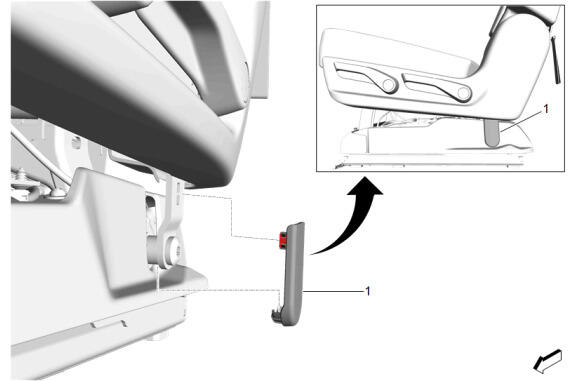

Install the passenger side inboard rear seat riser inner finish cover (1).
If necessary, return the rear seats to their original positions.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

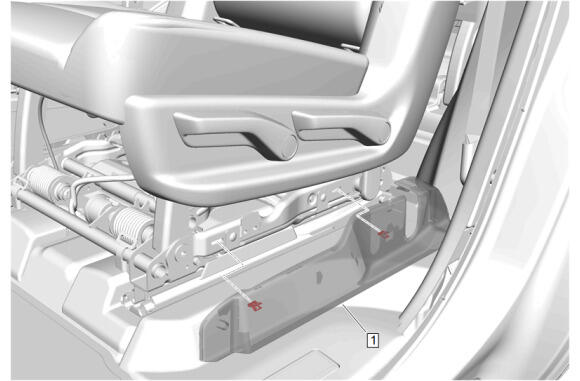

Install the passenger side outboard rear seat riser inner finish cover (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

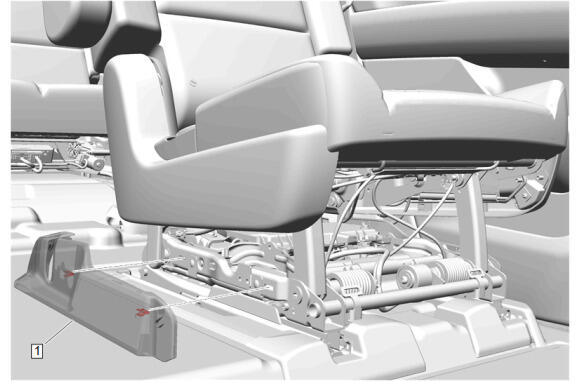

Rear Seat Riser Finish Cover-Passenger Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

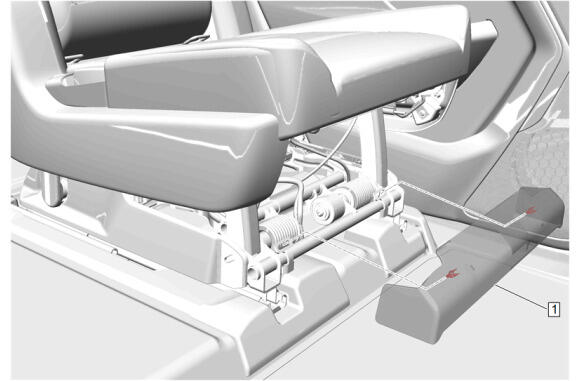

Rear Seat Riser Finish Cover-Passenger Side (1) - Install
