Installation Procedure

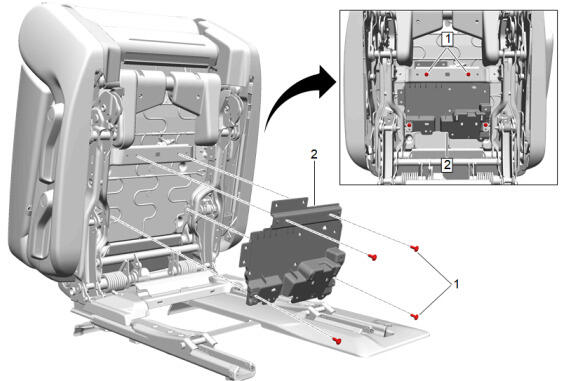

  1. GM5606893Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Heater Control Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. Position the wiring harness and connect the harness retainers.
  4. GM5606804Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion Trim Panel (1) - Install

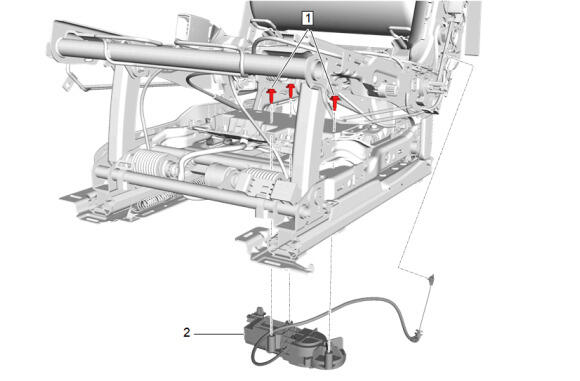

  5. GM5606902Courtesy of GENERAL MOTORS COMPANY

    Return the rear seat to the original position.

  6. Folding Rear Seat Back Actuator (2) - Install
  7. Rear Seat Riser Bolt (1) - Install and tighten [3x] - Fastener Specifications
  8. GM5605757Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Opening Finish Cover Retainer (1) - Install [4x]

  9. Secure the J-channel retainers on the rear seat cushion trim panel (2).
  10. GM5605756Courtesy of GENERAL MOTORS COMPANY

    Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

  11. Rear Seat Riser Finish Cover Retainer (1) - Install [2x]
  12. GM5599036Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Inner Finish Cover-Inboard (1) - Install

  13. GM5599035Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Inner Finish Cover-Outboard (1) - Install

  14. GM5605358Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Finish Cover (1) - Install [2x]

  15. GM5599034Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Finish Cover (1) - Install
