Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

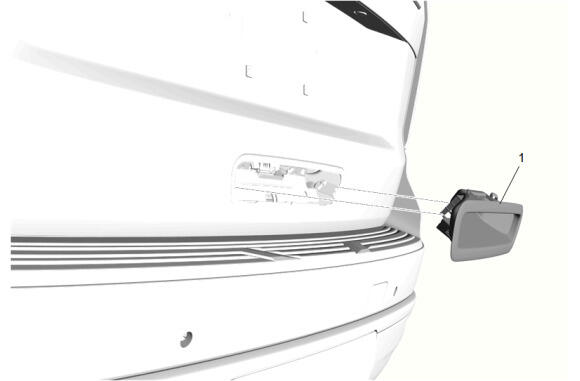

Rear Closure Fixed Handle Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Rear Closure Fixed Handle Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Liftgate Exterior Release Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Liftgate Lower Trim Finish Panel (3) - Install
Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
Rear Compartment Lid Inner Panel Trim Hole Plug (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Liftgate Upper Side Trim Finish Panel (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Liftgate Upper Center Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Liftgate Lower Trim Finish Panel Access Hole Cover (2) - Install
Liftgate Trim Finish Panel Locator (1) - Install [2x]
Close the rear compartment lift window.
Ensure the window operates properly.
