Installation Procedure

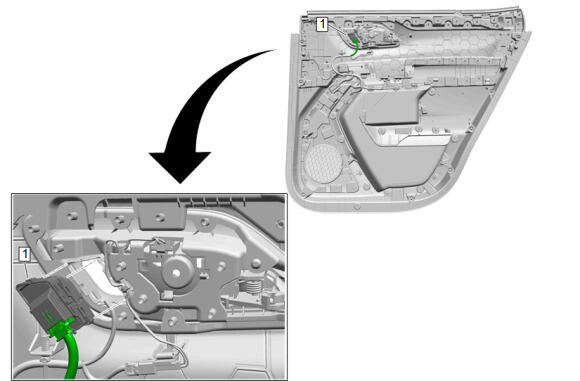

  1. GM5582608Courtesy of GENERAL MOTORS COMPANY

    Door Lock Switch - Rear (1) - Install

  2. Connect the electrical connector.
  3. Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
