Installation Procedure
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

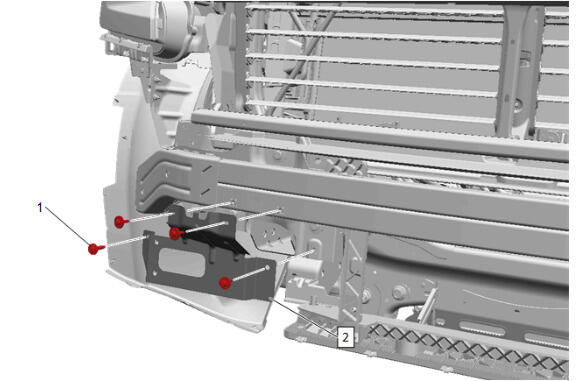

- Forward Range Radar Bracket (2) - Install
- Forward Range Radar Bracket Bolt (1) - Install [4x] - Fastener Specifications
- Forward Range Radar Sensor (2) - Install
- Forward Range Radar Sensor Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connector.
- Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (with RC1)
, or Front Bumper Fascia Removal and Installation (with WTX)
- Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
CAUTION:
Refer to Fastener Caution .
