Installation Procedure

  1. Clean the sealing surfaces.

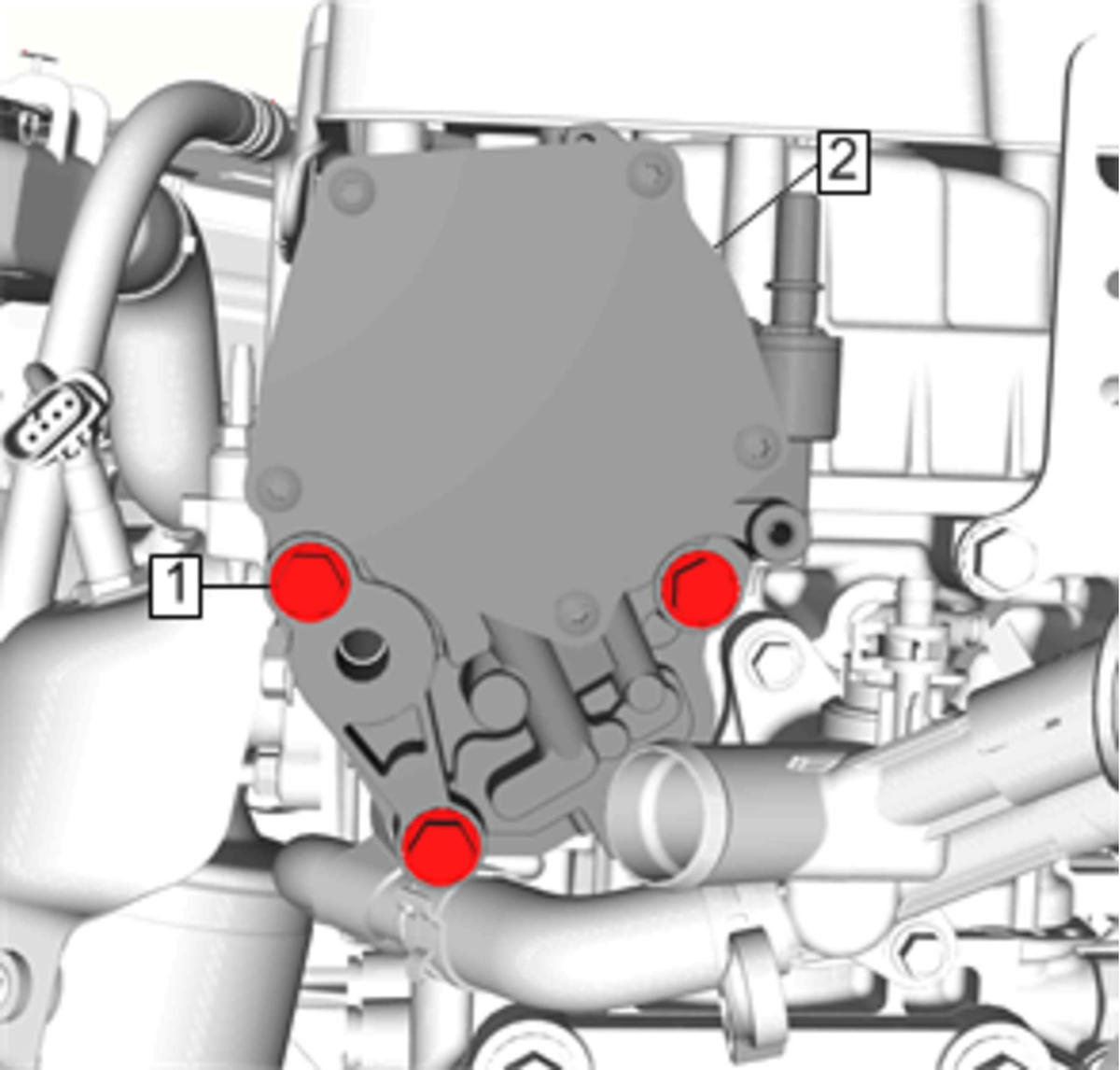

  2. GM4230578Courtesy of GENERAL MOTORS COMPANY

    Install a NEW vacuum pump gasket.

  3. Install the vacuum pump (2).
    4. CAUTION:

    Refer to Fastener Caution

  4. Vacuum Pump Bolt (1) - Tighten [3x]

    Tighten

    1. First Pass: 15 N.m (11 lb ft)
    2. Final Pass: 25 N.m (18 lb ft)

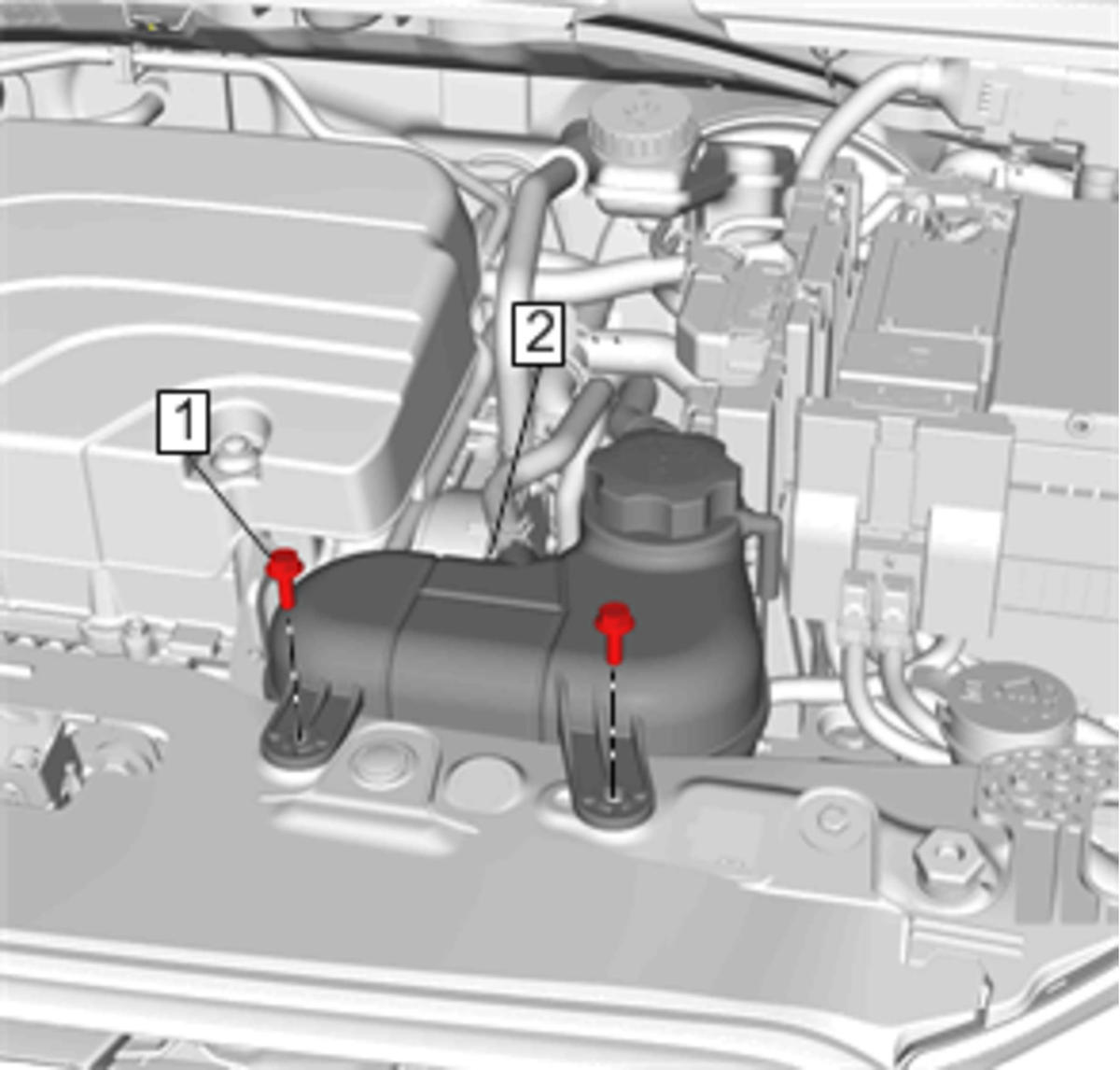

  5. GM4230576Courtesy of GENERAL MOTORS COMPANY

    Install the surge tank fixing bolts and tighten to 5 N.m (44 lb in)

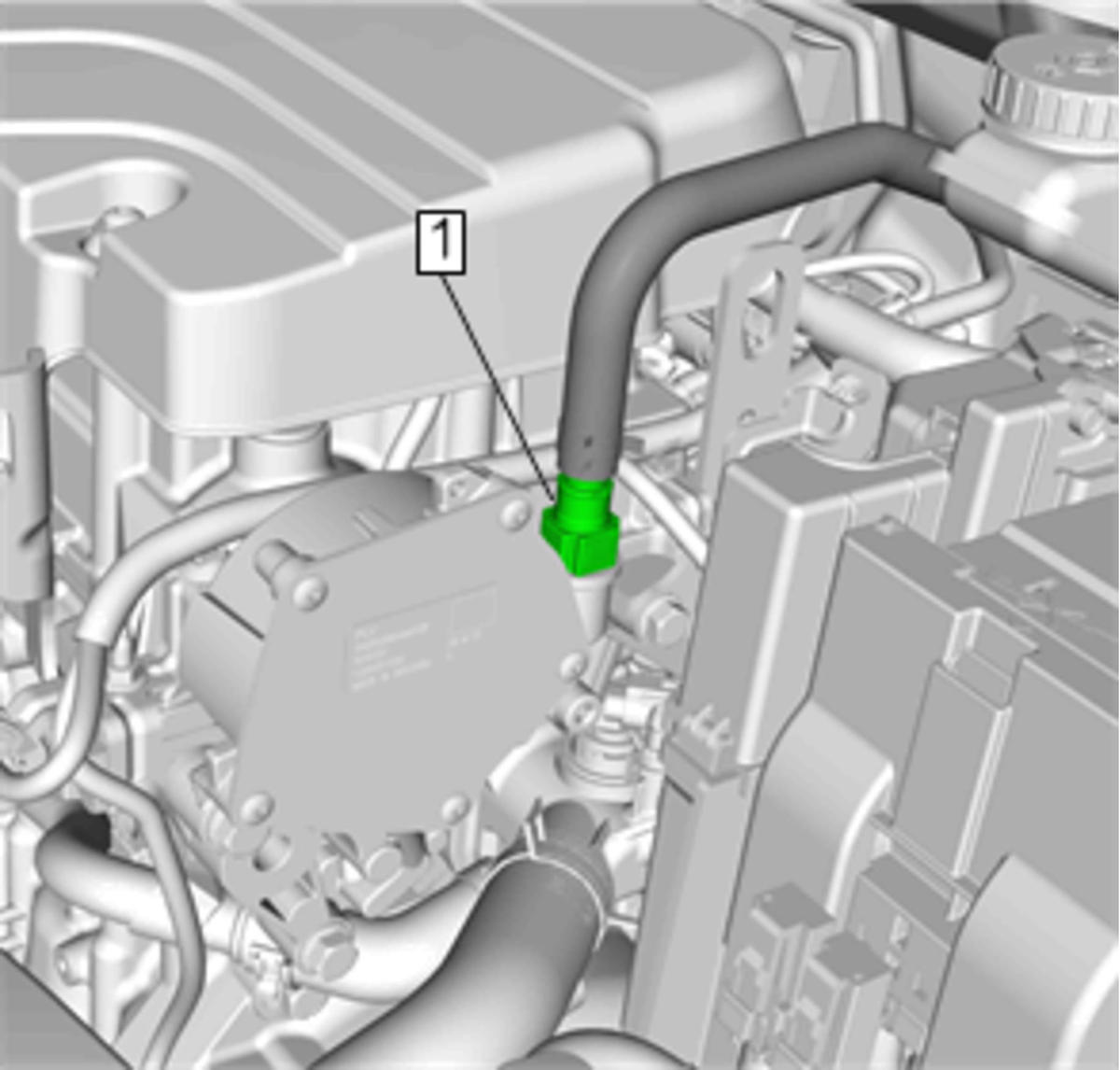

  6. GM4230575Courtesy of GENERAL MOTORS COMPANY

    Install the brake booster vacuum pipe (1) to the vacuum pump. Refer to Plastic Collar Quick Connect Fitting Service .
