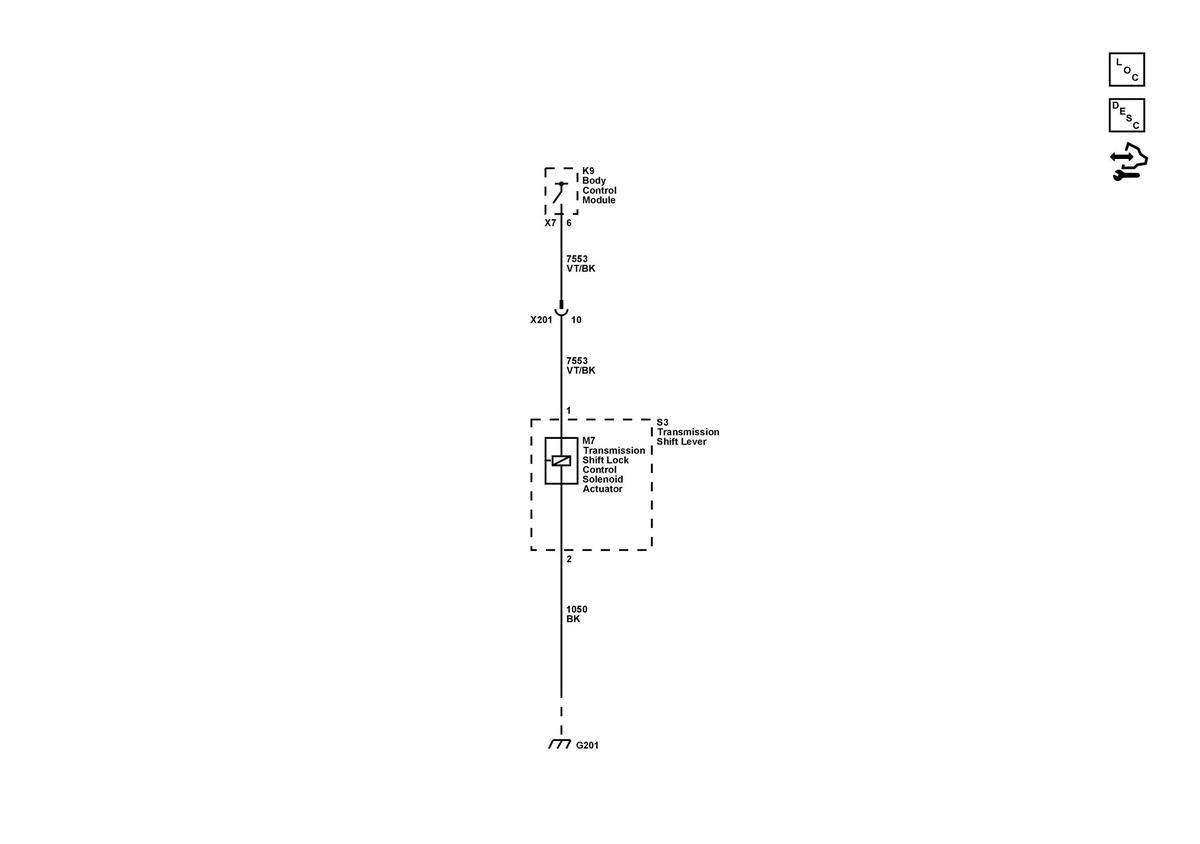

Home >> Chevrolet >> 2022 >> Spark ACTIV, Automatic CVT Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock (MR8)
