Installation Procedure

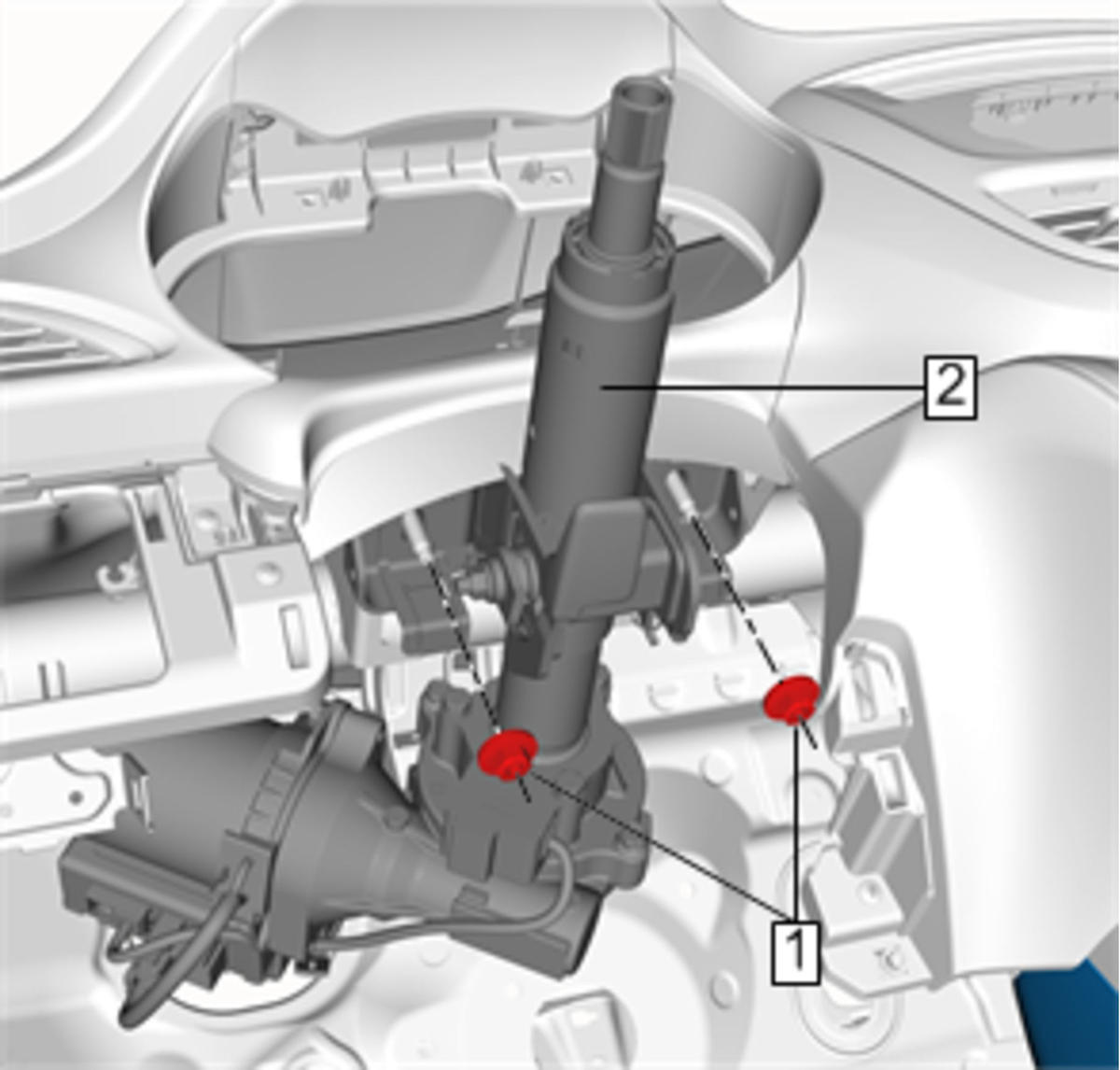

  1. GM4024323Courtesy of GENERAL MOTORS COMPANY

    Install the steering column (2) to the vehicle.

  2. Install and hand tighten the steering column upper support bracket nuts (1).

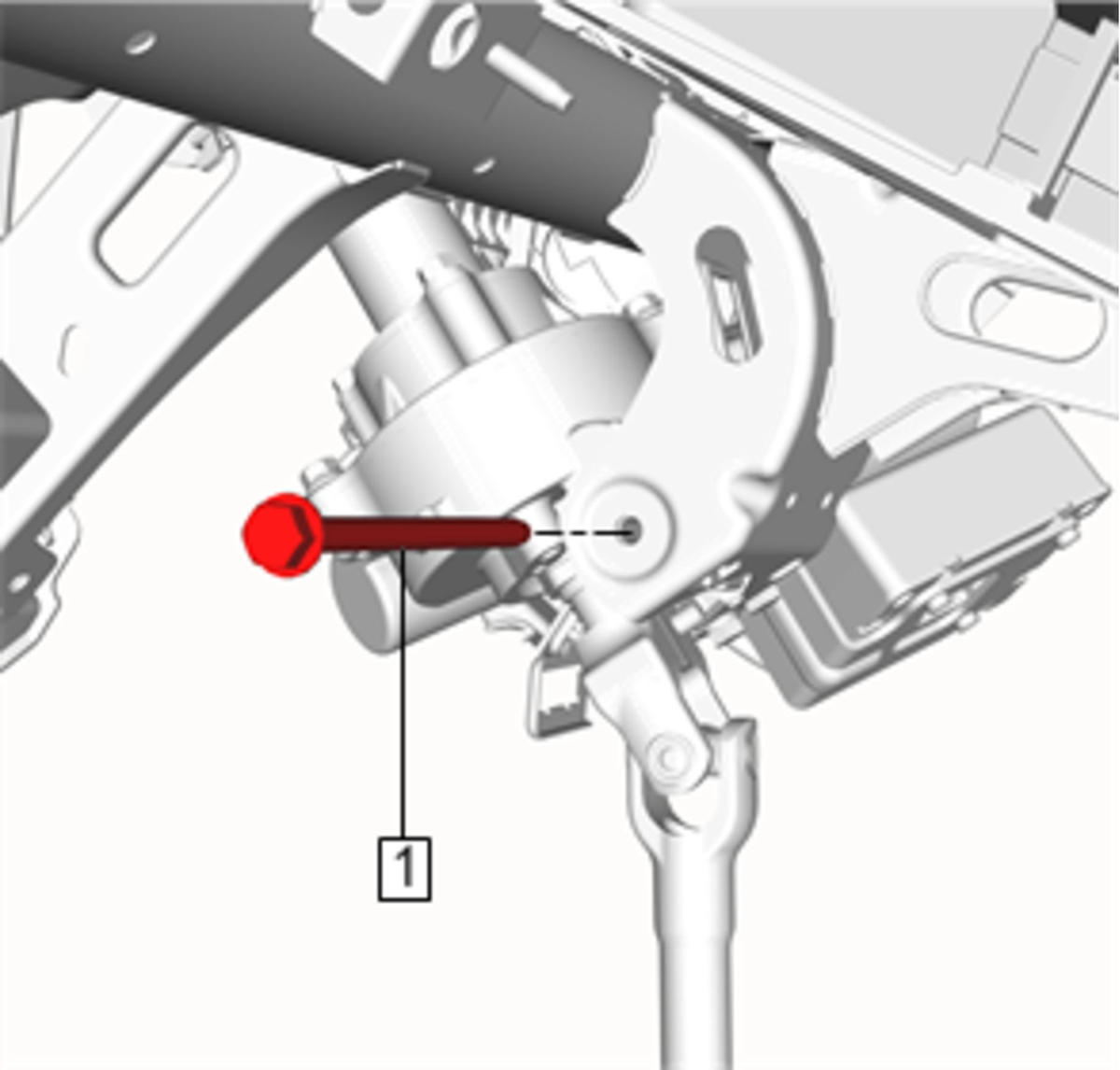

  3. GM4024318Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the steering column lower support bracket bolt (1) and tighten to 27 N.m (20 lb ft).

  4. Tighten the steering column upper support bracket nuts to 27 N.m (20 lb ft).
  5. Connect the electric connectors to the steering column.
  6. Install the ignition and start switch housing assembly. Refer to Ignition and Start Switch Housing Replacement .
  7. Install the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
  8. Install the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement .
  9. Install the steering wheel. Refer to Steering Wheel Replacement .
  10. Install the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement .
  11. Install the I/P knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
  12. If equipped, install the steering column lock module. Refer to Column Lock Module Replacement .
  13. Install the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
  14. Install the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
  15. Program the electronic power steering control module. Refer to Control Module References .
  16. Calibrate the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
