Radiator Support Components
Radiator Support Components

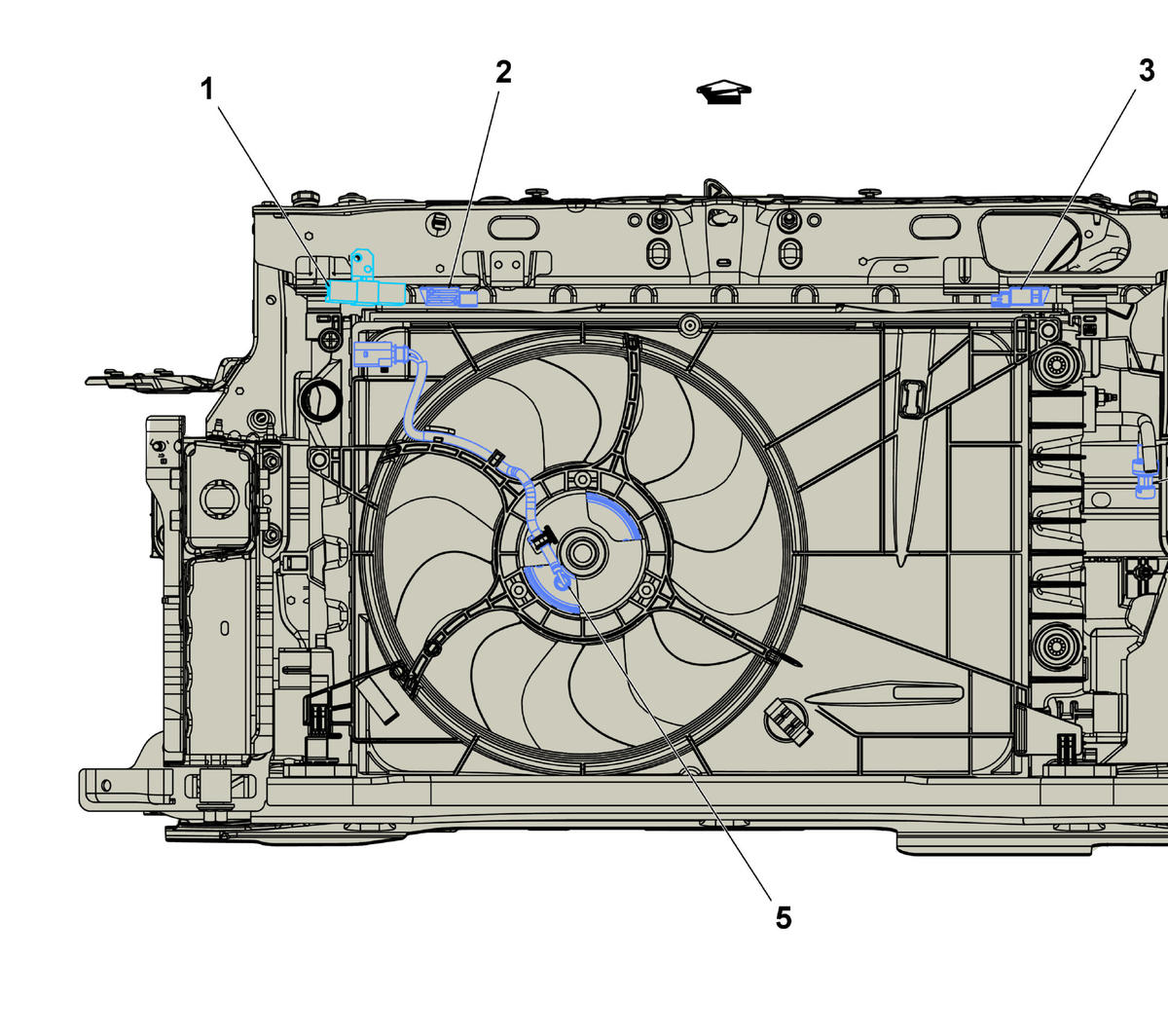

| Component Name | Callout |
|---|---|
| R10 Cooling Fan Resistor R10 Cooling Fan Resistor X1 , or R10 Cooling Fan Resistor X2 | 1 |
| B59L Front Impact Sensor - Left (AYF) B59L Front Impact Sensor - Left (D9X) | 2 |
| B59R Front Impact Sensor - Right (AYF) B59R Front Impact Sensor - Right (D9X) | 3 |
| B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor | 4 |
| G10 Cooling Fan Motor G10 Cooling Fan Motor | 5 |
