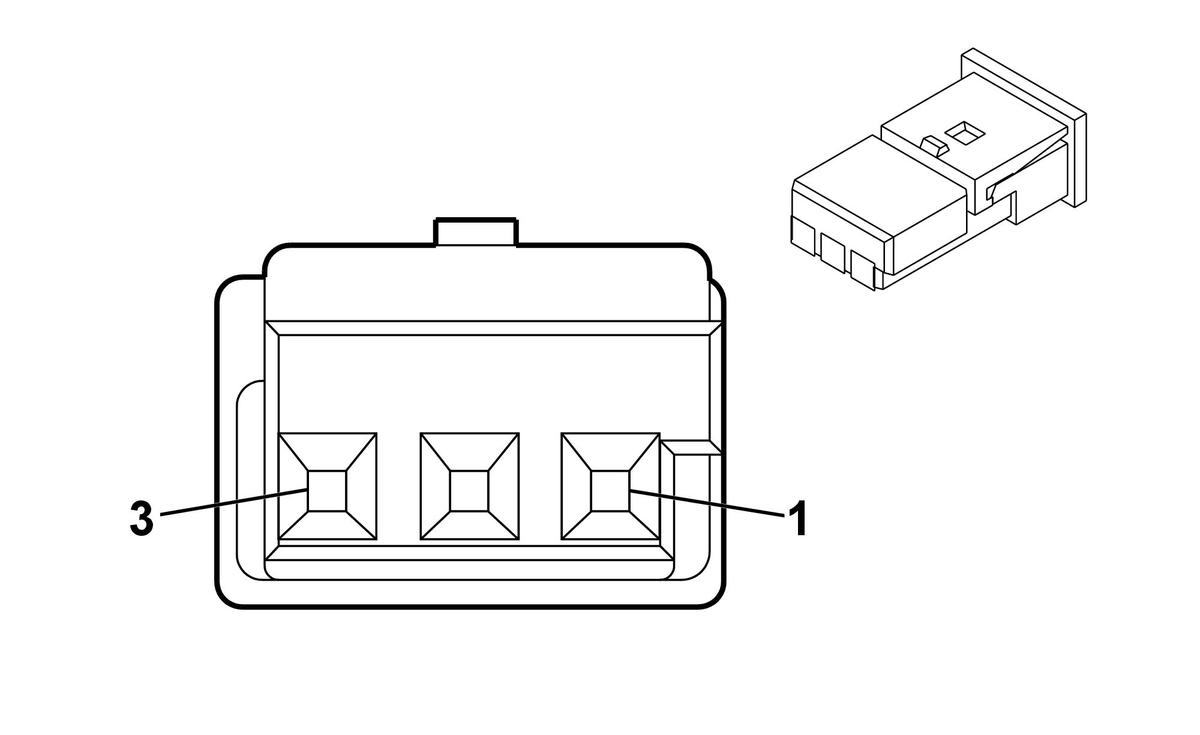

K89 Immobilizer Control Module (AVJ)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness Extension Harness
- OEM Connector: 1743164-2
- Service Connector: Service by Harness
- Description: 3-Way F Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN / GY |
3277 |
Vehicle Anti-Theft System Immobilizer Low Reference |
I |
AVJ |
| 2 |
0.35 |
GN / VT |
7533 |
Immobilizer LIN Bus 1 |
I |
AVJ |
| 3 |
0.35 |
GY / BK |
3276 |
Immobilizer Control Module Control |
I |
AVJ |
