Installation Procedure

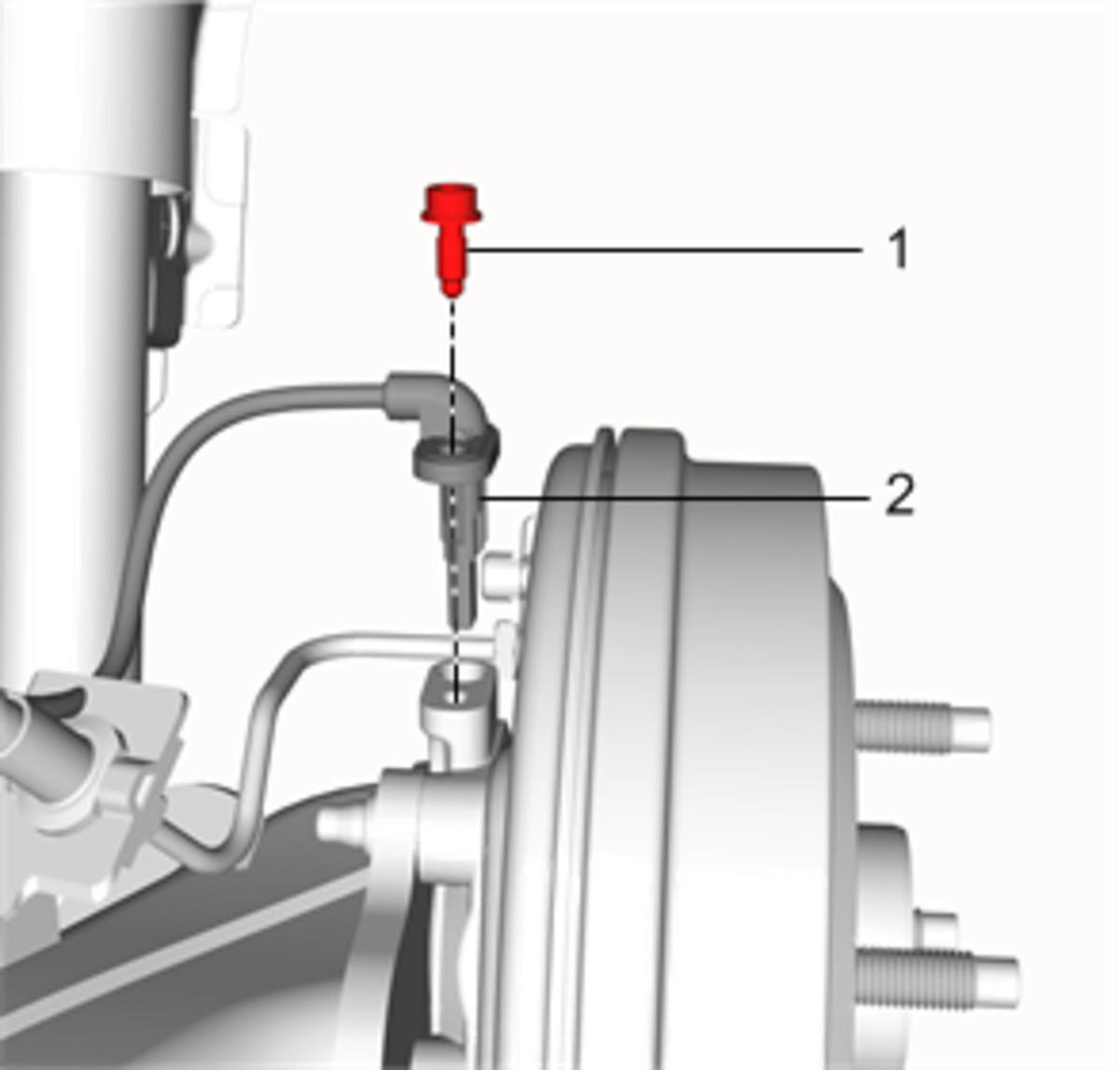

Install the rear wheel speed sensor (2) to the rear brake backing plate spacer.
- Install the rear wheel speed sensor bolt and tighten to 8 N.m (71 lb in).

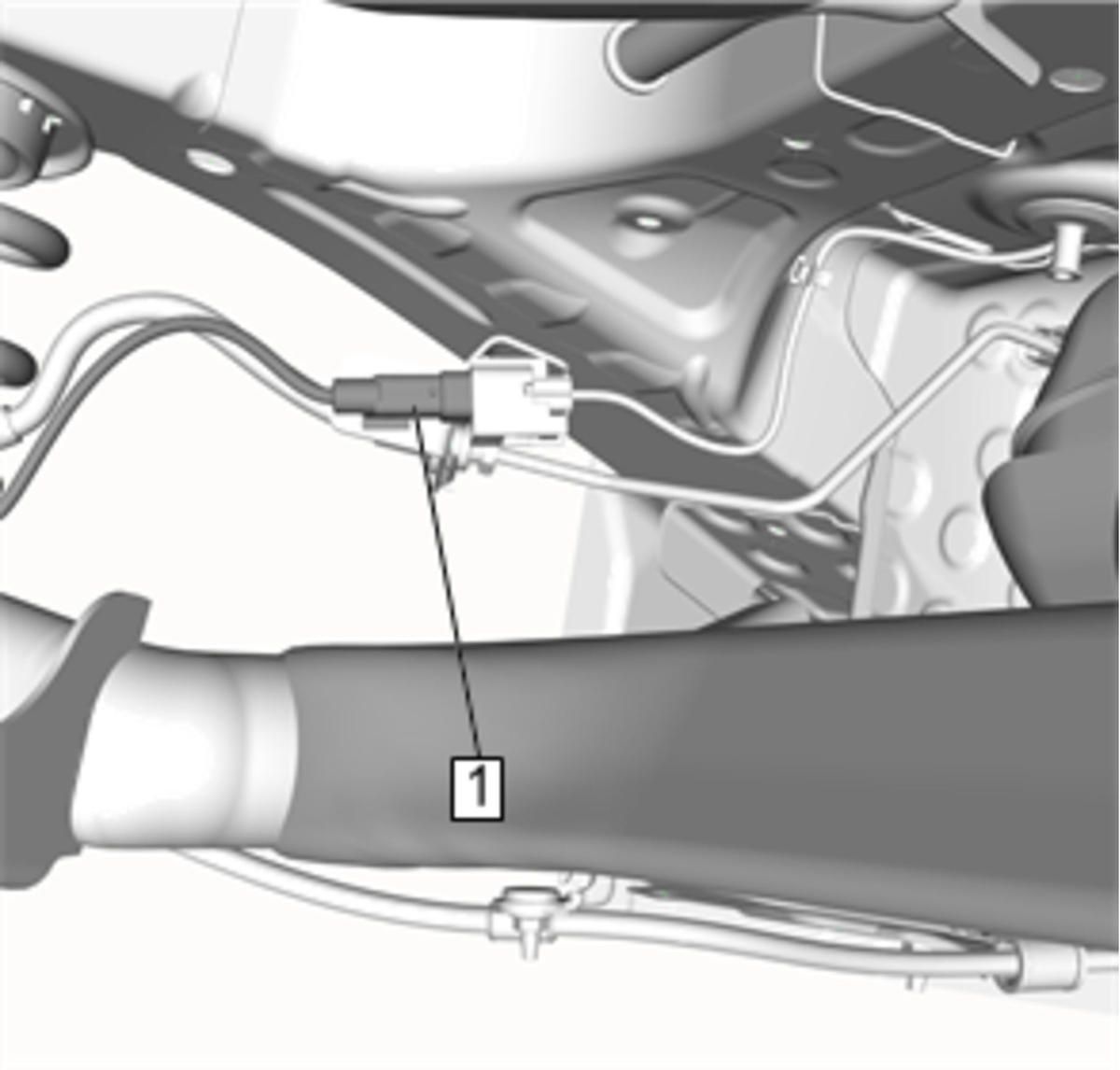

Connect the rear wheel speed sensor electrical connector (1) to the body wiring harness.

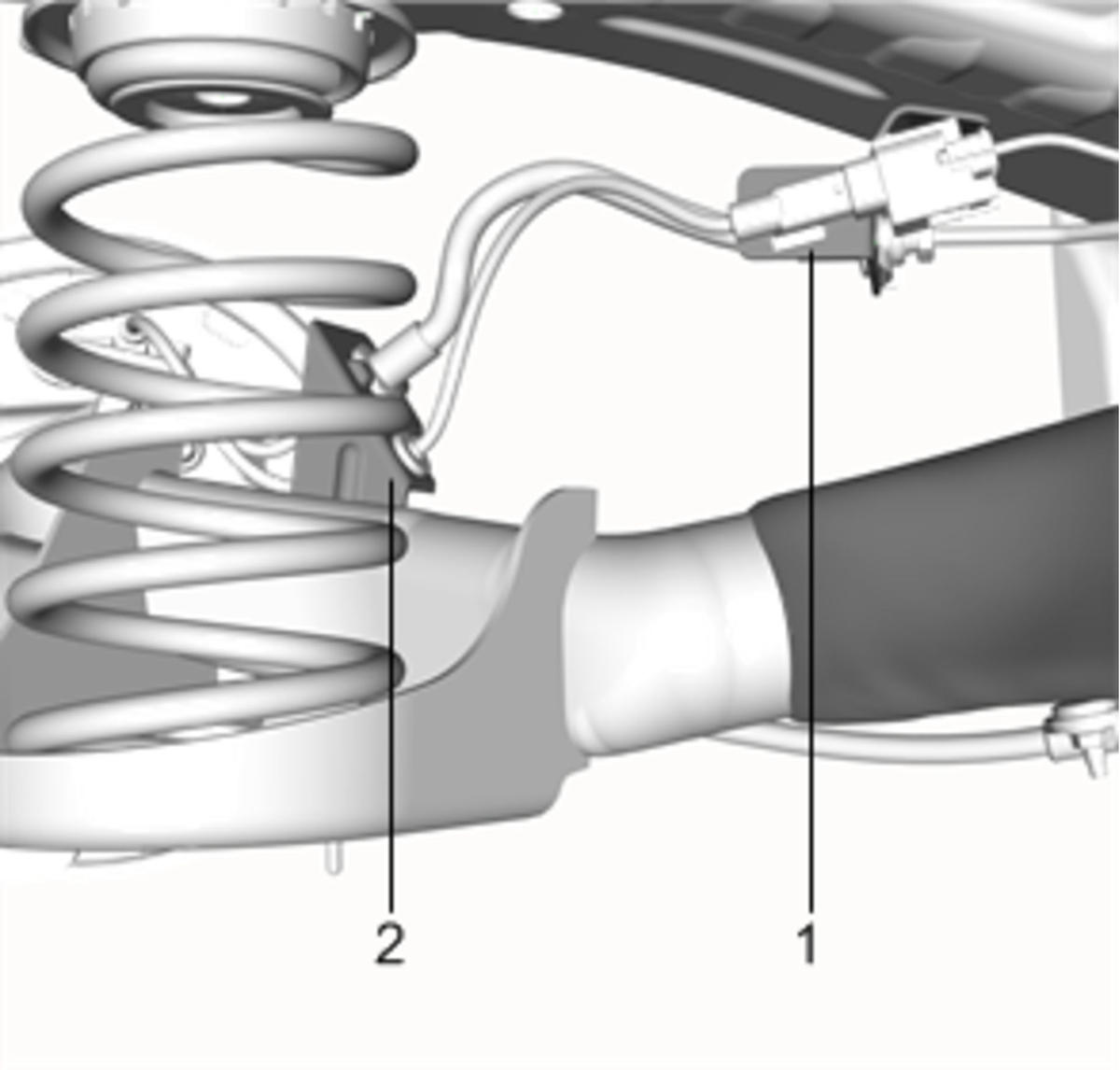

Attach the rear wheel speed sensor harness to the rear axle mounted bracket (2).
- Attach the rear wheel speed sensor harness to the body frame mounted bracket (1).
- Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
CAUTION:
Refer to Fastener Caution .
