Outside Rearview Mirror Remote Control Switch Replacement

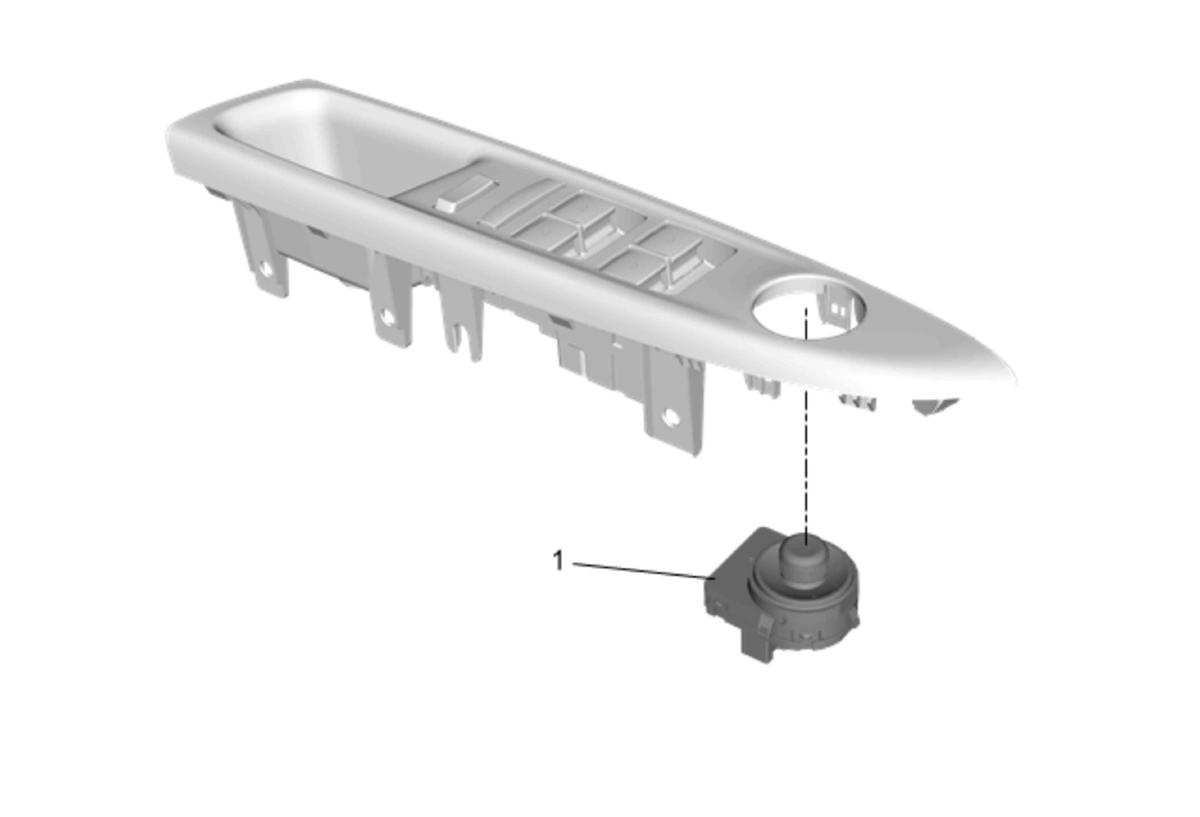

GM4025040Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement .
1 Outside Remote Control Rearview Mirror Switch Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up procedures.
