Liftgate Outside Handle Replacement

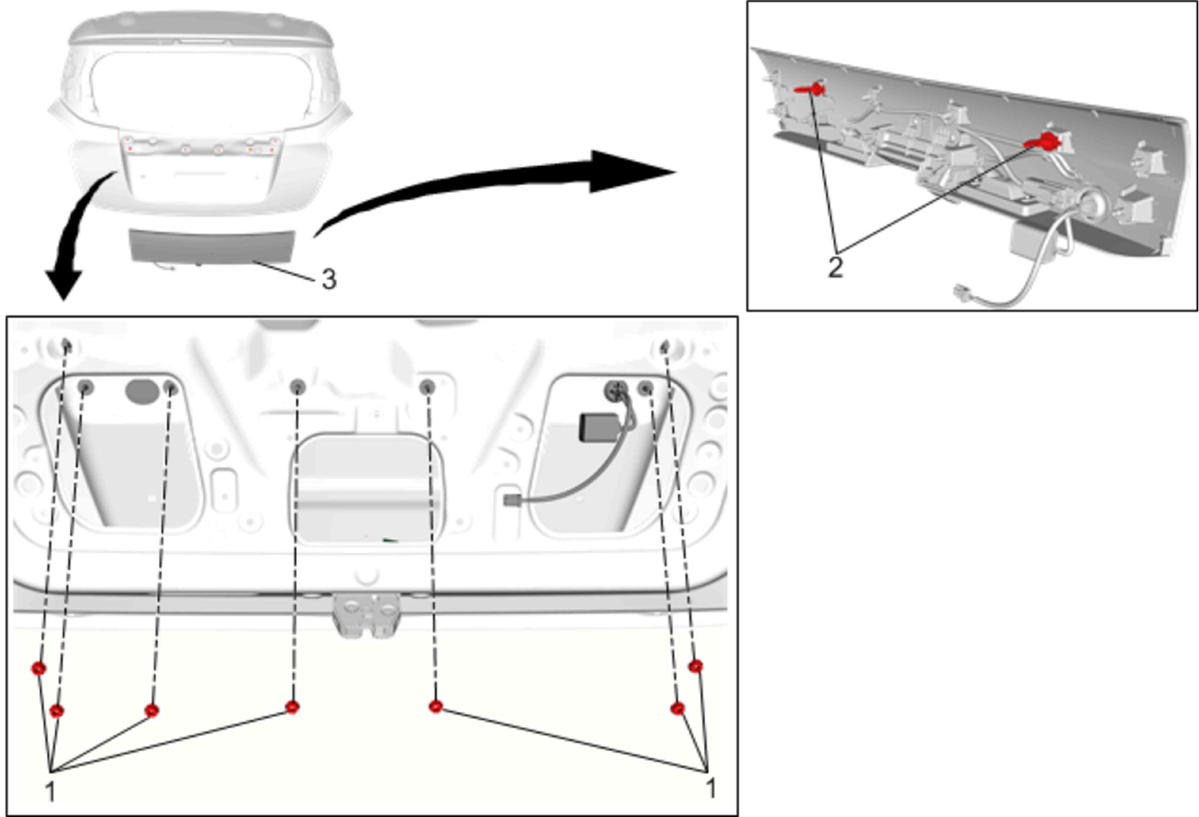

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement . |
|
| 1 | Liftgate Outside Handle Nut (Qty: 7)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Rear Closure Center Applique Clip (Qty : 2) Procedure Remove the clip and lift up the liftgate outside handle. |
| 3 | Liftgate Outside Handle Procedure Disconnect the license plate lamp electrical connector. |
