Door Lock Switch Replacement

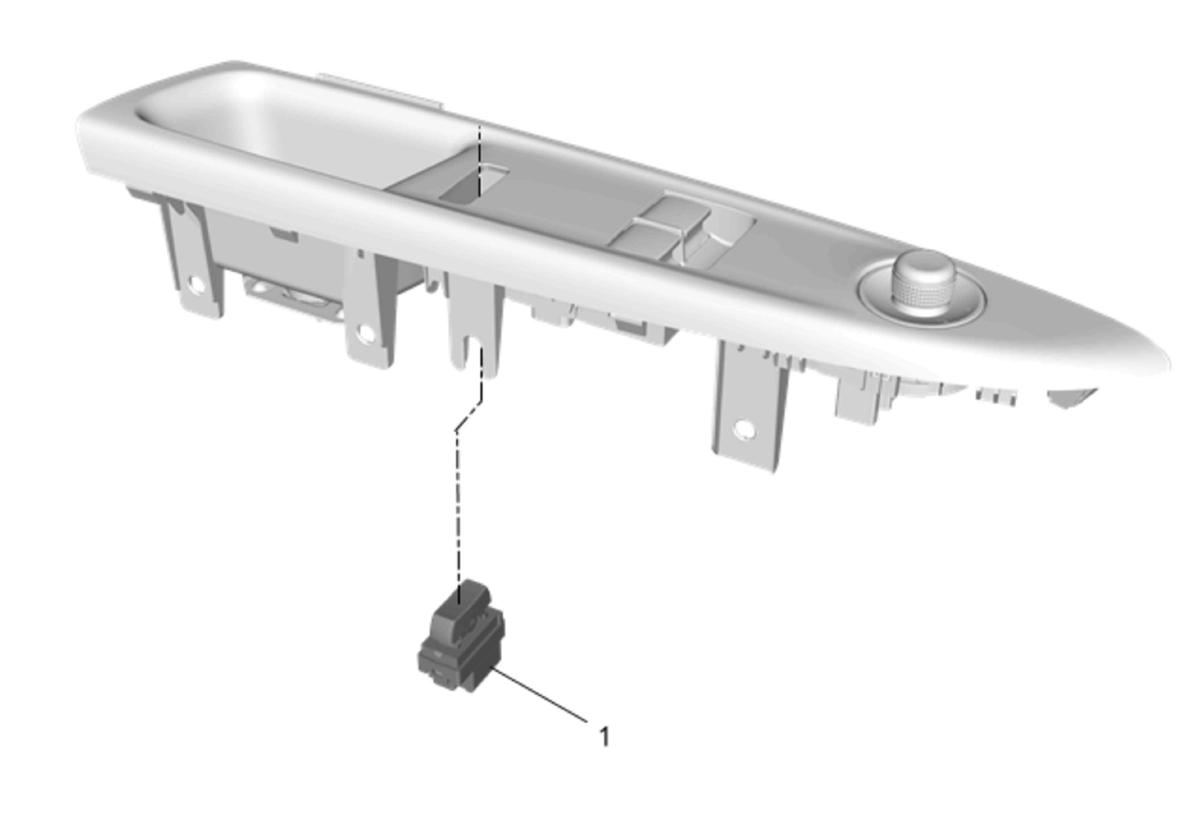

GM4025154Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement .
1 Door Lock Switch Driver Side Assembly

Procedure

  1. Release tabs on switch to remove from front side door armrest switch mount plate.
  2. Disconnect the electrical connector.
  3. Refer to Control Module References for programming and set up procedures.
