Fastener Specifications

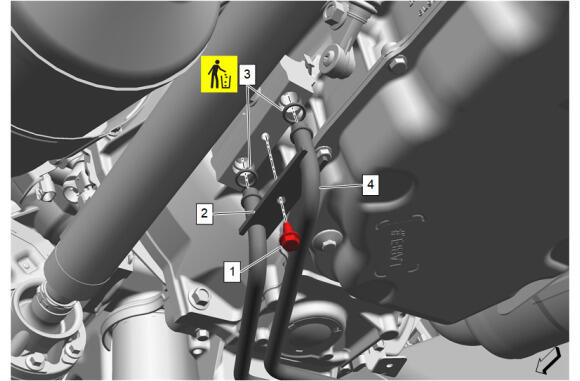

Transmission Cooling Components, L84 with MQE
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) |
| 2 | Transmission Fluid Cooler Pipe Retainer Mount Plate | - | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) |
| 3 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) |
| 4 | Transmission Fluid Cooler Inlet and Outlet Pipe | - | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) |
Transmission Cooling Components, L87 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) |
| 2 | Transmission Fluid Cooler Inlet and Outlet Pipe | - | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) |
| 3 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) |

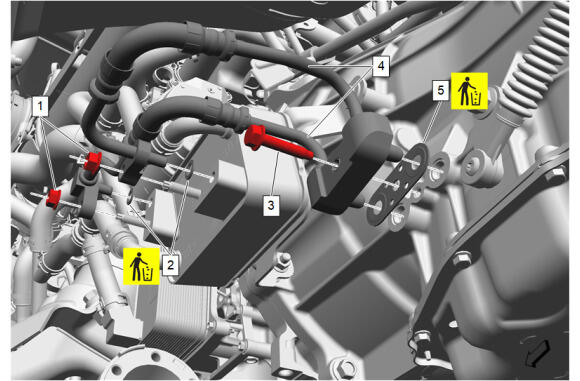

Transmission Cooling Components, L3B with MQE
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE) |
| 2 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE) |
| 3 | Transmission Fluid Cooler Pipe Bolt | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE) |
| 4 | Transmission Fluid Cooler Inlet and Outlet Pipe | - | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE) |
| 5 | Transmission Fluid Cooler Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE) |

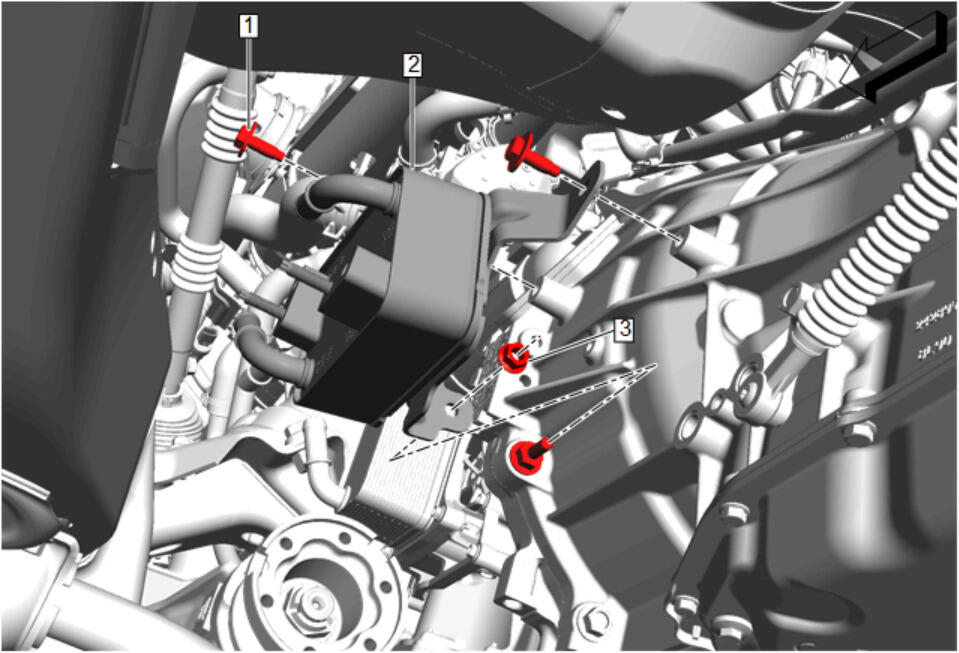

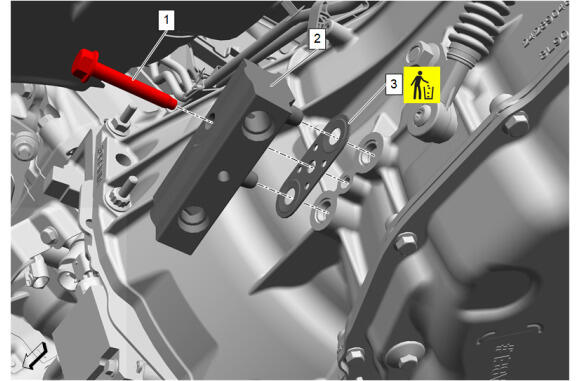

Transmission Cooling Components, L3B with MQE
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Fluid Cooling Exchanger Bolt | - | - | 22 N.m (16 lb ft) | Automatic Transmission Fluid Cooling Exchanger Replacement (with L3B/MQE) |
| 2 | Automatic Transmission Fluid Cooling Exchanger | - | - | - | Automatic Transmission Fluid Cooling Exchanger Replacement (with L3B/MQE) |
| 3 | Automatic Transmission Fluid Cooling Exchanger Nut | - | - | 22 N.m (16 lb ft) | Automatic Transmission Fluid Cooling Exchanger Replacement (with L3B/MQE) |

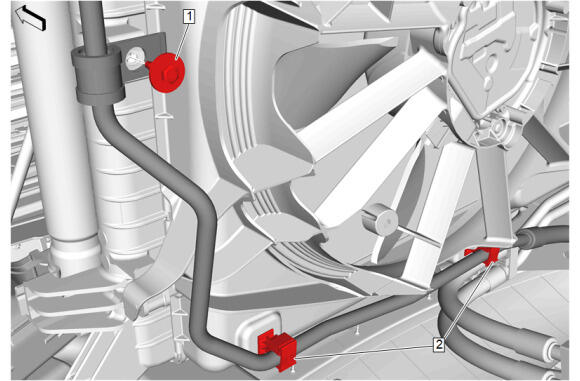

Transmission Cooling Components, LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB) |
| 2 | Transmission Fluid Cooler Pipe Bolt | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB) |
Transmission Cooling Components, LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Fluid Cooling Exchanger Bolt | - | - | 22 N.m (16 lb ft) | Automatic Transmission Fluid Cooling Exchanger Replacement (with LM2/MQB) |
| 2 | Automatic Transmission Fluid Cooling Exchanger Nut | - | - | 22 N.m (16 lb ft) | Automatic Transmission Fluid Cooling Exchanger Replacement (with LM2/MQB) |
Transmission Cooling Components, L84 with MQE, L87 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Auxiliary Cooler Pipe Bracket Nut | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) |
Transmission Cooling Components, L84 with MQE, L87 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) |
| 2 | Transmission Fluid Cooler Pipe Clip | - | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) |
Transmission Cooling Components, LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB) |
Transmission Cooling Components, LM2, MQC
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Thermal Bypass Valve Bolt | - | - | 9 N.m (80 lb in) | Engine Removal and Installation (2WD) , or Engine Removal and Installation (4WD) |

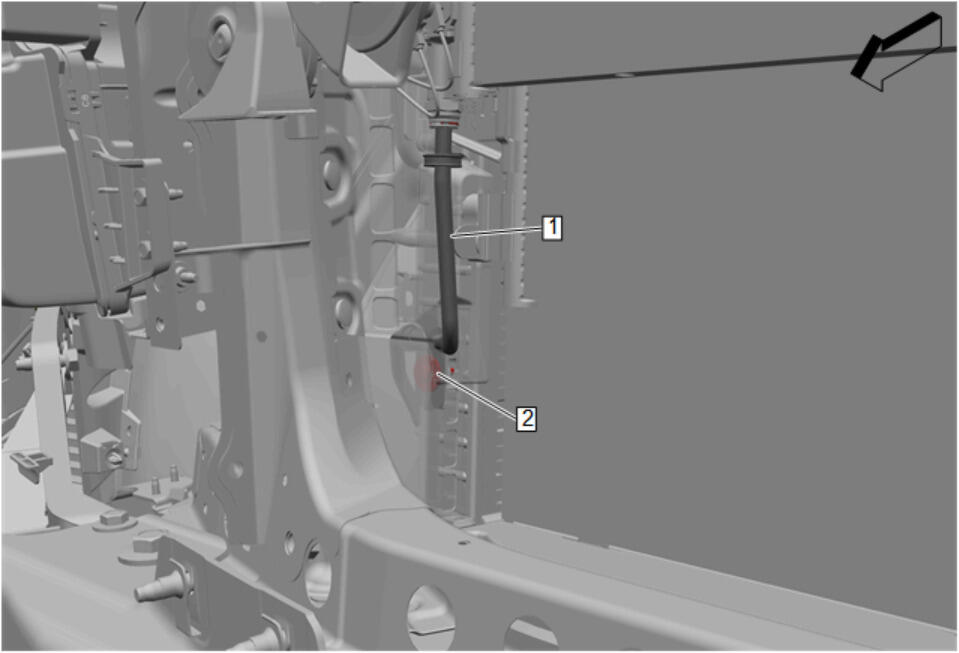

Transmission Cooling Components, L84 with MQE, L87/LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe | - | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB) |
| 2 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with MQB) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB) |
Transmission Cooling Components, L84 with MQE, L87/LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Auxiliary Cooler Bracket Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Auxiliary Cooler Replacement (MQE with L84) , or Transmission Fluid Auxiliary Cooler Replacement (MQB with LM2, L84, L87) |
Transmission Cooling Components, L84 with MQE
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Cooler Bypass Valve Bolt | - | - | 9 N.m (80 lb in) | Transmission Cooler Bypass Valve Replacement (with L84 and MQE) |
| 2 | Transmission Cooler Bypass Valve | - | - | - | Transmission Cooler Bypass Valve Replacement (with L84 and MQE) |
| 3 | Transmission Cooler Bypass Valve Seal | Yes | - | - | Transmission Cooler Bypass Valve Replacement (with L84 and MQE) |
Transmission Cooling Components, LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Cooler Bypass Valve Replacement (with LM2 and MQB) |
Transmission Cooling Components, LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Cooler Bypass Valve Replacement (with LM2 and MQB) |
Transmission Cooling Components, LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 9 N.m (80 lb in) | Transmission Cooler Bypass Valve Replacement (with LM2 and MQB) |
| 2 | Transmission Fluid Cooler Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Cooler Bypass Valve Replacement (with LM2 and MQB) |

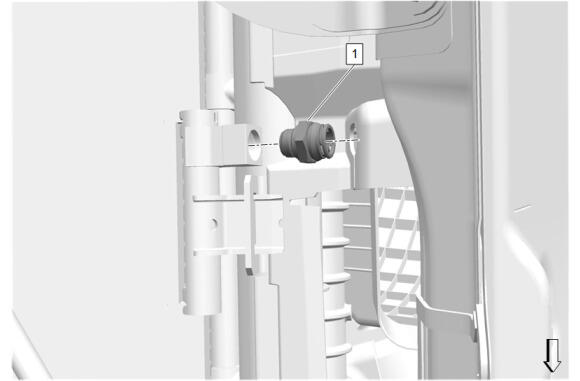

Transmission Cooling Components, L84 with MQE, L87/LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Connector | - | - | 20 N.m (15 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement - Auxiliary Cooler |

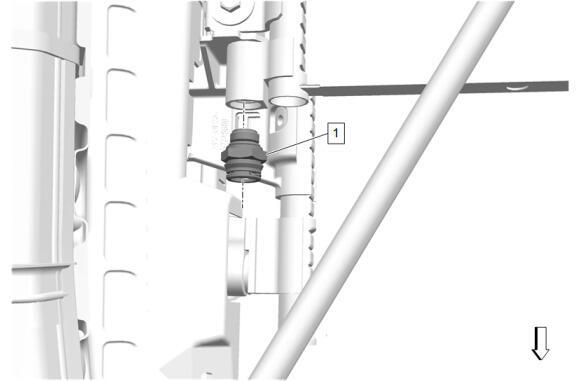

Transmission Cooling Components, L84 with MQE, L87/LM2 with MQB
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Connector | - | - | 20 N.m (15 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement - Auxiliary Cooler |
