Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

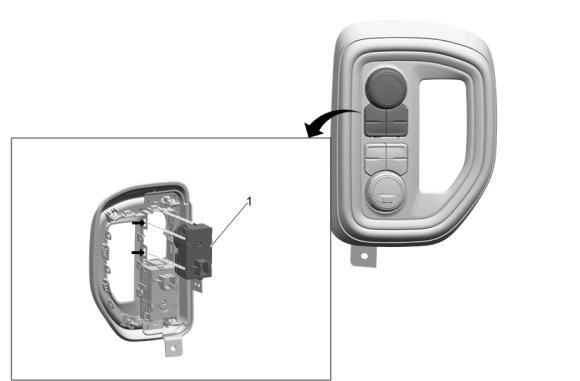

Ride Control Switch (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Connect all electrical connectors.

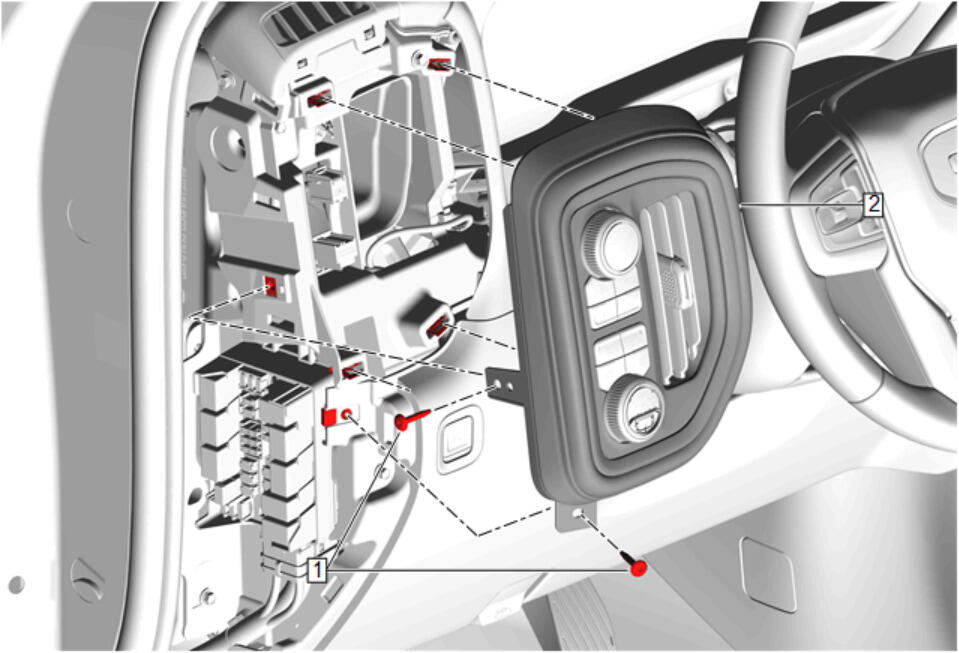

Instrument Panel Trim Pad (2) - Install

CAUTION:

Refer to Fastener Caution .

Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

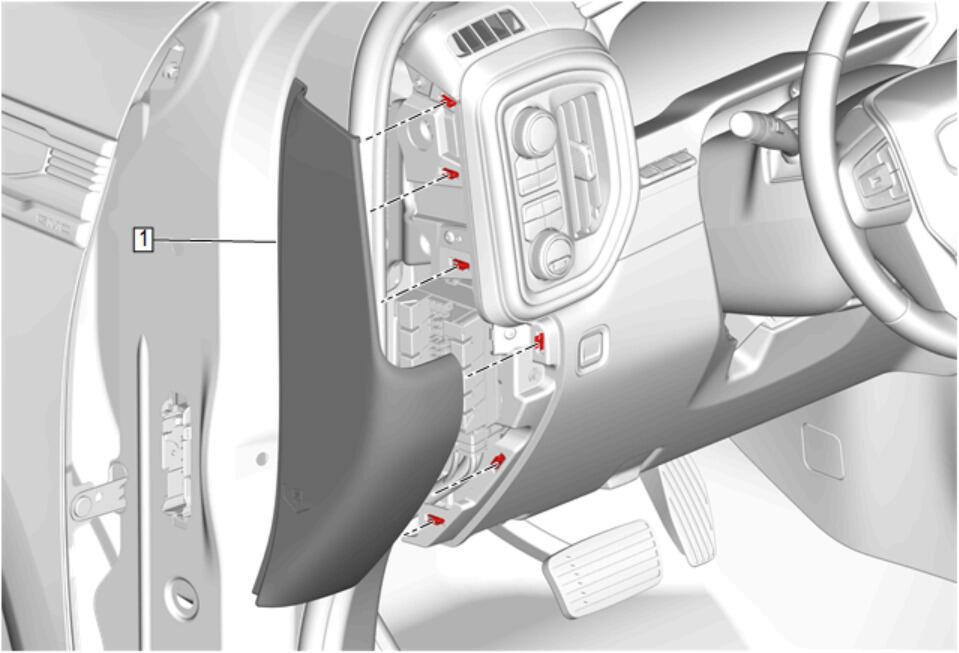

Instrument Panel Fuse Block Access Hole Cover (1) - Install
Replace the front side door weatherstrip to cover the edge of the cover.
