Fastener Specifications
WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

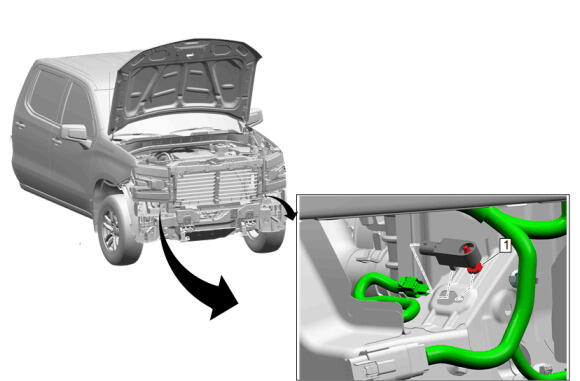

Callouts in the following chart represent components shown in graphic above.
Airbag Front End Discriminating Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Front End Discriminating Sensor Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Airbag Sensing and Diagnostic Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Sensing and Diagnostic Module Nut [3x] | - | - | 9 N.m (80 lb in) | Restraints Control Module Replacement (with Front Floor Console) , or Restraints Control Module Replacement (without Front Floor Console) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Seat Belt Retractor and Tensioner
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Seat Outboard Seat Back Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Side Airbag Nut [2x] | - | - | 3.75 N.m (33 lb in) | Front Seat Back Cover and Pad Removal and Installation (Power) , or Front Seat Back Cover and Pad Removal and Installation (Manual) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Roof Rail Airbag and Side Impact Sensors
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Airbag Bolt [10x] | - | - | 9 N.m (80 lb in) | Front and Rear Row Roof Rail Airbag Replacement |
| 2 | Airbag Side Impact Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Sensor Replacement |
| 3 | Airbag Side Impact Rear Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Rear Sensor Replacement (Crew Cab) , or Airbag Side Impact Rear Sensor Replacement (Double Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Steering Wheel Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [2x] | - | - | 9 N.m (80 lb in) | Steering Wheel Airbag Replacement |
