Fastener Specifications
WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.

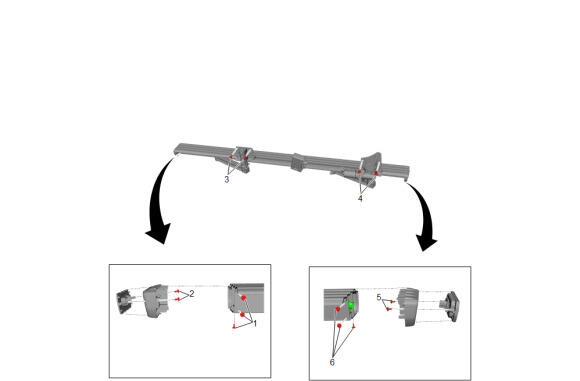

Assist Step Assembly (Motor Upper Mount, Idler Arm Upper Mount, Switch)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Assist Step Finish Cap Screw [3x] | - | - | 5 N.m (44 lb in) | Assist Step Switch Replacement (BRS) |
| 2 | Assist Step Switch Screw [2x] | - | - | 5 N.m (44 lb in) | Assist Step Switch Replacement (BRS) |
| 3 | Assist Step Bolt [2x] | - | - | 22 N.m (16 lb ft) | Assist Step Replacement - Right Side (BRS) |
| 4 | Assist Step Bolt [2x] | - | - | 22 N.m (16 lb ft) | Assist Step Replacement - Right Side (BRS) |
| 5 | Assist Step Finish Cover Screw [2x] | - | - | 5 N.m (44 lb in) | Assist Step Front Finish Cap Replacement (BRS) |
| 6 | Assist Step Front Finish Cap Screw | - | - | 5 N.m (44 lb in) | Assist Step Front Finish Cap Replacement (BRS) |

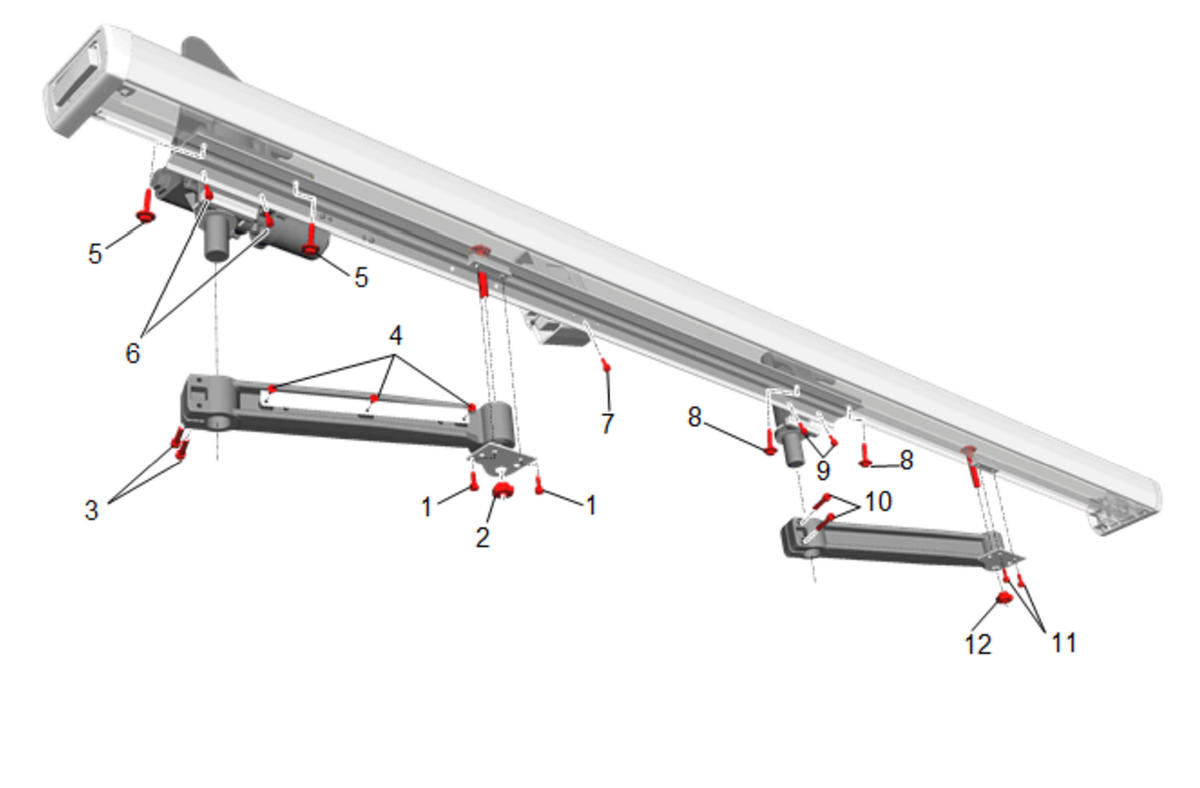

Assist Step Assembly (Control Module Bracket, Front Extension, Motor, Rear Extension)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Assist Step Bracket Bolt [2x] | - | - | 12 N.m (106 lb in) | Assist Step Rear Extension Replacement (BRS) |
| 2 | Assist Step Support Nut | - | - | 22 N.m (16 lb ft) | Assist Step Rear Extension Replacement (BRS) |
| 3 | Assist Step Support Bolt [2x] | - | - | 18 N.m (13 lb ft) | Assist Step Rear Extension Replacement (BRS) |
| 4 | Assist Step Shield Bolt [3x] | - | - | 5 N.m (44 lb in) | Assist Step Rear Extension Replacement (BRS) |
| 5 | Assist Step Bolt [2x] | - | - | 22 N.m (16 lb ft) | Assist Step Motor Replacement (BRS) |
| 6 | Assist Step Bracket Bolt [2x] | - | - | 12 N.m (106 lb in) | Assist Step Motor Replacement (BRS) |
| 7 | Assist Step Bracket Bolt | - | - | 12 N.m (106 lb in) | Assist Step Control Module Bracket Replacement (BRS) |
| 8 | Assist Step Bolt [2x] | - | - | 22 N.m (16 lb ft) | Assist Step Control Module Bracket Replacement (BRS) |
| 9 | Assist Step Bracket Bolt [2x] | - | - | 12 N.m (106 lb in) | Assist Step Control Module Bracket Replacement (BRS) |
| 10 | Assist Step Support Bolt [2x] | - | - | 18 N.m (13 lb ft) | Assist Step Control Module Bracket Replacement (BRS) |
| 11 | Assist Step Bracket Bolt [2x] | - | - | 12 N.m (106 lb in) | Assist Step Control Module Bracket Replacement (BRS) |
| 12 | Assist Step Support Nut | - | - | 22 N.m (16 lb ft) | Assist Step Control Module Bracket Replacement (BRS) |

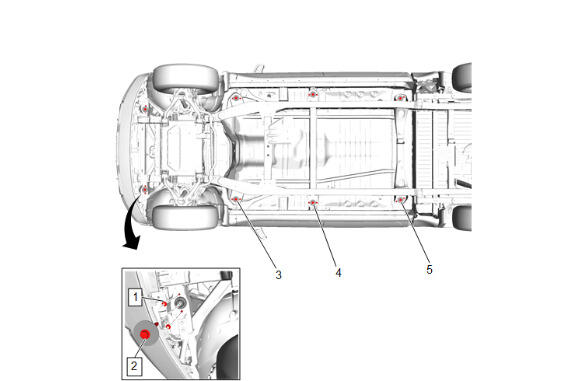

Body Mount Cushions
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Mount Nut [16x] | - | - | 43 N.m (32 lb ft) | Body Upgrade Mount Replacement (Extended Cab, Crew Cab) , or Body Upgrade Mount Replacement (Regular Cab) |
| 2 | Body Mount Bolt [2x] | - | Yes | 165 N.m (122 lb ft) | Body Upgrade Mount Replacement (Extended Cab, Crew Cab) , or Body Upgrade Mount Replacement (Regular Cab) |
| 3 | Body Mount Bolt [2x] | - | Yes | 165 N.m (122 lb ft) | Body Mount Upper Location Number 1 Cushion Replacement (Extended Cab, Crew Cab) , or Body Mount Upper Location Number 1 Cushion Replacement (Regular Cab) |
| 4 | Body Mount Bolt [2x] | - | Yes | 165 N.m (122 lb ft) | Body Mount Upper Location Number 2 Cushion Replacement (Extended Cab, Crew Cab) , or Body Mount Upper Location Number 2 Cushion Replacement (Regular Cab) |
| 5 | Body Mount Bolt [2x] | - | Yes | 165 N.m (122 lb ft) | Body Mount Upper Location Number 3 Cushion Replacement (Extended Cab, Crew Cab) |

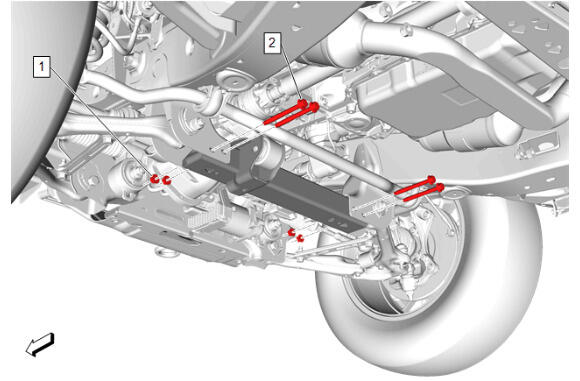

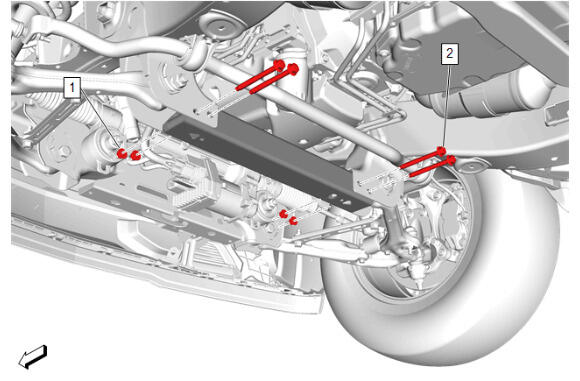

Drivetrain and Front Suspension Frame Front Crossmember (2WD)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drivetrain and Front Suspension Frame Reinforcement Nut | - | - | First Pass:75 N.m (55 lb ft) Final Pass:90 degrees- 105 degrees |
Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD) |
| 2 | Drivetrain and Front Suspension Frame Reinforcement Bolt | - | - | - | Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD) |
Drivetrain and Front Suspension Frame Front Crossmember (4WD)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drivetrain and Front Suspension Frame Reinforcement Nut | - | - | First Pass:75 N.m (55 lb ft) Final Pass:90 degrees- 105 degrees |
Drivetrain and Front Suspension Frame Front Crossmember Replacement (4WD) |
| 2 | Drivetrain and Front Suspension Frame Reinforcement Bolt | - | - | - | Drivetrain and Front Suspension Frame Front Crossmember Replacement (4WD) |

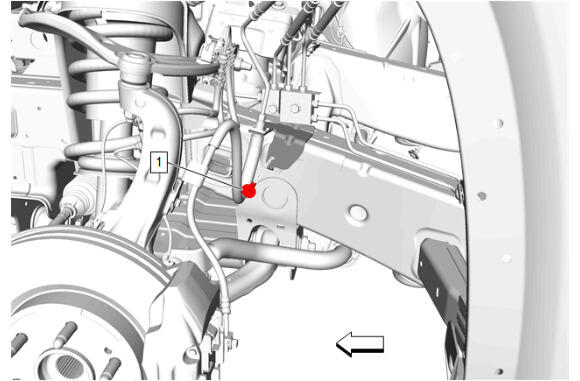

Front Brake Hose Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Brake Hose Bracket Bolt | - | - | 9 N.m (80 lb in) | Body Upgrade Mount Replacement (Extended Cab, Crew Cab) , or Body Upgrade Mount Replacement (Regular Cab) |

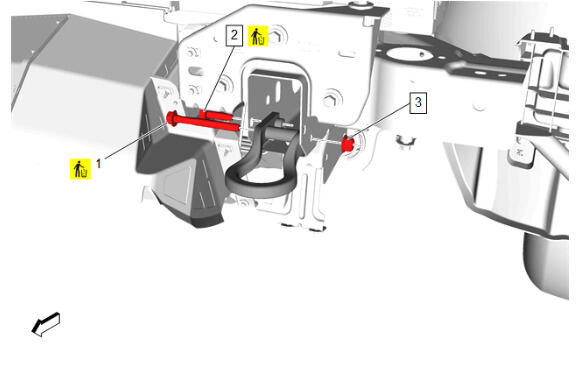

Front Tow Hook
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Tow Hook Bolt | Yes | - | First Pass:75 N.m (55 lb ft) Final Pass:60 degrees- 75 degrees |
Front Tow Hook Replacement |
| 2 | Front Tow Hook Bolt | Yes | - | First Pass:75 N.m (55 lb ft) Final Pass:90 degrees- 105 degrees |
Front Tow Hook Replacement |
| 3 | Front Tow Hook Nut | - | - | - | Front Tow Hook Replacement |

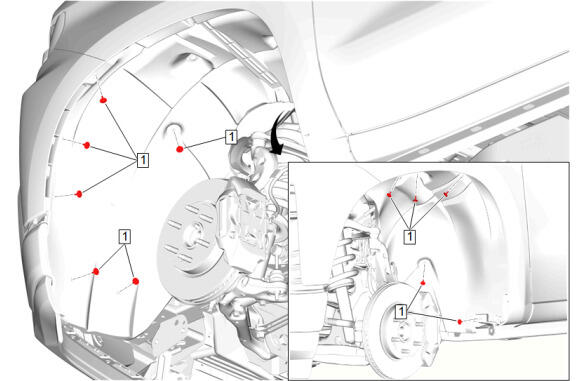

Front Wheelhouse Liner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheelhouse Liner Bolt [11x] | - | - | 2.5 N.m (22 lb in) | Front Wheelhouse Liner Replacement |

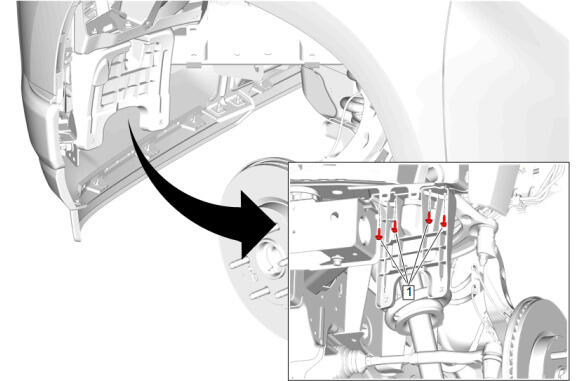

Front Wheelhouse Liner Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheelhouse Liner Bolt [4x] | - | - | 9 N.m (80 lb in) | Front Wheelhouse Liner Bracket Replacement |

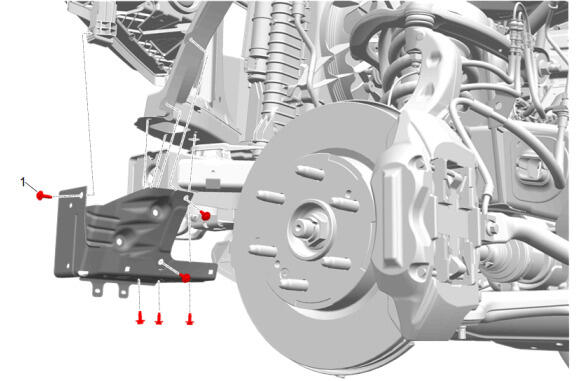

Front Wheelhouse Panel Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheelhouse Front Panel Bolt [6x] | - | - | 9 N.m (80 lb in) | Front Wheelhouse Panel Bracket Replacement |

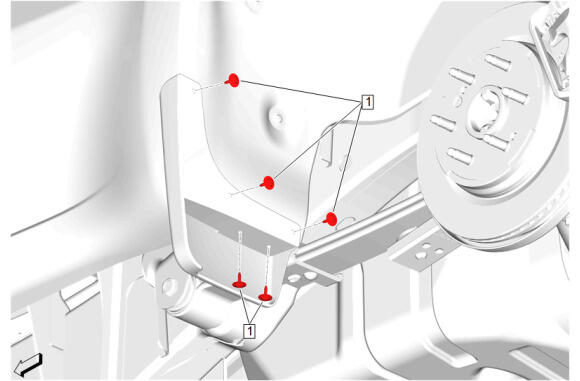

Rear Tire Front Air Deflector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Tire Front Air Deflector Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Rear Tire Front Air Deflector Replacement |

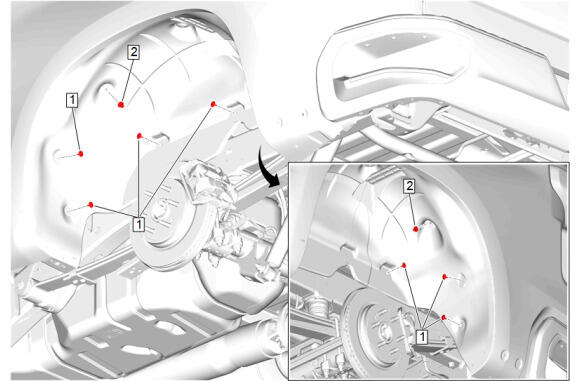

Rear Wheelhouse Liner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheelhouse Liner Bolt [7x] | - | - | 2.5 N.m (22 lb in) | Rear Wheelhouse Liner Replacement |
| 2 | Rear Wheelhouse Liner Nut [2x] | - | - | 2.5 N.m (22 lb in) | Rear Wheelhouse Liner Replacement |

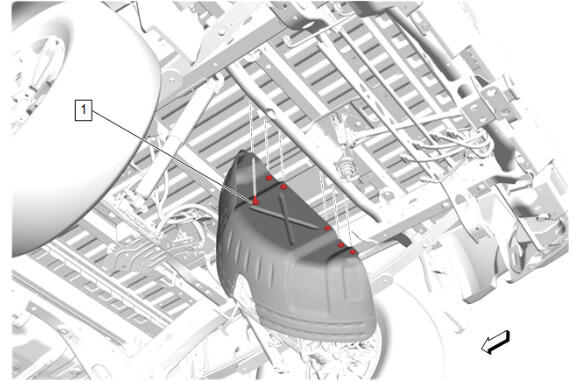

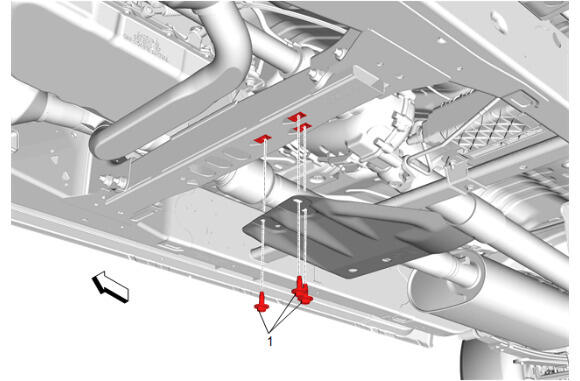

Spare Wheel Heat Shield (Dual Exhaust)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Spare Wheel Heat Shield Bolt [6x] | - | - | 22 N.m (16 lb ft) | Spare Wheel Heat Shield Replacement (Dual Exhaust) |
Spare Wheel Heat Shield (Single Exhaust)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Spare Wheel Heat Shield Bolt [3x] | - | - | 22 N.m (16 lb ft) | Spare Wheel Heat Shield Replacement (Single Exhaust) |
Steering Gear Skid Shield (without NZZ)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Skid Shield Bolt [2x] | - | - | 22 N.m (16 lb ft) | Steering Gear Skid Shield Replacement (without NZZ) |

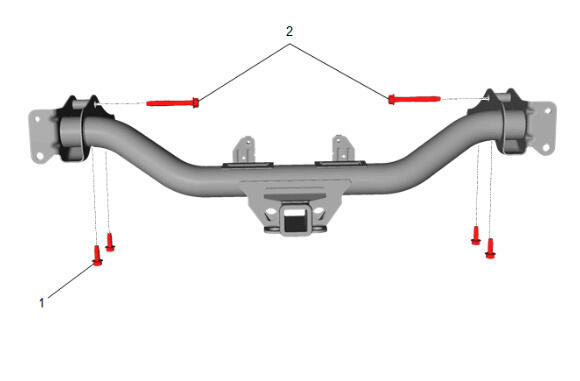

Trailer Hitch Platform
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Hitch Platform Bolt [4x] | - | Yes | 160 N.m (118 lb ft) | Trailer Hitch Platform Replacement |
| 2 | Trailer Hitch Platform Bolt [2x] | - | - | 160 N.m (118 lb ft) | Trailer Hitch Platform Replacement |

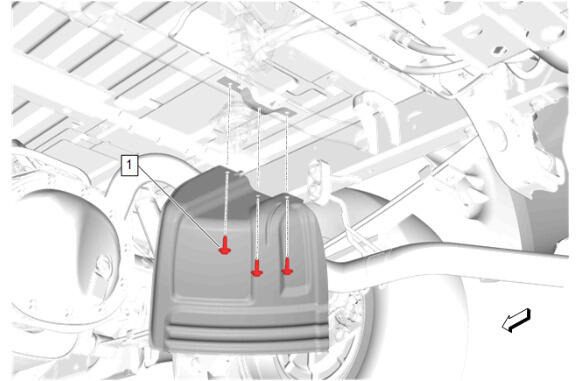

Transfer Case Skid Shield
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transfer Case Skid Shield Bolt [3x] | - | - | 58 N.m (43 lb ft) | Transfer Case Skid Shield Replacement |
Transmission Support Crossmember (2WD)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Support Crossmember Nut [4x] | - | - | 115 N.m (85 lb ft) | Transmission Support Crossmember Replacement (2WD) , or Transmission Support Crossmember Replacement (LM2 - 2WD) |
| 2 | Transmission Support Crossmember Bolt [4x] | - | - | - | Transmission Support Crossmember Replacement (2WD) , or Transmission Support Crossmember Replacement (LM2 - 2WD) |
Transmission Support Crossmember (4WD)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Support Crossmember Nut [4x] | - | - | 115 N.m (85 lb ft) | Transmission Support Crossmember Replacement (4WD) , or Transmission Support Crossmember Replacement (LM2 - 4WD) |
| 2 | Transmission Support Crossmember Bolt [4x] | - | - | - | Transmission Support Crossmember Replacement (4WD) , or Transmission Support Crossmember Replacement (LM2 - 4WD) |

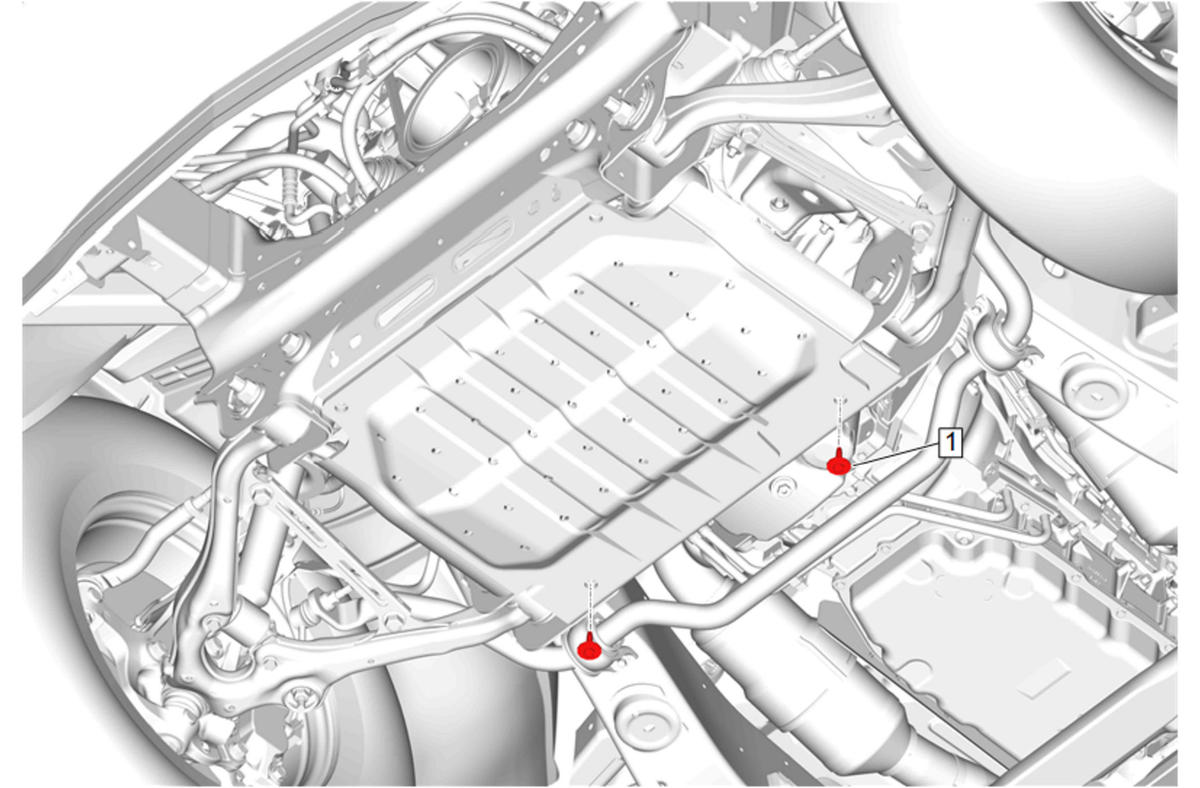

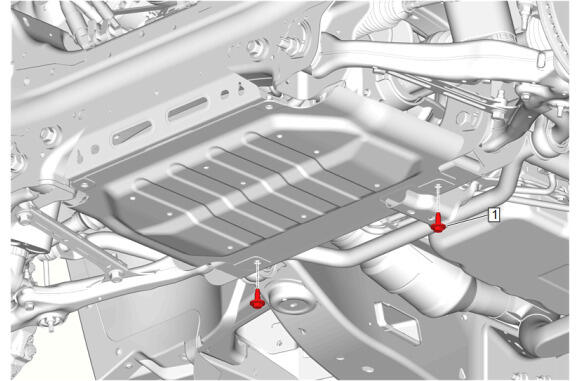

Underbody Skid Shield (with NZZ)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Underbody Skid Shield Bolt [2x] | - | - | 22 N.m (16 lb ft) | Underbody Skid Shield Replacement (with NZZ) |

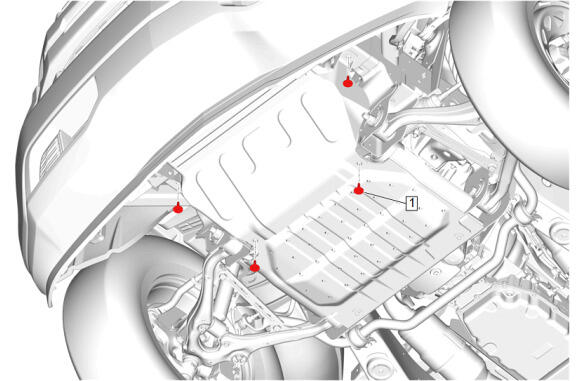

Underbody Splash Shield
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Underbody Splash Shield Bolt [4x] | - | - | 22 N.m (16 lb ft) | Underbody Splash Shield Replacement |
