Fastener Specifications
WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.

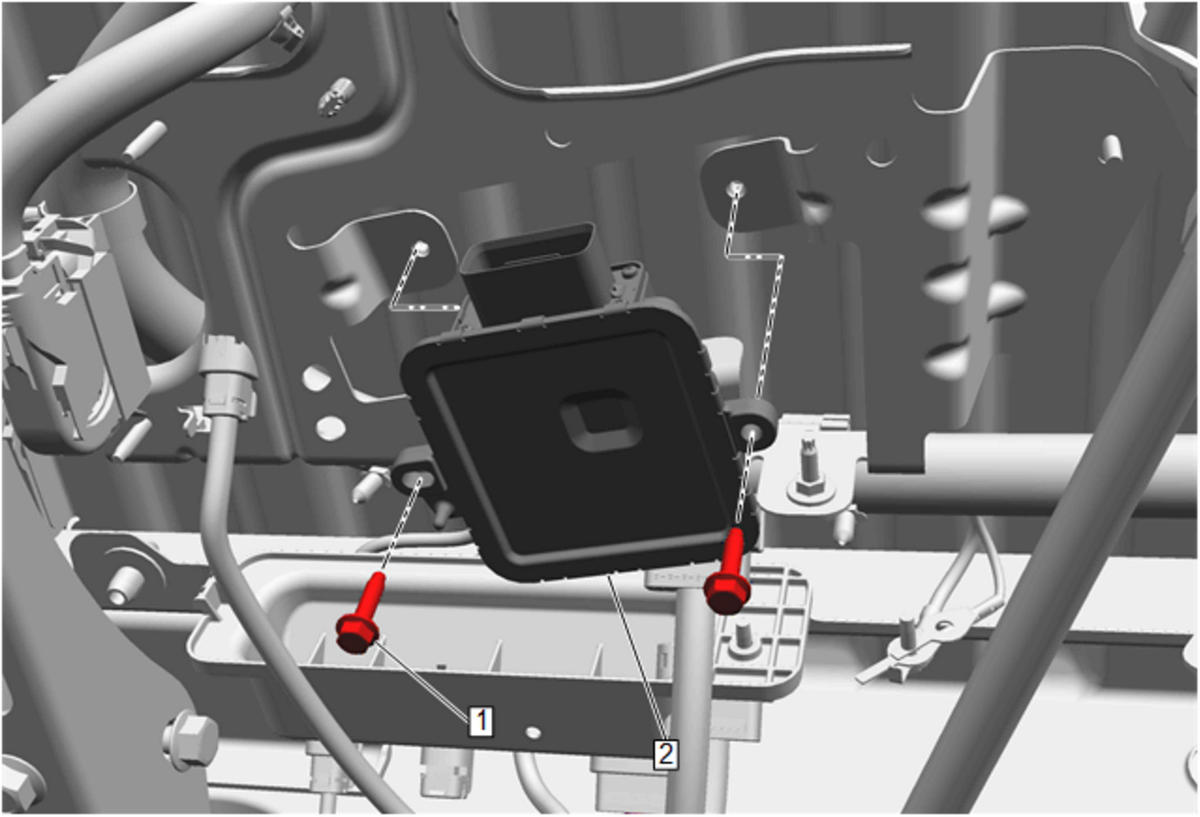

Control Module Fasteners
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Brake Power Control Module Bolt [2x] | - | - | 9 N.m (80 lb in) | Trailer Brake Control Module Replacement |
