Removal Procedure
WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Prepare the trailer brake control module for removal. Control Module References
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (with KL9) , or Battery Negative Cable Disconnection and Connection (without KL9)
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Lower and reposition the spare tire.

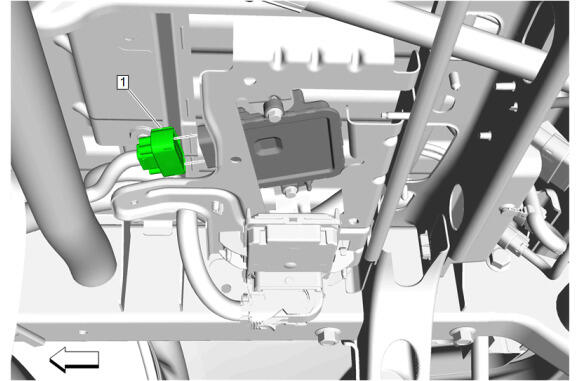

Electrical Connector (1) @Trailer Brake Control Module - Disconnect

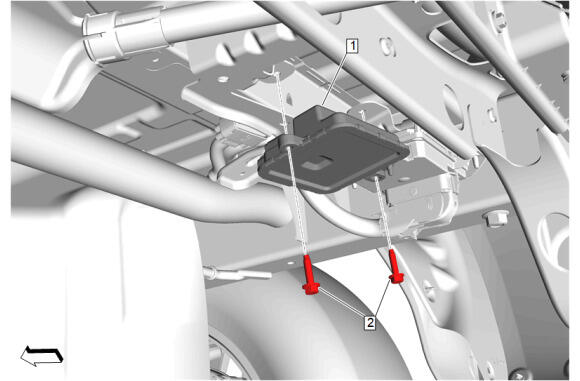

Trailer Brake Power Control Module Bolt (2) - Remove [2x]
- Trailer Brake Control Module (1) - Remove
