Installation Procedure

WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

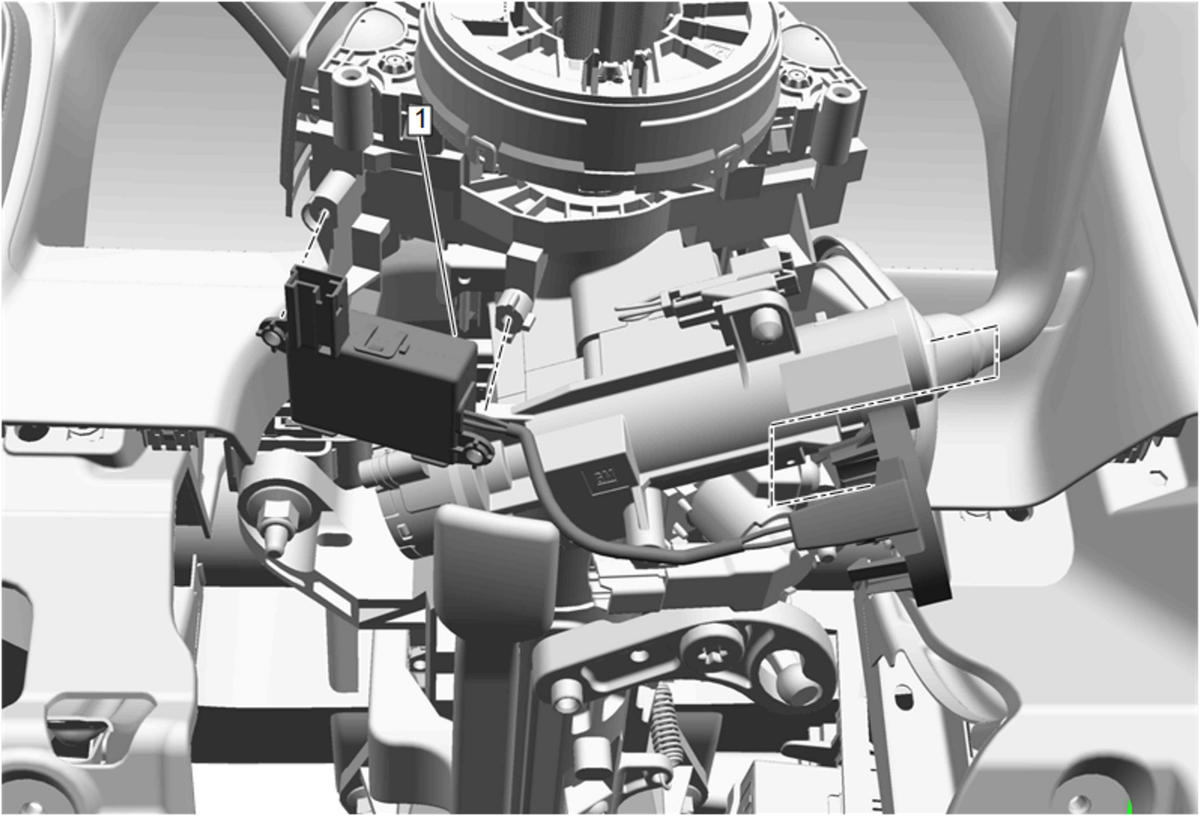

Theft Deterrent Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Ensure the theft deterrent module retaining tabs (1) are fully seated.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

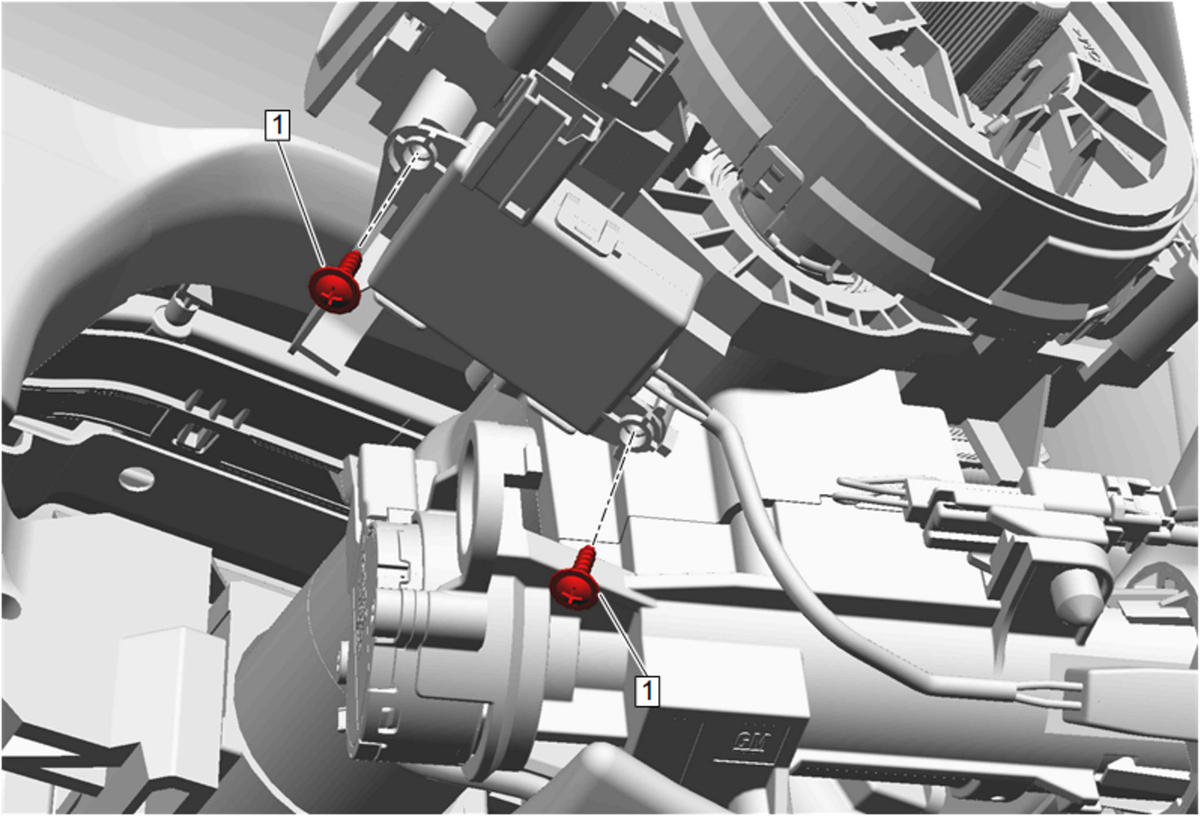

Theft Deterrent Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

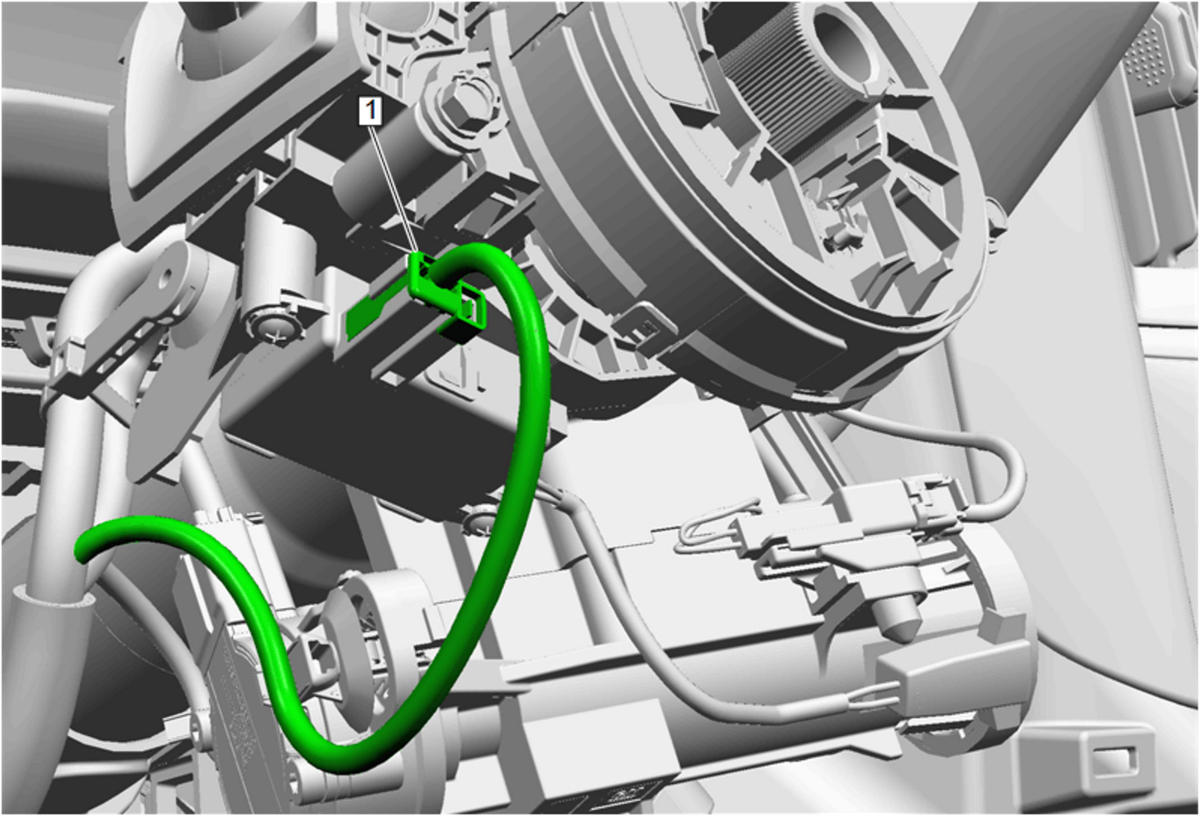

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Maneuver the instrument panel steering column lower trim cover around the steering column tilt and telescoping lever as necessary.

Position the instrument panel steering column lower trim cover (1) on the steering column.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

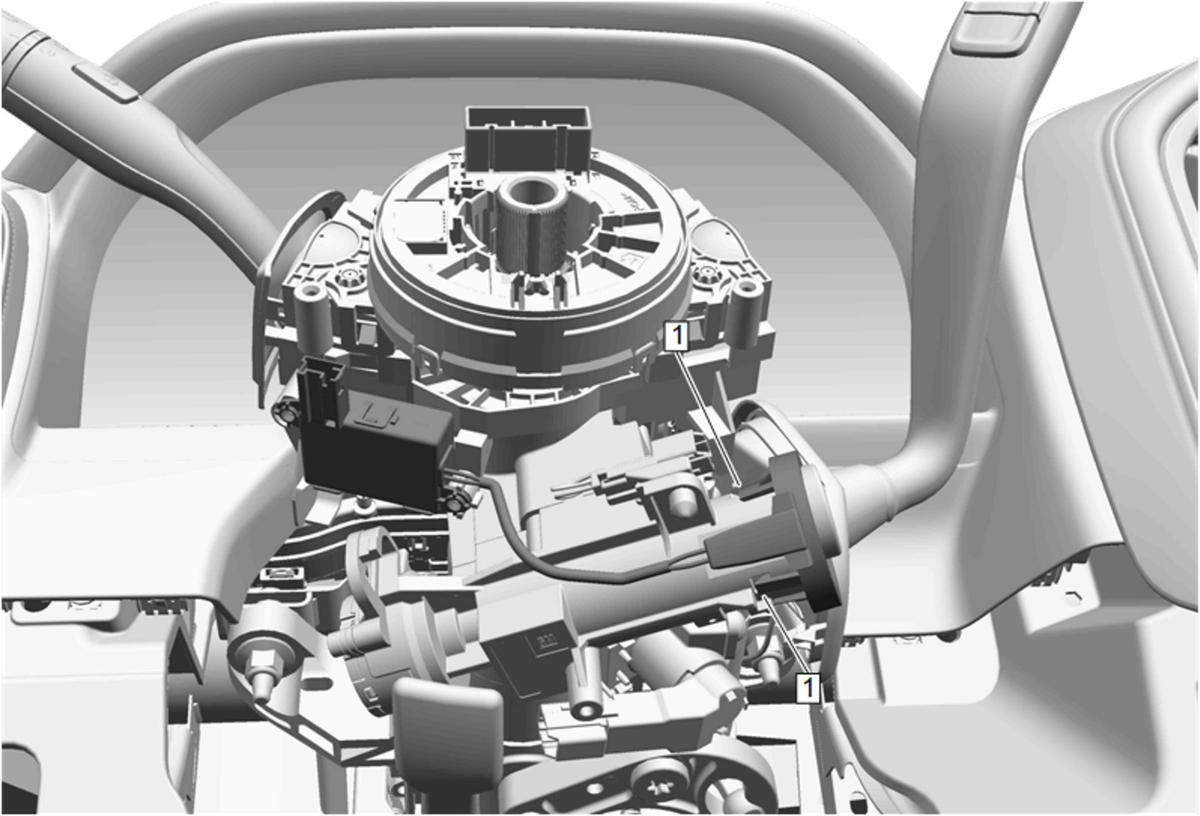

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Turn the steering wheel approximately 90 degrees to the right of the centered position.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Turn the steering wheel approximately 90 degrees to the left of the centered position.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Turn the steering wheel to the centered position.
Courtesy of GENERAL MOTORS COMPANY

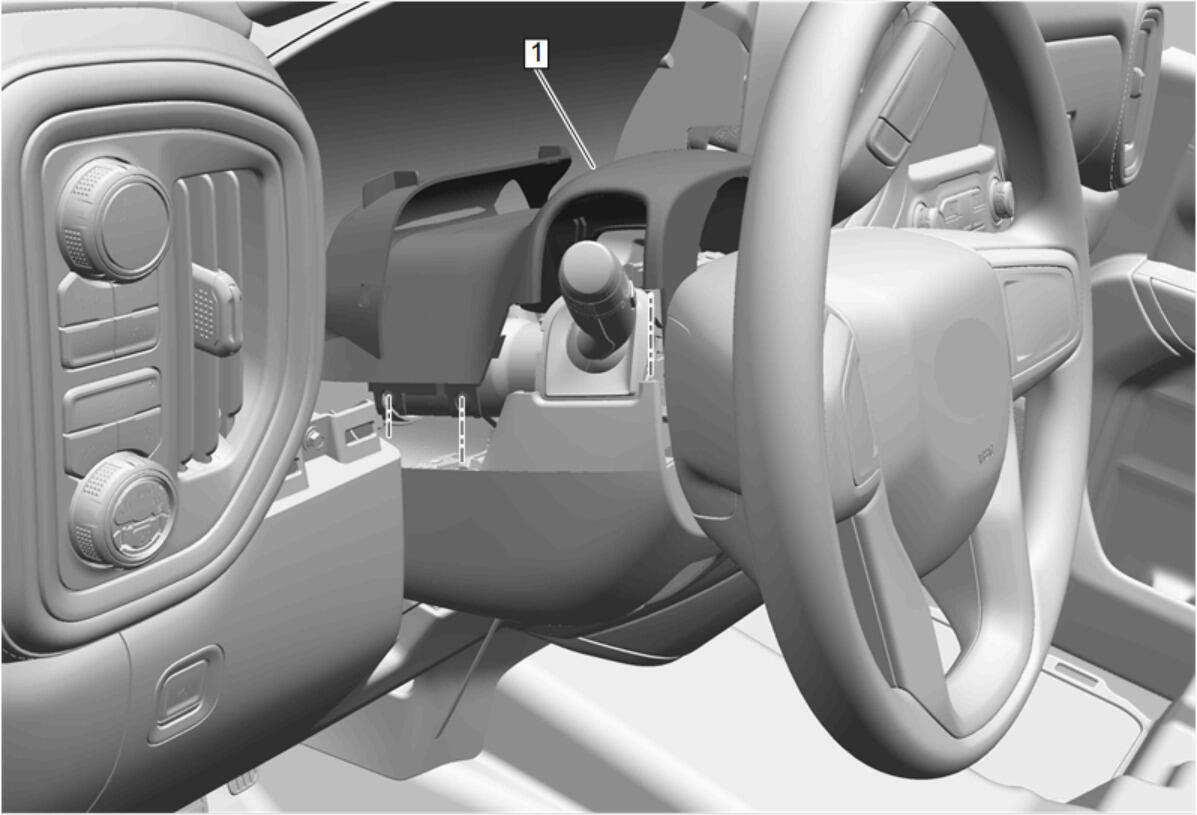

Install the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Connect the electrical connector.

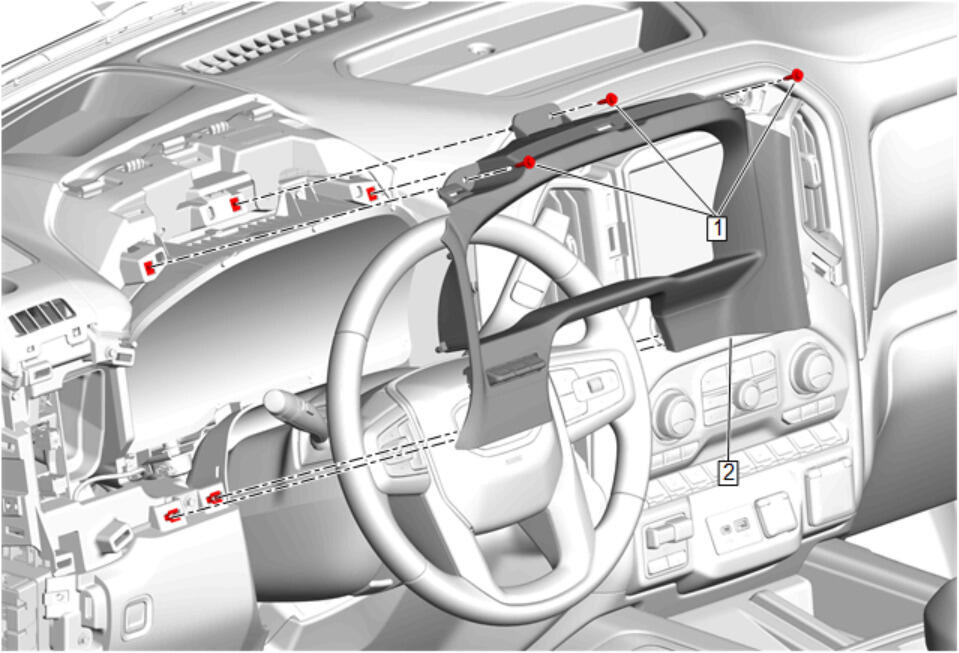

Clip the instrument panel cluster trim plate (2) to the instrument panel steering column upper trim cover.
Instrument Panel Cluster Trim Plate (2) - Install
Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Instrument Cluster Hood (1) - Install
Courtesy of GENERAL MOTORS COMPANY

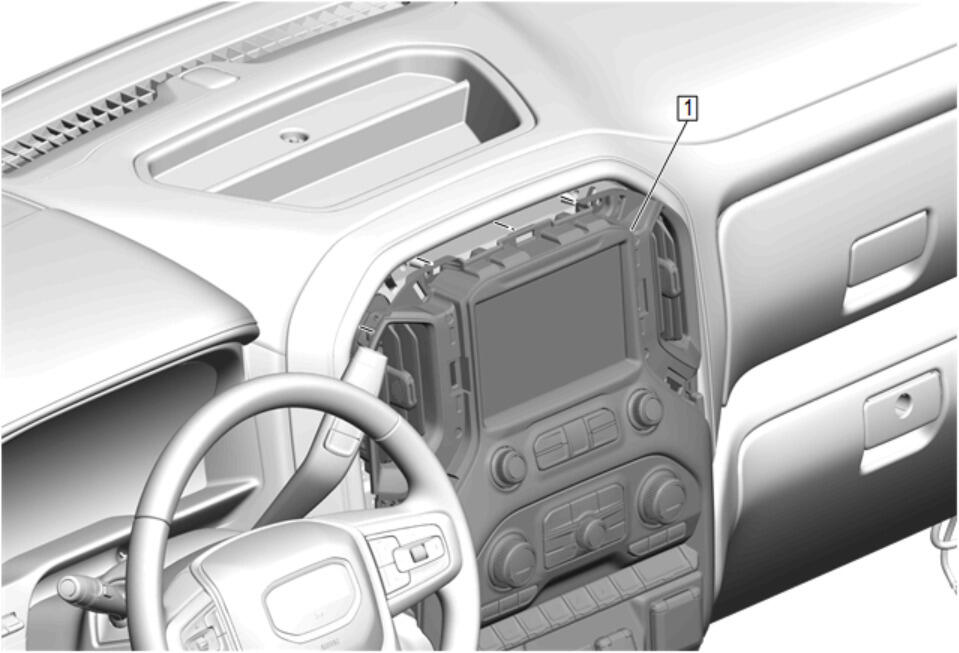

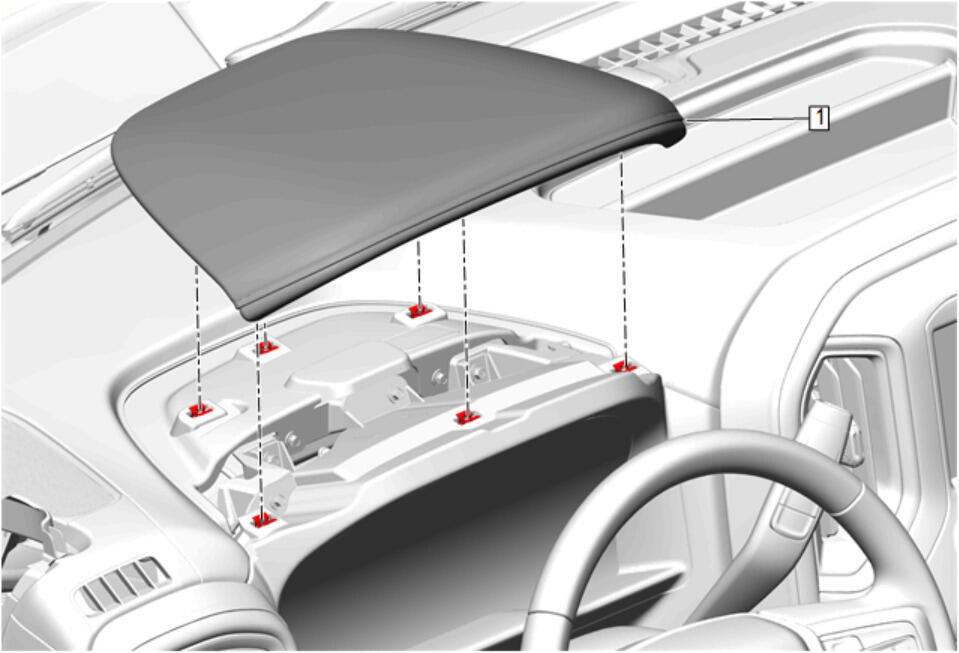

Install the instrument panel trim pad (1) to the instrument panel.
Courtesy of GENERAL MOTORS COMPANY

Install the radio control assembly (1) to the instrument panel trim pad.
Courtesy of GENERAL MOTORS COMPANY

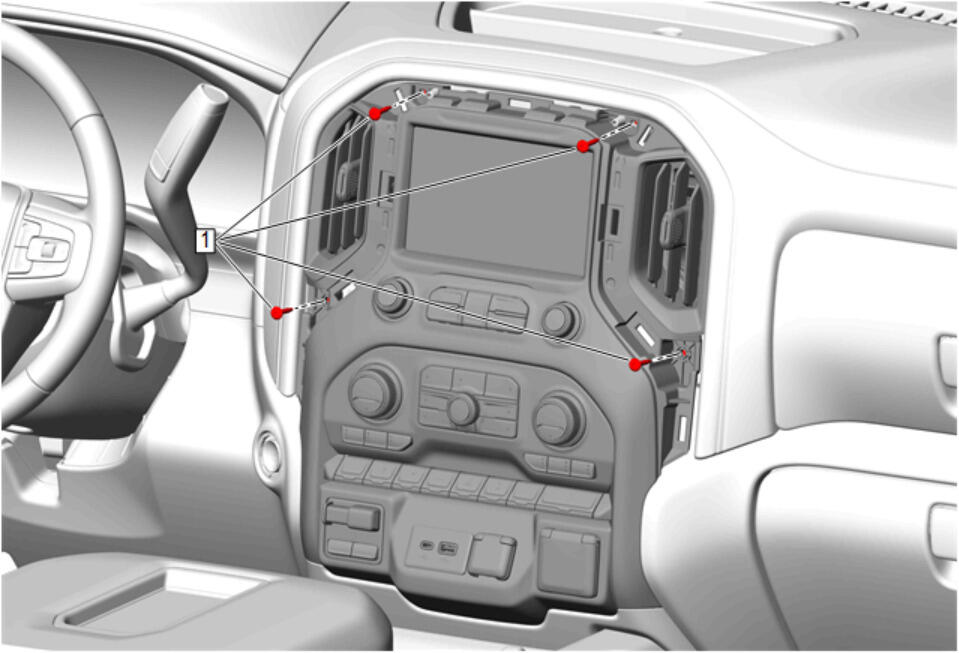

Radio Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect all electrical connectors.

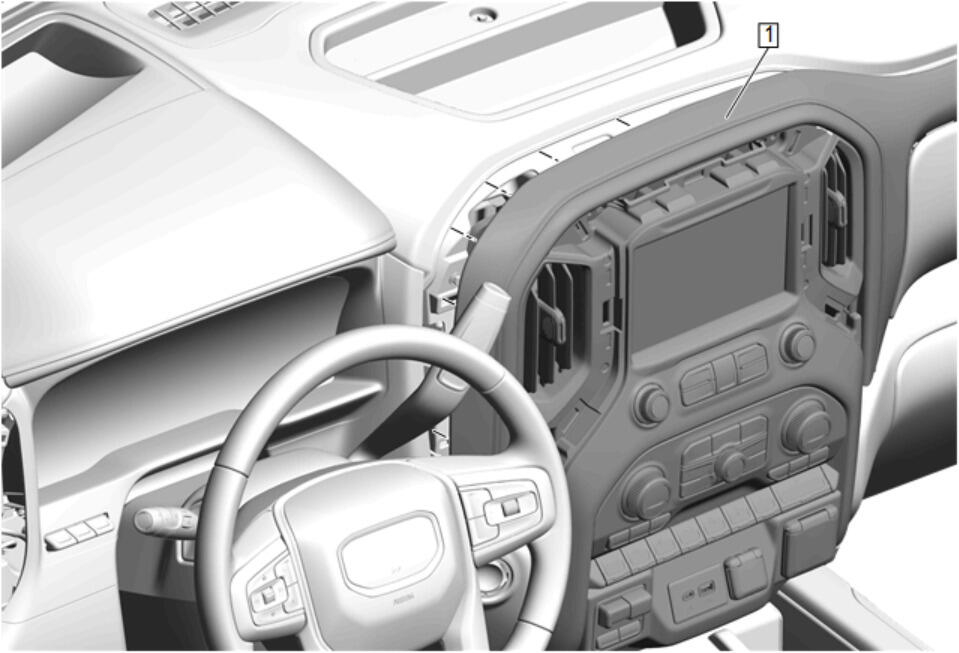

Instrument Panel Trim Pad (2) - Install
Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Fuse Block Access Hole Cover (1) - Install
Replace the front side door weatherstrip to cover the edge of the cover.
Enable the SIR System. SIR Disabling and Enabling
Program the theft deterrent module. Immobilizer System Component Programming (without ATH) Immobilizer System Component Programming (with ATH)
