Installation Procedure
WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.

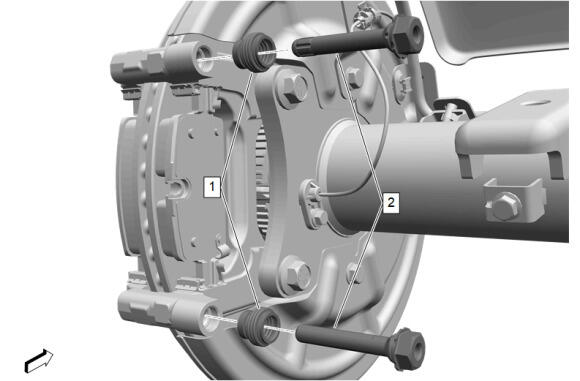

Rear Brake Caliper Guide Pin Boot (1) - Install NEW [2x]
- Rear Brake Caliper Guide Pin (2) - Install [2x]

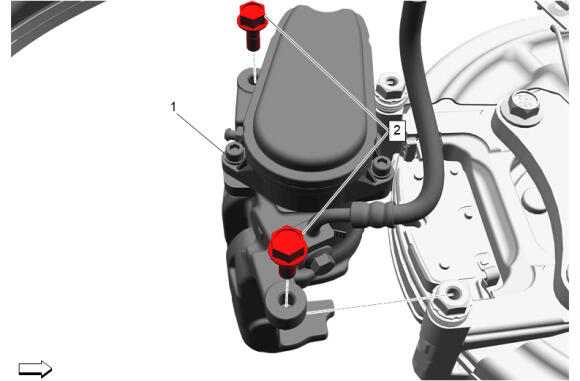

Rear Brake Caliper (1) - Install
- Rear Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications

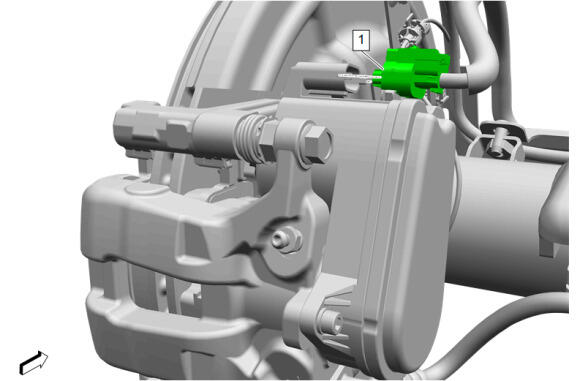

Electrical Connector (1) @Rear Parking Brake Actuator - Connect

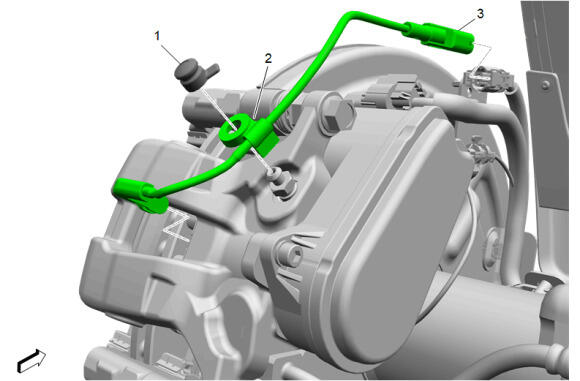

{If equipped} Rear Disc Brake Pad Wear Sensor (2) - Install
- {If equipped} Connect the electrical connector. (3)
- {If equipped} Rear Brake Bleeder Valve Cap (1) - Install
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)Tire and Wheel Removal and Installation (Steel Wheel)
- Remove the support and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (with KL9)Battery Negative Cable Disconnection and Connection (without KL9)
- Calibrate the park brake. Park Brake Calibration
NOTE:
The upper brake caliper guide pin is equipped with a bushing and must be installed in the same position.
CAUTION:
NOTE:
DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
