Removal Procedure

  1. Front Floor Console - Remove - Front Floor Console Removal and Installation

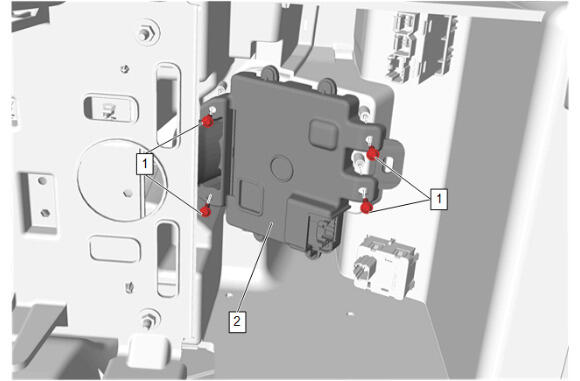

  2. GM5902747Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Bolt (1) - Remove [4x]

  3. Disconnect the electrical connector.
  4. Wireless Charging System Module Bracket (2) - Remove
  5. GM5902745Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module (1) - Remove
