Removal Procedure

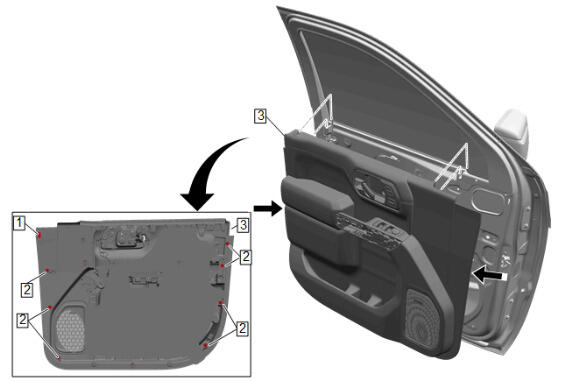

  1. GM5649153Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (3) - Remove - Front Side Door Trim Removal and Installation (WT, Custom) , or Front Side Door Trim Removal and Installation (Manual) , or Front Side Door Trim Removal and Installation

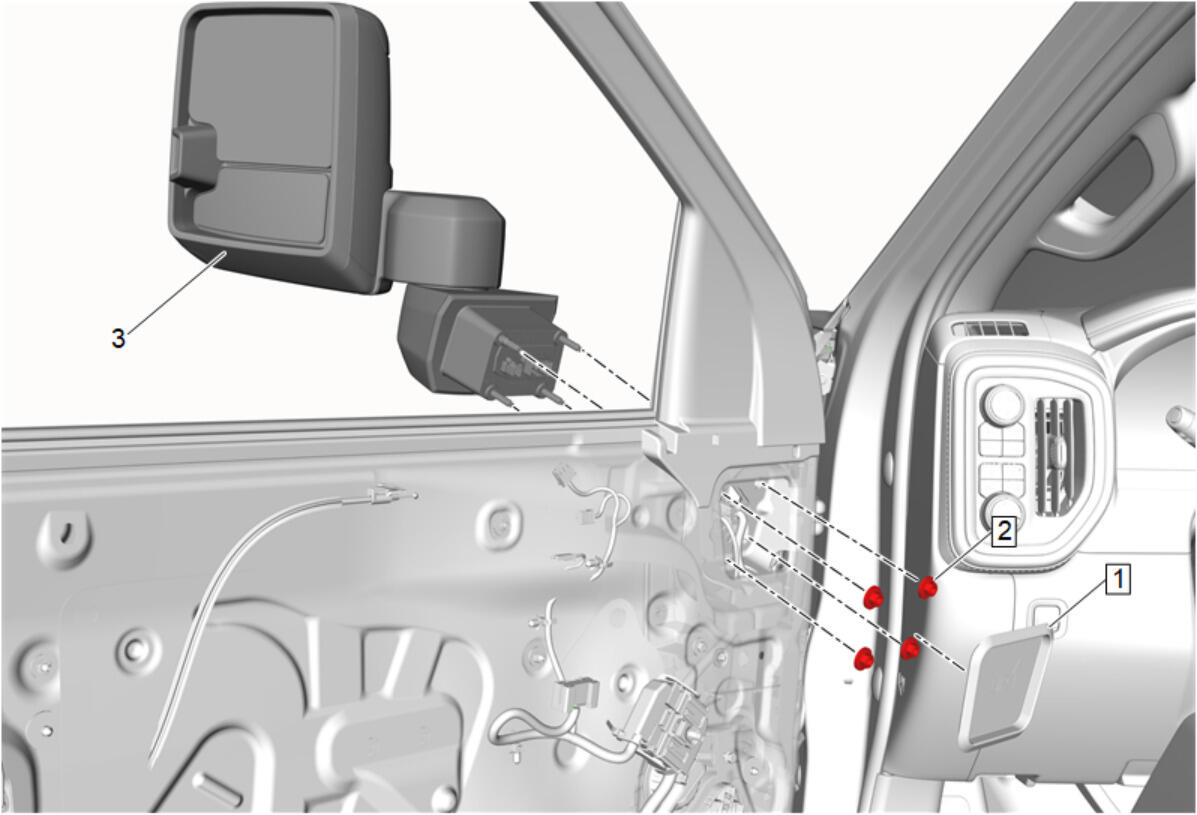

  2. GM5272682Courtesy of GENERAL MOTORS COMPANY

    Outside Rearview Mirror Nut Access Hole Plug (1) - Remove

  3. Disconnect all electrical connectors.
    4. NOTE:

    Leave 1 outside rearview mirror nut partially installed, secure the outside rearview mirror housing, and proceed to remove remaining outside rearview mirror nut.

  4. Outside Rearview Mirror Nut (2) - Remove [4x]
  5. Outside Rearview Mirror (3) - Remove
