Installation Procedure

  1. GM5938190Courtesy of GENERAL MOTORS COMPANY

    Remote Function Actuator Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.

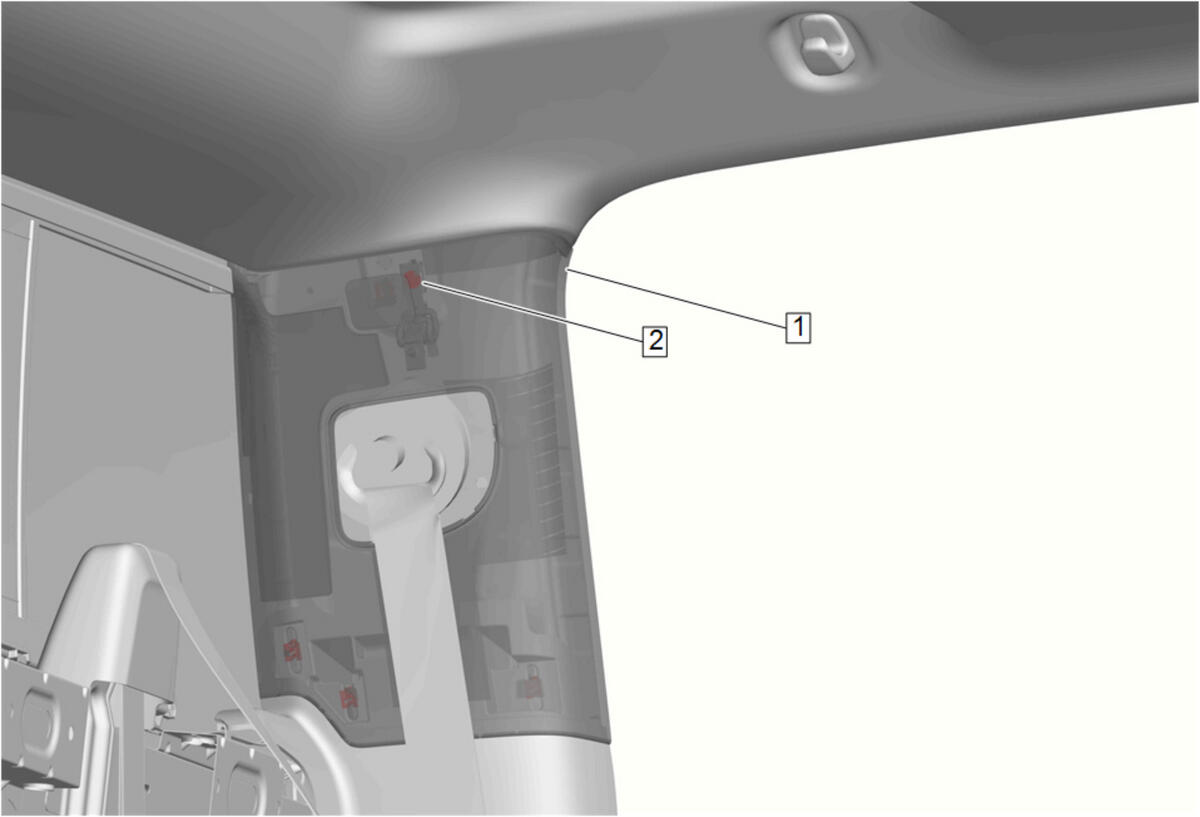

  4. GM5027777Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications

  5. Body Side Rear Window Garnish Molding - Right Side (1) - Install
  6. Enable the SIR System. SIR Disabling and Enabling
