Home >> Chevrolet >> 2022 >> Malibu Premier >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control and Park Position Switch

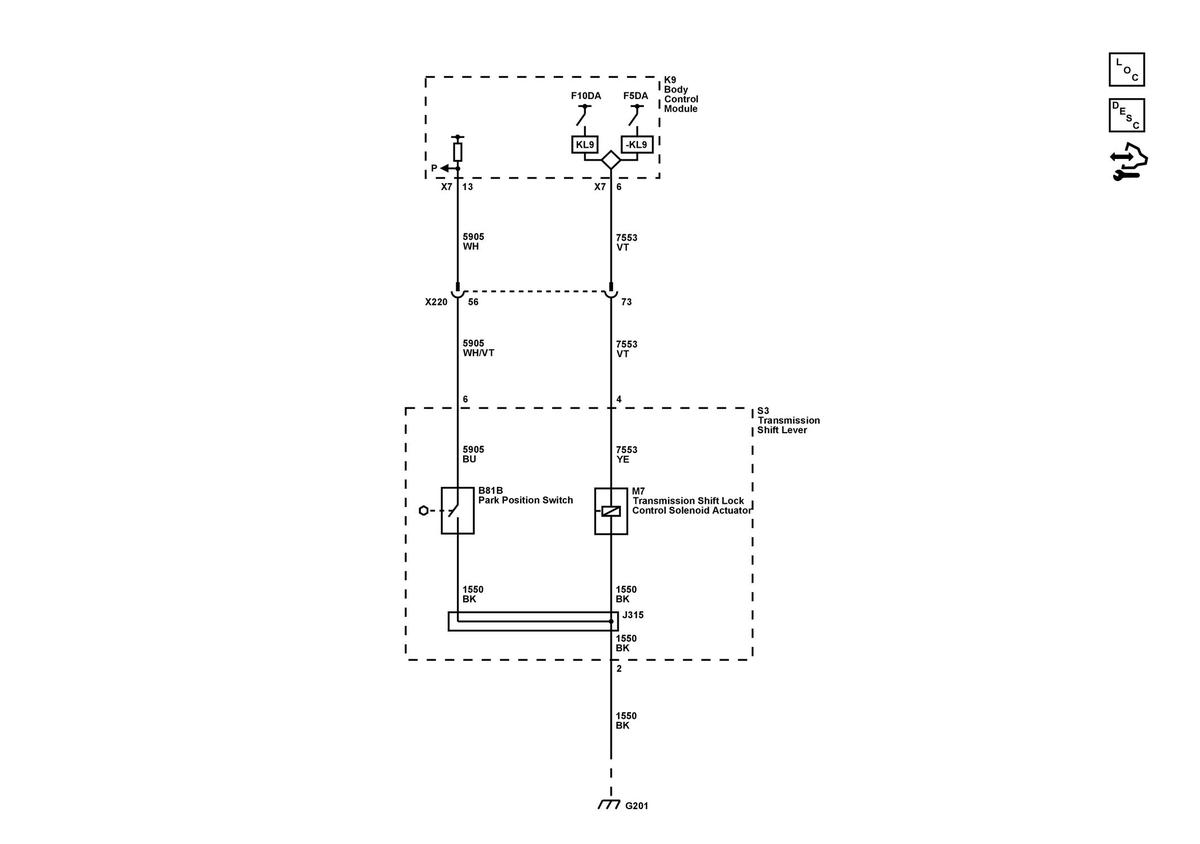

Shift Lock Control and Park Position Switch

GM5732144

Courtesy of GENERAL MOTORS COMPANY
