Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Front Compartment Insulator - Remove - Front Compartment Insulator Replacement
- Without disconnecting suspension components, lower the drivetrain and front suspension cradle. Drivetrain and Front Suspension Cradle Removal and Installation (With E60) , or Drivetrain and Front Suspension Cradle Removal and Installation (Without E60)
Electronic Suspension Control Module (2) - Remove - Suspension Control Module Replacement

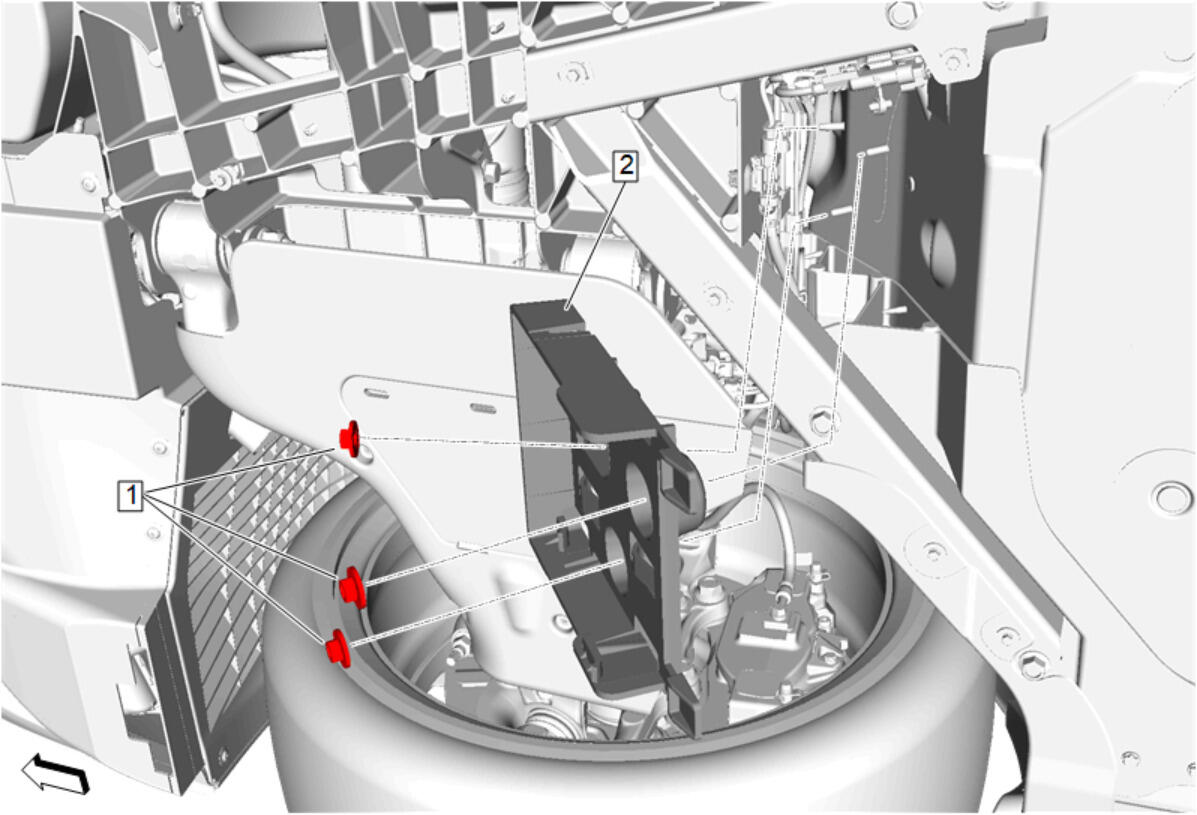

Electronic Suspension Control Module Bracket Nut (1) - Remove [3x]
- Electronic Suspension Control Module Bracket (2) - Remove
