Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

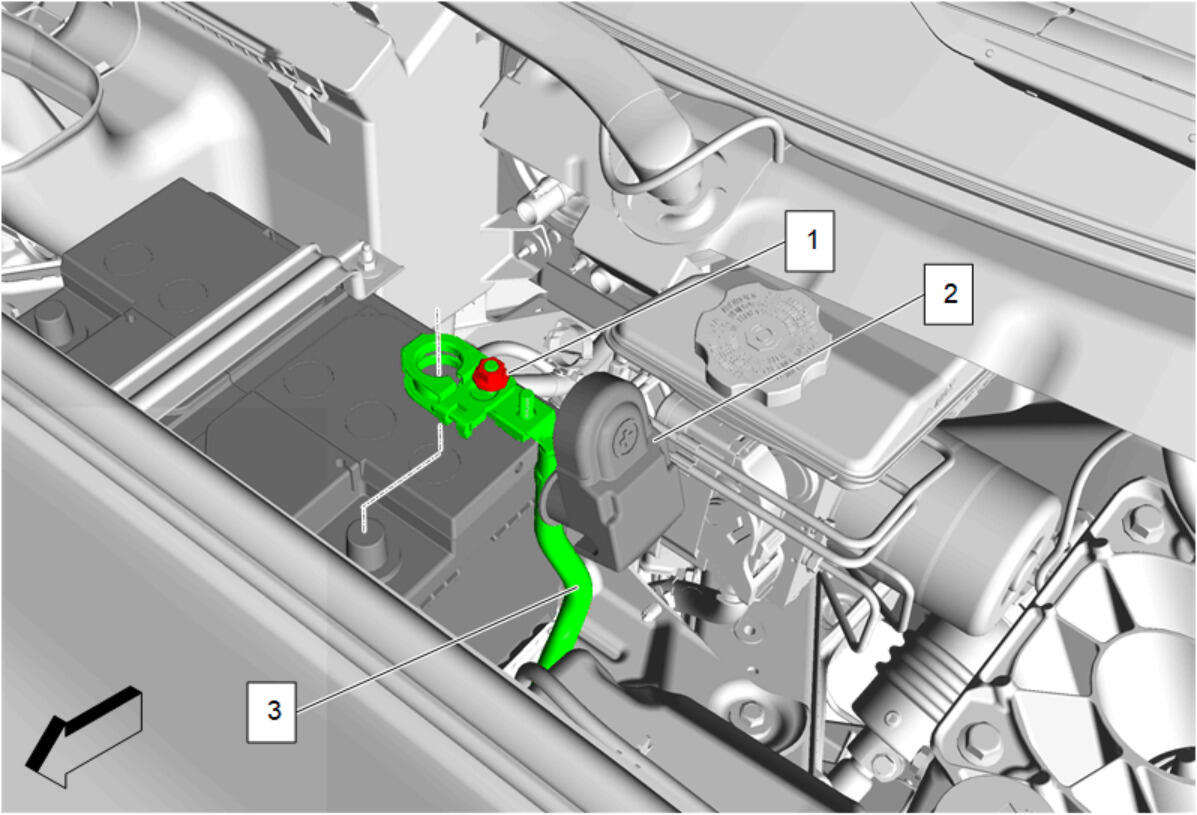

  2. GM5363252Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Terminal Cover (2) - Reposition

  3. Battery Positive Post Clamp Nut (1) - Loosen
  4. Battery Positive Junction Block Cable (3) - Reposition away

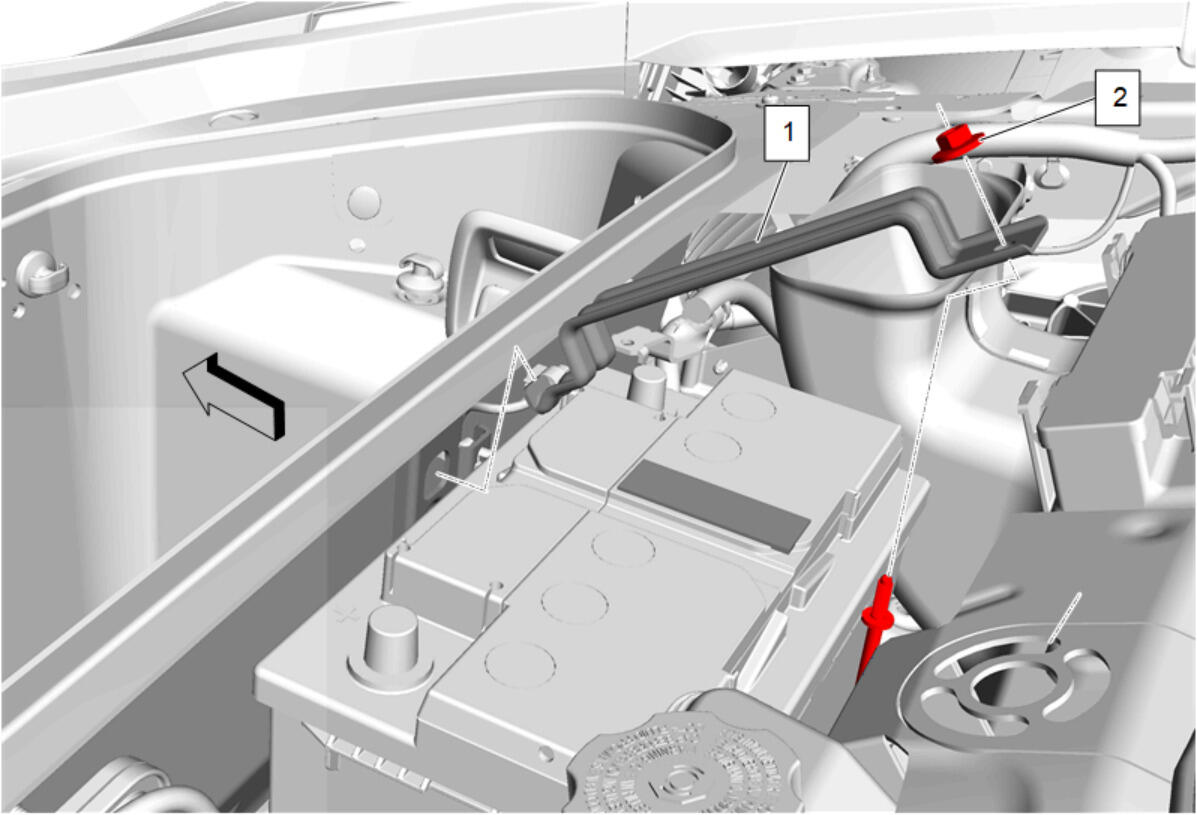

  5. GM5363640Courtesy of GENERAL MOTORS COMPANY

    Battery Retainer Nut (2) - Remove

  6. Battery Hold Down Strap (1) - Remove

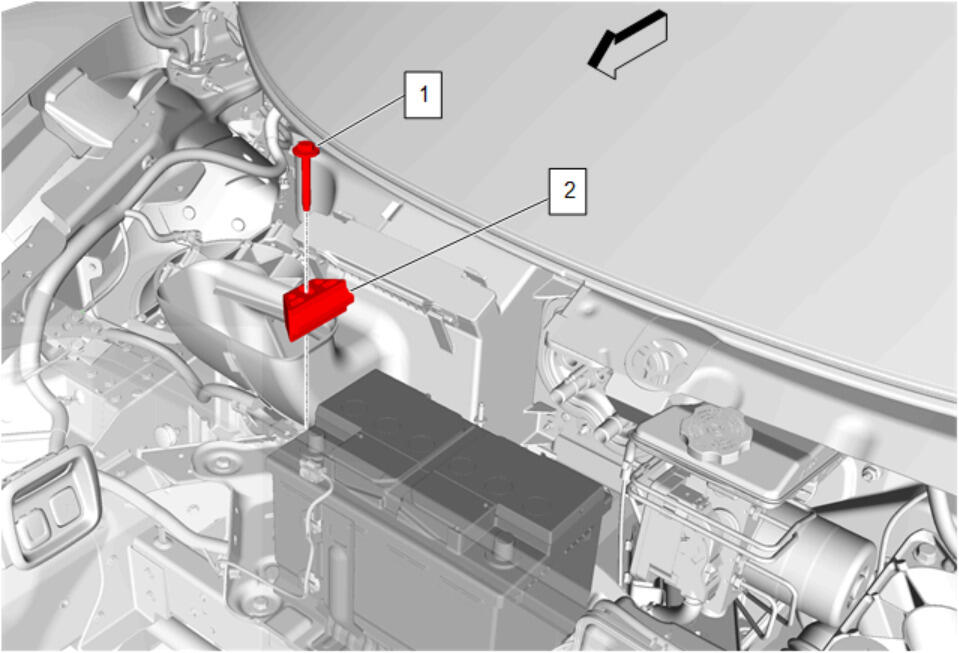

  7. GM5380997Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer Bolt (1) - Remove

  8. Battery Hold Down Retainer (2) - Remove
  9. GM5363884Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Remove
