Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Battery (1) - Remove - Battery Replacement
Battery Tray (1) - Remove - Battery Tray Replacement
Retaining Tab (1) - Disengage

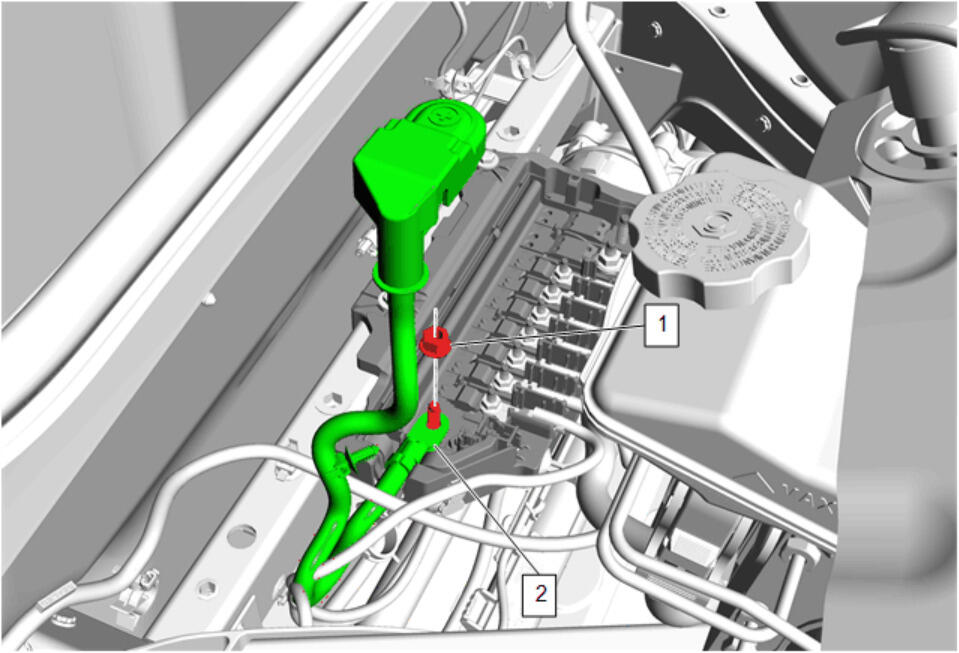

- Battery Distribution Fuse Block Cover (2) - Remove
Battery Positive Cable Nut (1) @Battery Distribution Engine Compartment Fuse Block - Remove
- Battery Positive Cable (2) - Remove
- Raise and support the vehicle. Lifting and Jacking the Vehicle

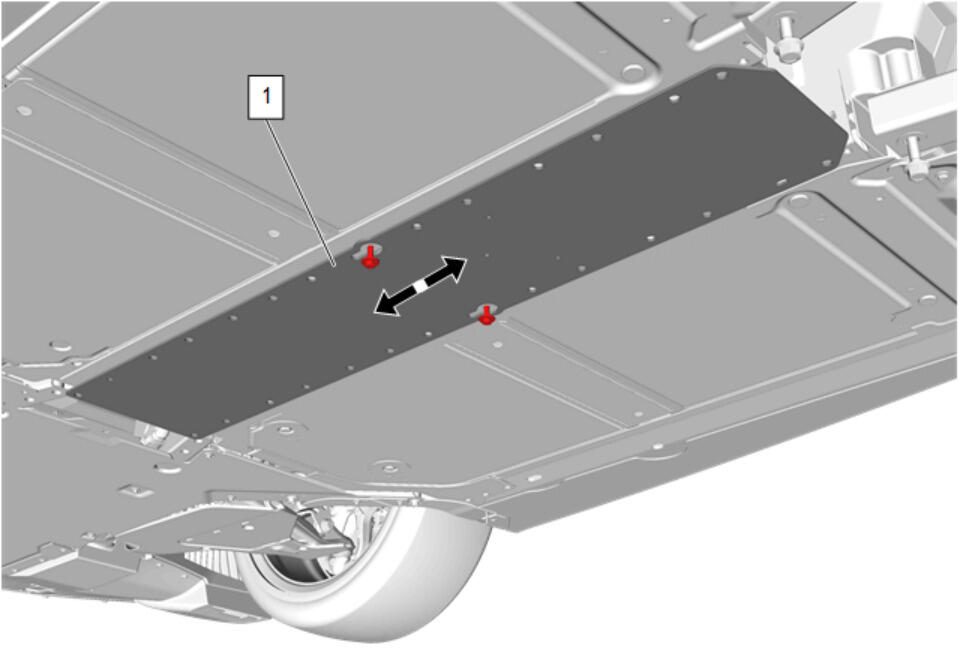

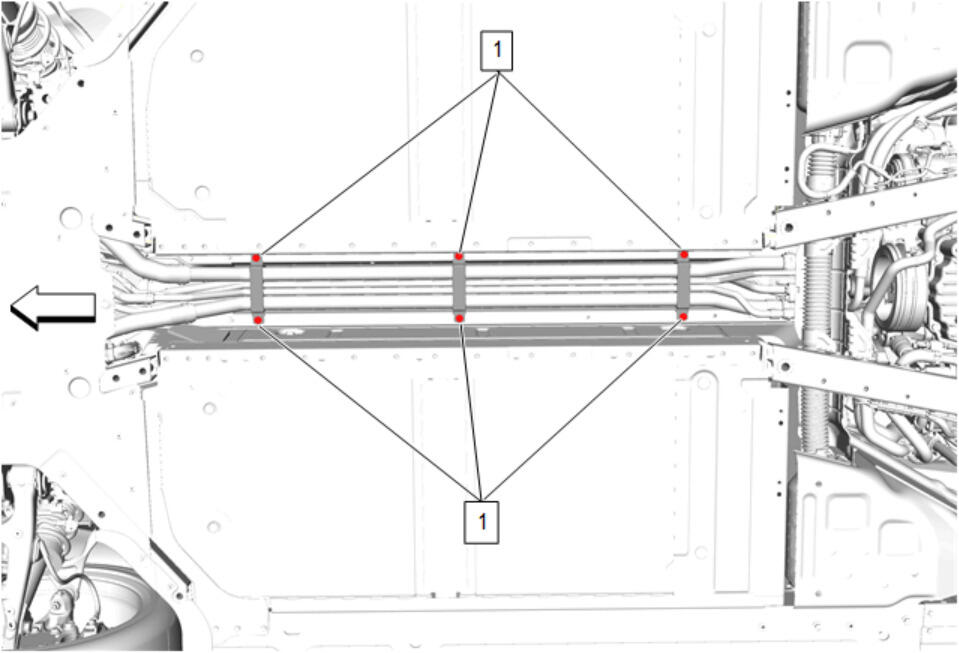

Floor Panel Tunnel Panel Front Reinforcement - Mid Tunnel (1) - Remove - Floor Panel Tunnel Panel Front Reinforcement Replacement - Mid-Tunnel

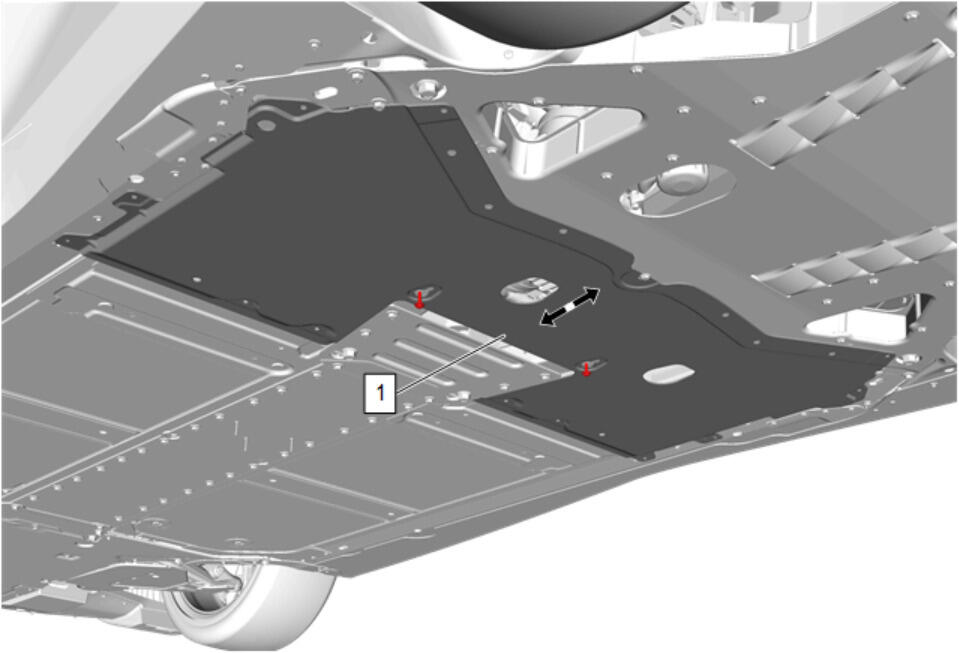

Underbody Rear Air Deflector (1) - Remove - Underbody Rear Air Deflector Replacement
Rear Cradle Shear Plate (2) - Remove - Rear Cradle Shear Plate Replacement

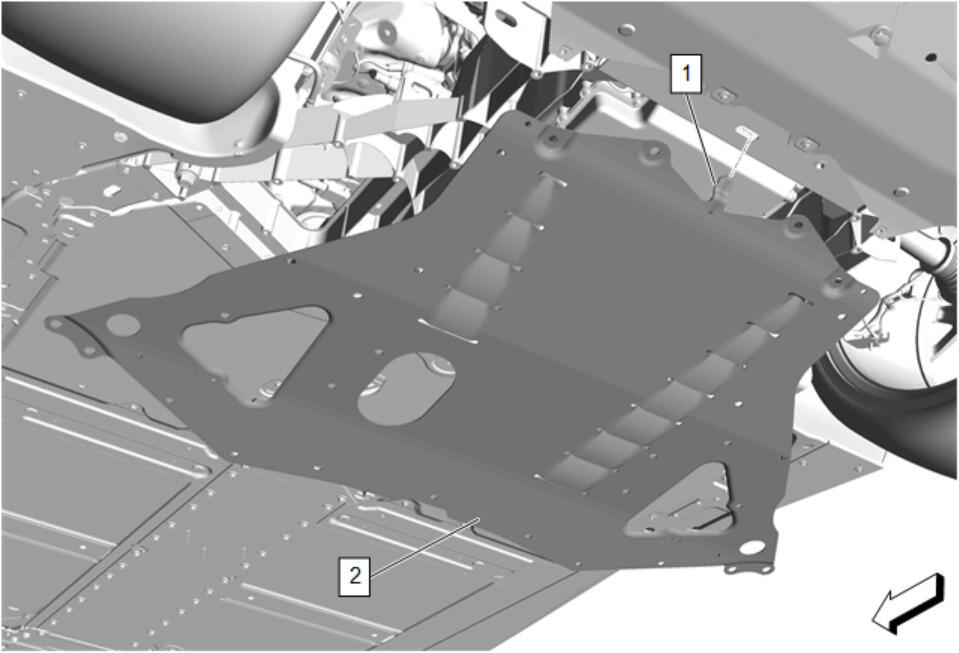

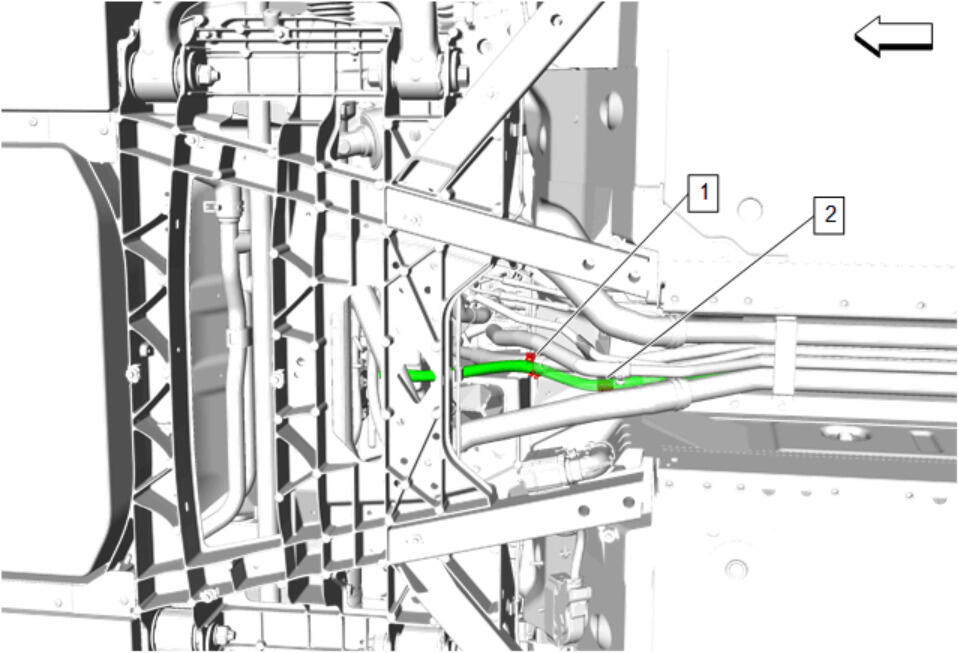

Retainer Clip (1) - Remove
- Retainer (2) - Disengage
Engine Control Module Bracket (2) - Remove - Engine Control Module Bracket Bracket Replacement
Auxiliary Air Conditioning Evaporative Tube Bolt (1) - Remove [6x]
- Lower the air conditioning condenser and air conditioning evaporative tube assembly, in order to gain access to the battery positive cable. Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement

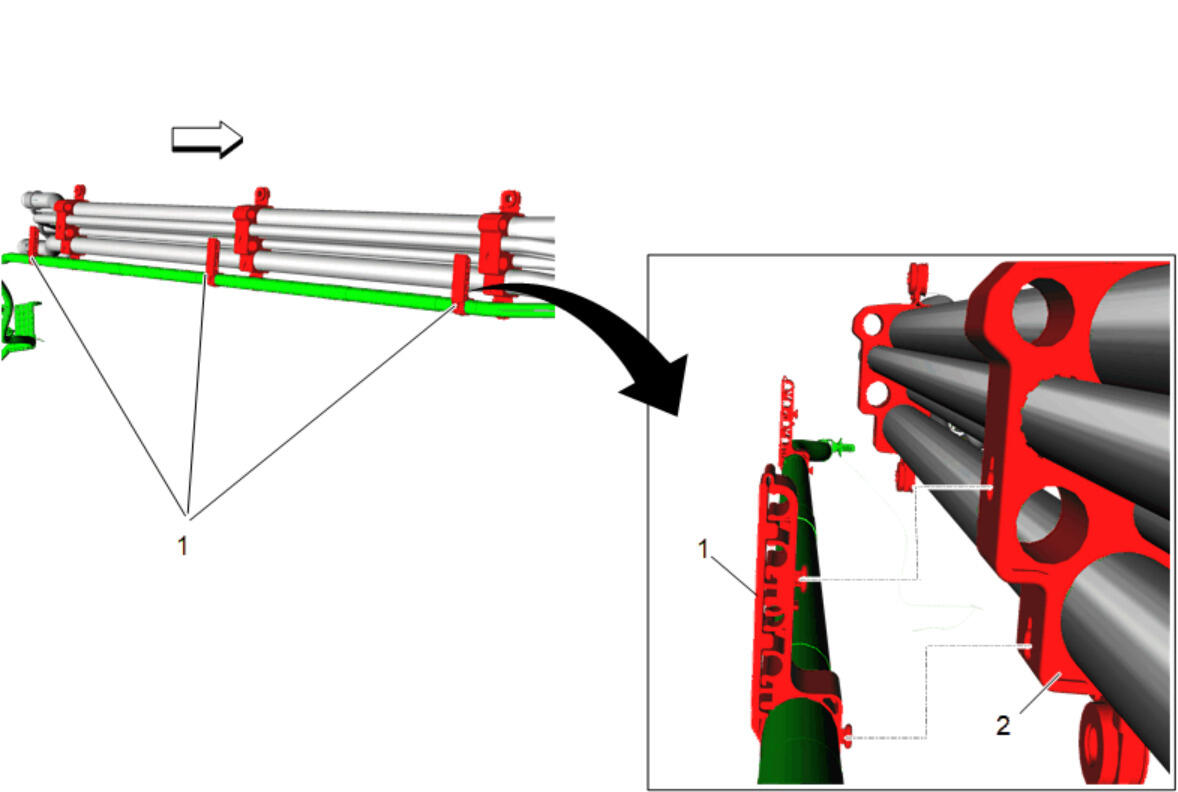

Disengage the battery positive cable retainers (1), from the auxiliary air conditioning evaporative tube retainers (2).

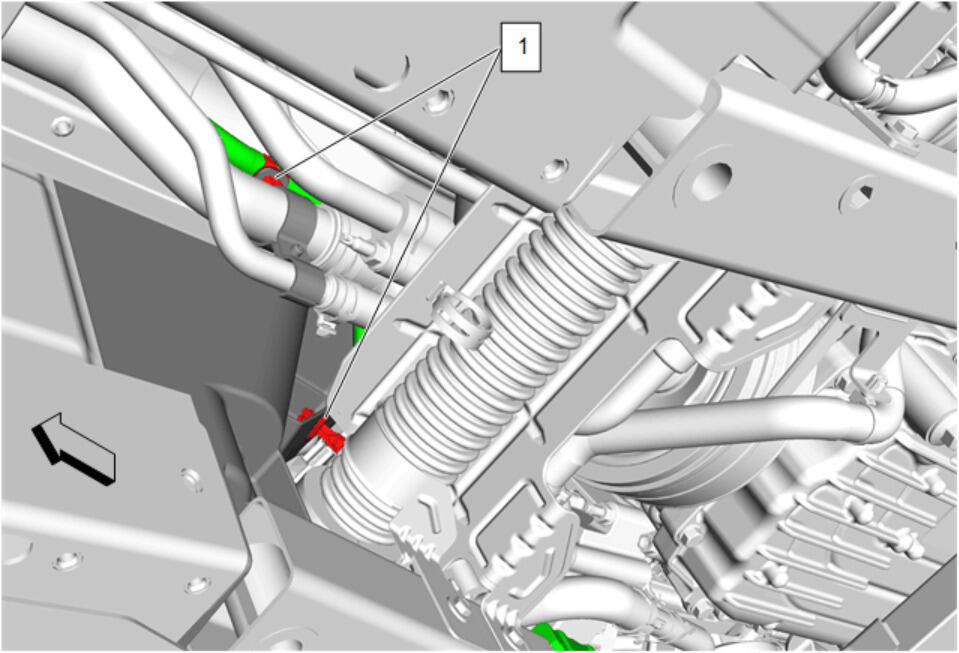

Retainer (1) - Disengage [2x]

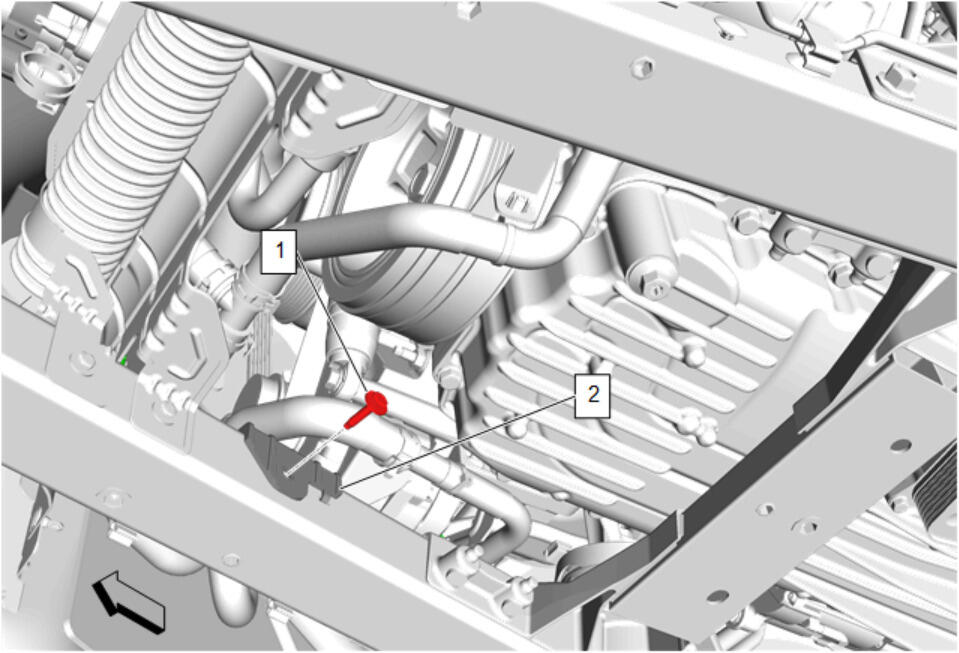

Battery Positive Cable Bracket Bolt (1) - Remove
- Battery Positive Cable Conduit (2) - Reposition away

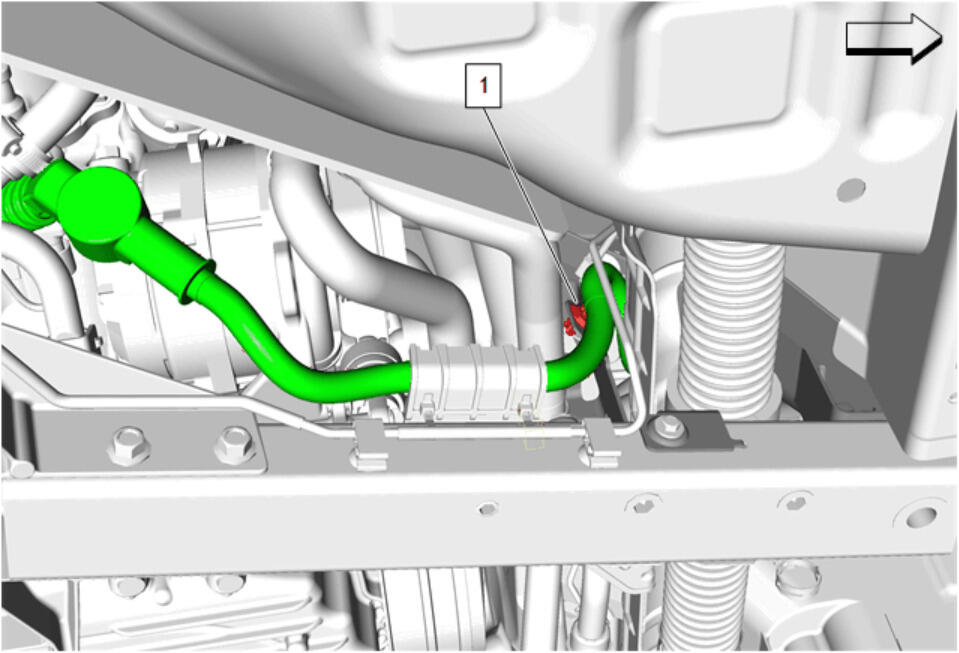

Retainer (1) - Disengage

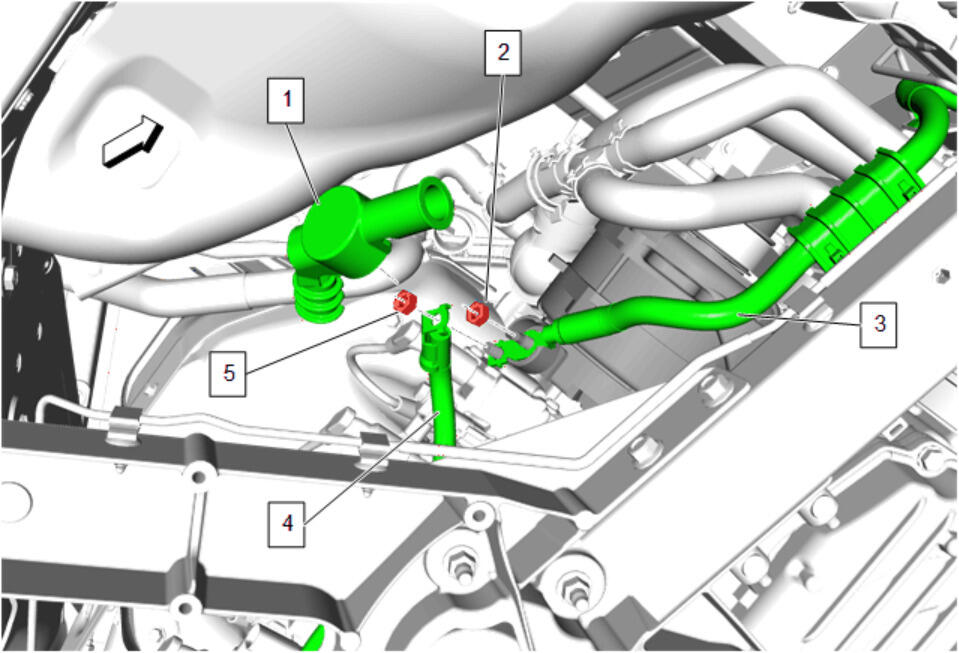

Protective Boot (1) - Reposition away
- Battery Positive Cable Nut (2) @Generator - Remove
- Battery Positive Cable Nut (5) @ Battery Positive Cable Terminal - Remove
- Starter Solenoid Cable (4) - Remove
- Battery Positive Cable (3) - Remove
