Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

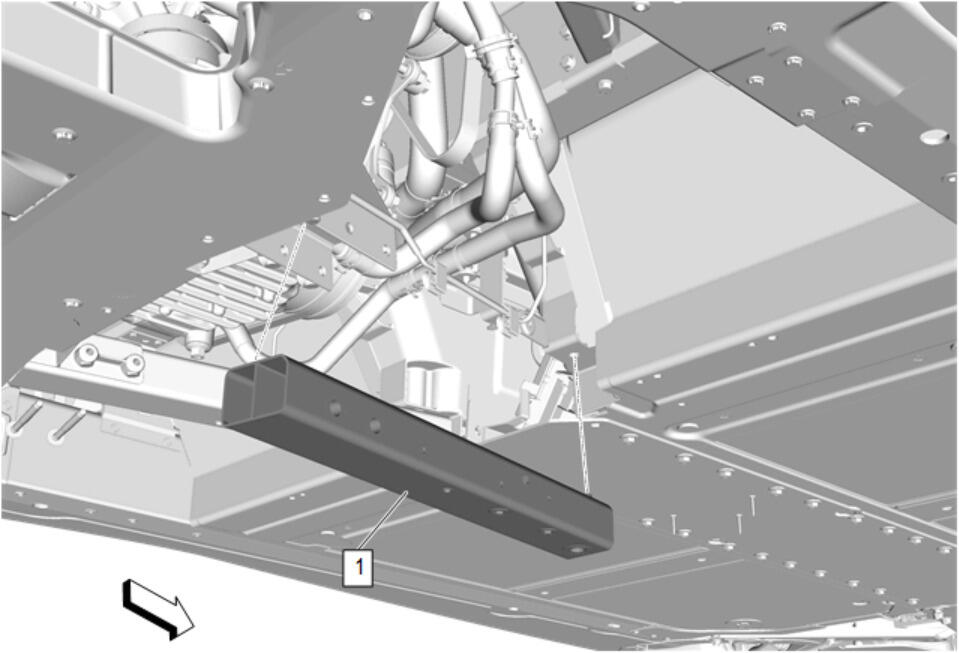

  2. GM5360962Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Front Extension (1) - Remove - Rear Suspension Front Extension Replacement - Right Side

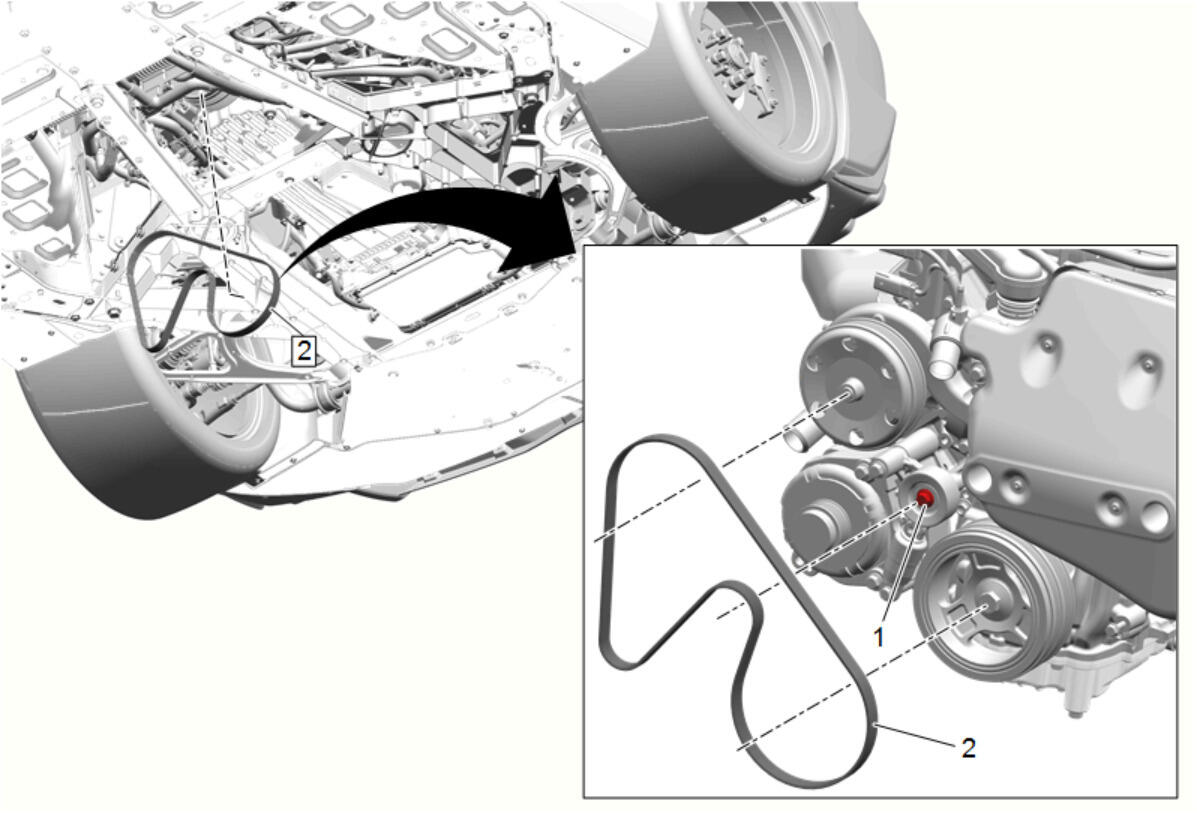

  3. GM5385007Courtesy of GENERAL MOTORS COMPANY

    Water Pump and Generator Belt (2) - Remove and DISCARD - Water Pump and Generator Belt Replacement

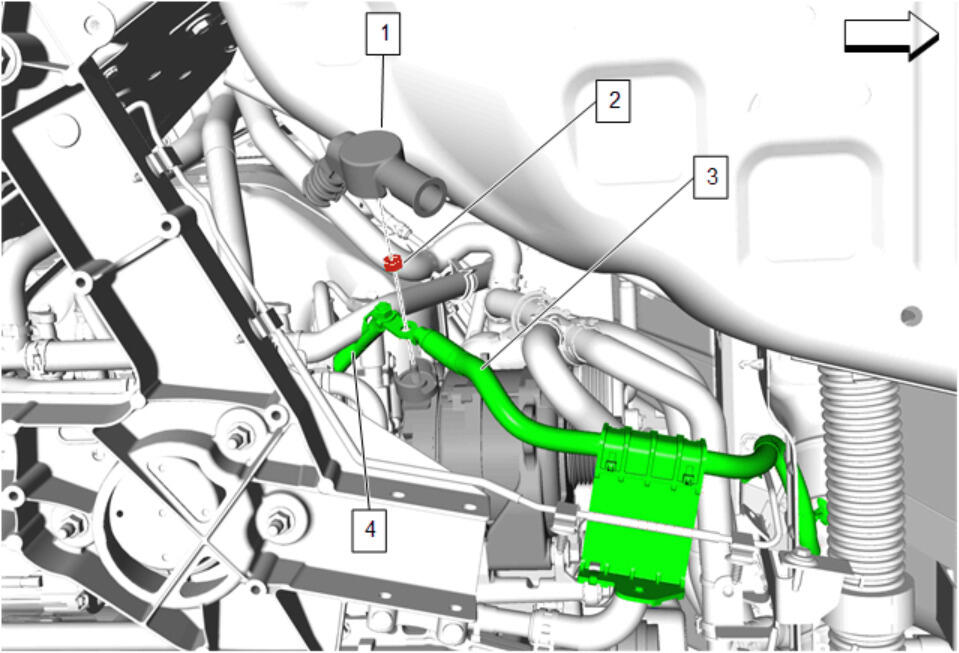

  4. GM5375250Courtesy of GENERAL MOTORS COMPANY

    Protective Boot (1) - Reposition away

  5. Battery Positive Cable Nut (2) @Generator - Remove
  6. Reposition away the battery positive cable (3) and starter solenoid cable (4).

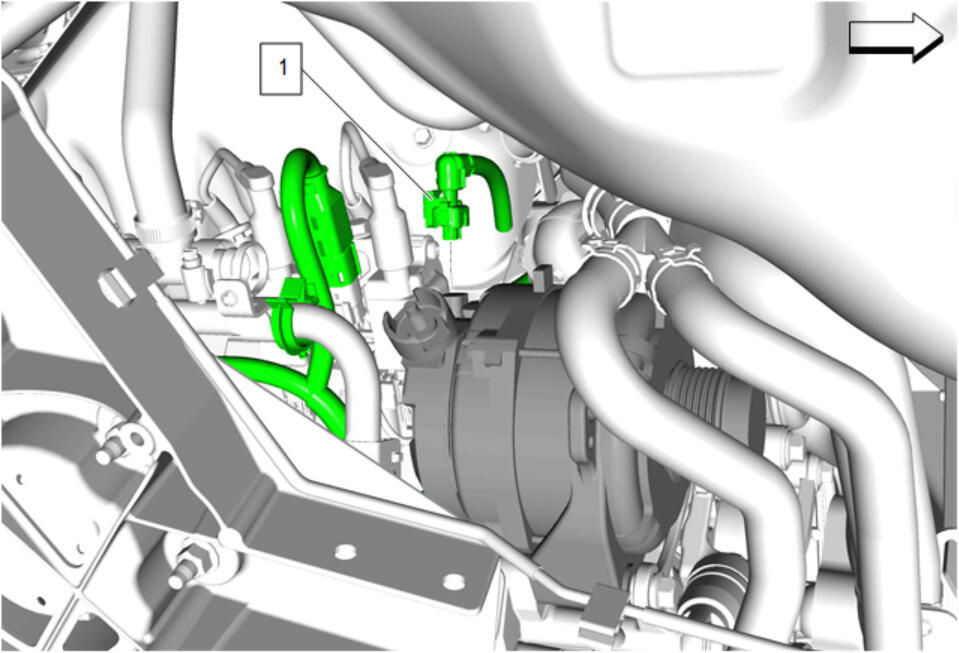

  7. GM5375265Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

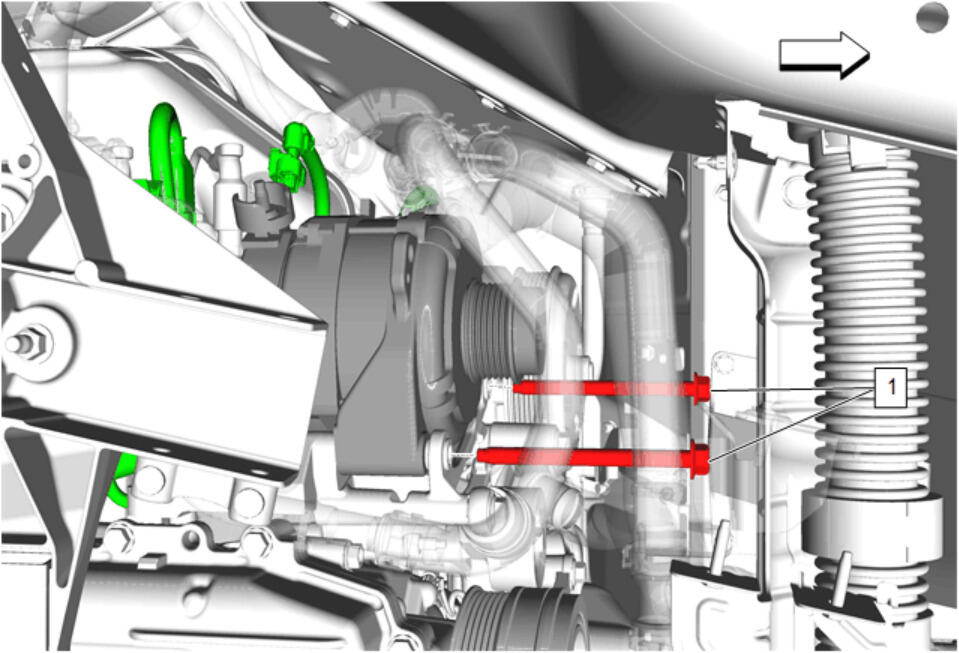

  8. GM5375290Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (1) - Remove [2x]

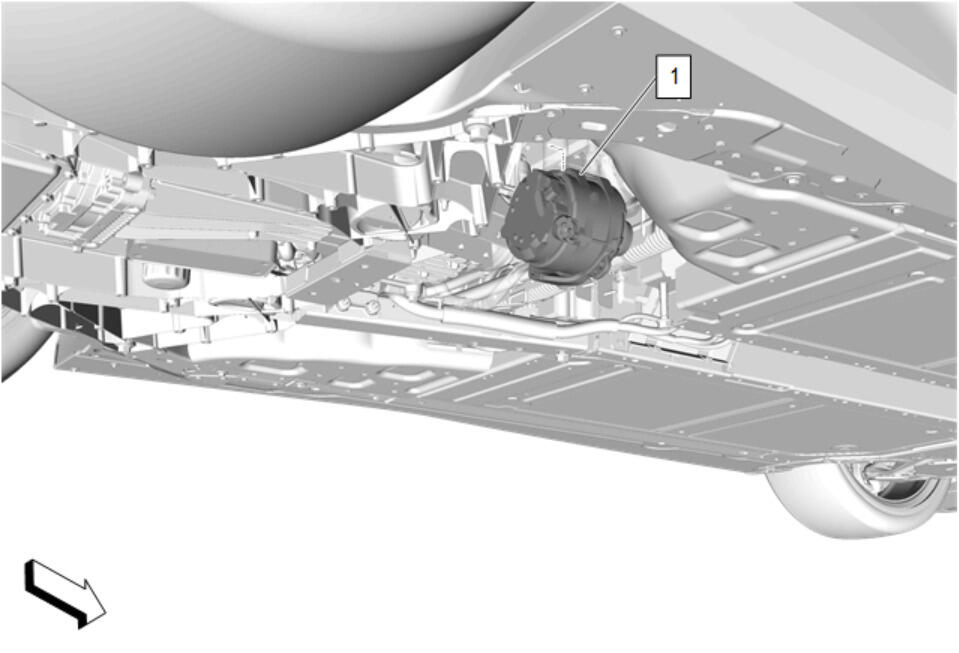

  9. GM5375307Courtesy of GENERAL MOTORS COMPANY

    Generator (1) - Remove
