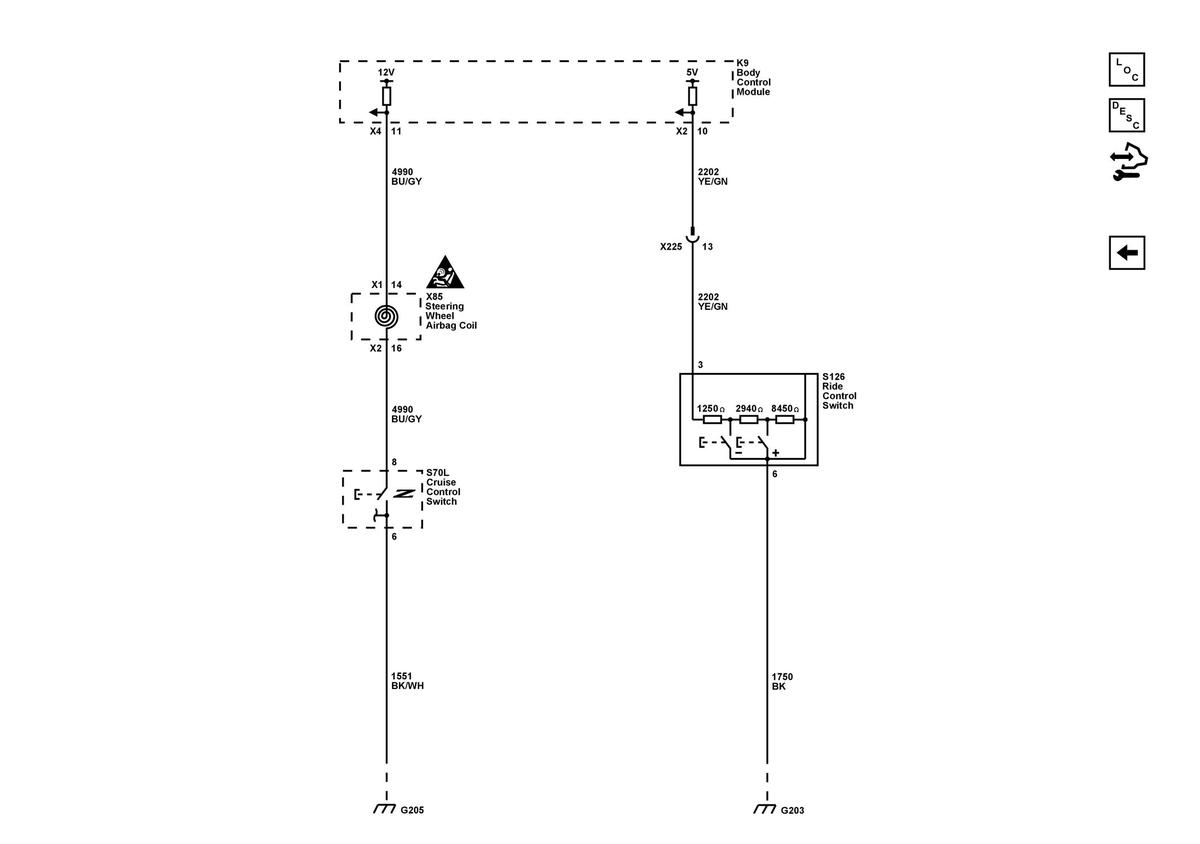

Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Enhanced Drive Mode Control
Enhanced Drive Mode Control
Courtesy of GENERAL MOTORS COMPANY
