Fastener Specifications

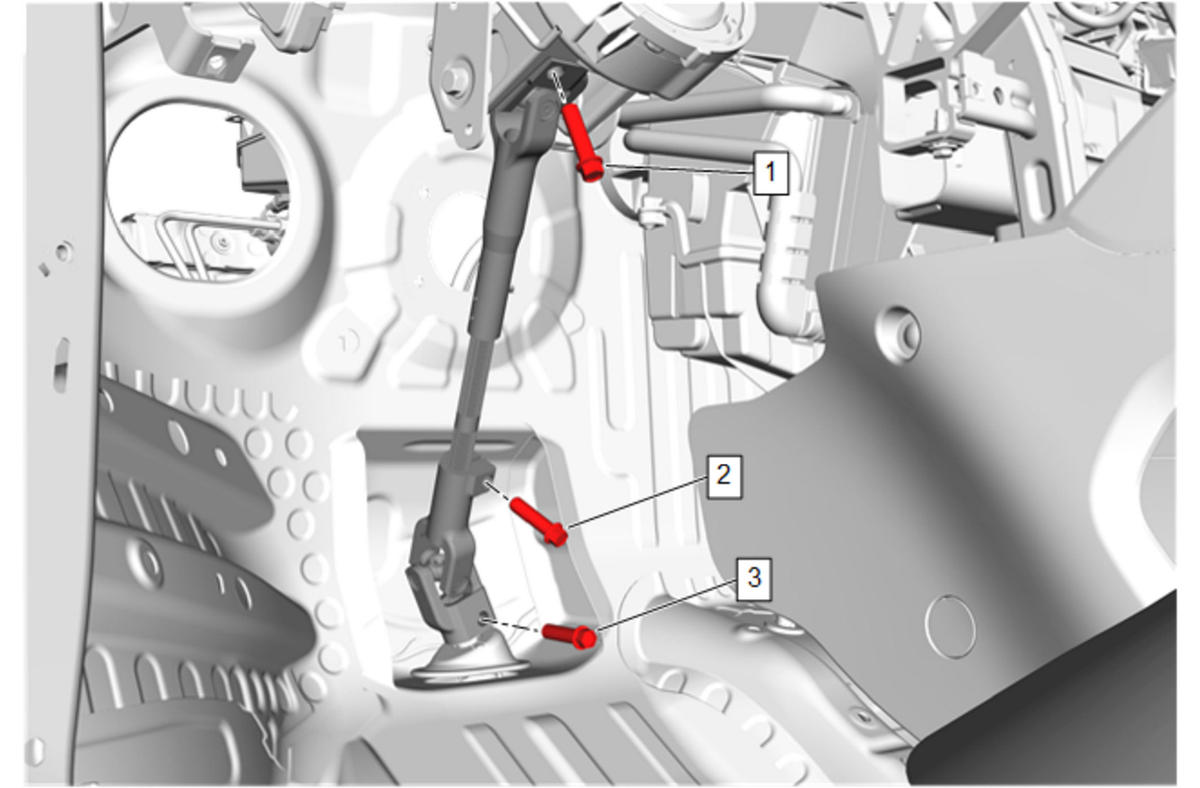

GM5773045Courtesy of GENERAL MOTORS COMPANY
Intermediate Steering Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intermediate Steering Shaft Upper Bolt - - 49 N.m (36 lb ft) Intermediate Steering Shaft Replacement
2 Intermediate Steering Shaft Middle Bolt - - 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement
3 Intermediate Steering Shaft Lower Bolt - - 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement

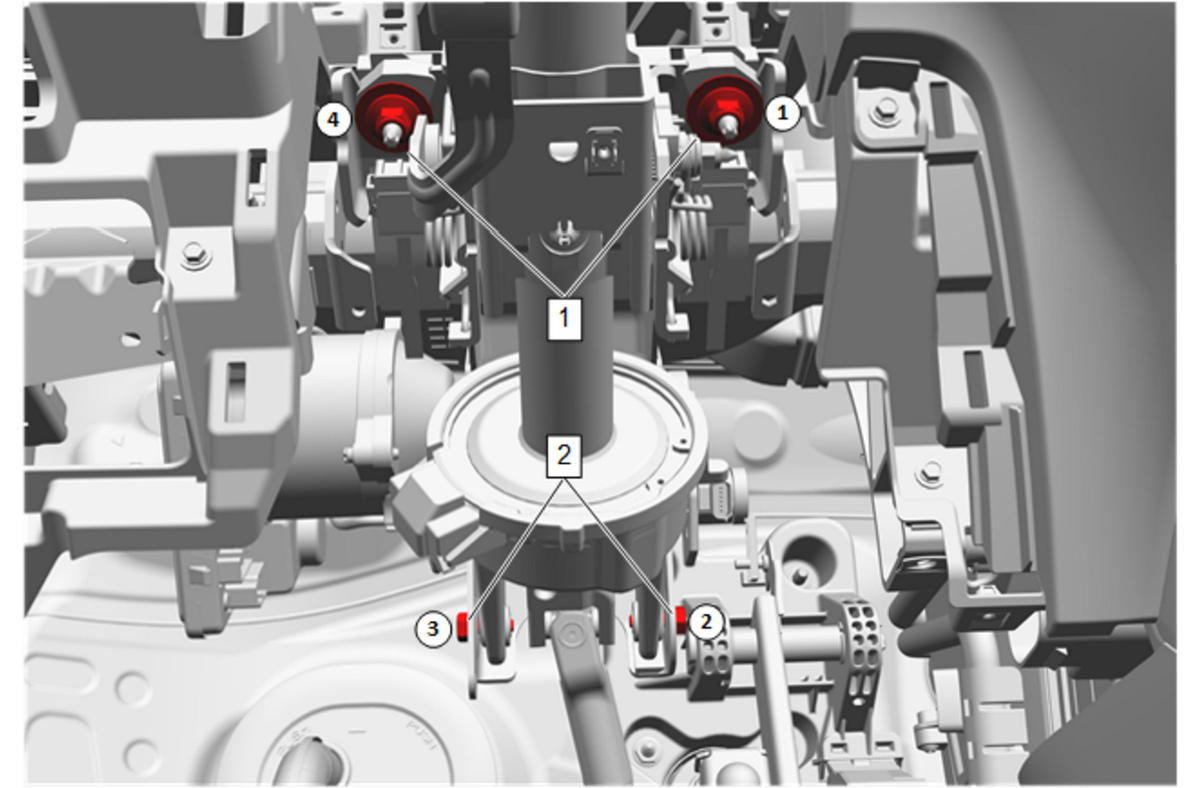

GM5699258Courtesy of GENERAL MOTORS COMPANY
Steering Column

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Upper Support Bracket Nut [2x] - - 22 N.m (16 lb ft) Steering Column Replacement
2 Steering Column Lower Support Bracket Bolt [2x] - - 30 N.m (22 lb ft) Steering Column Replacement

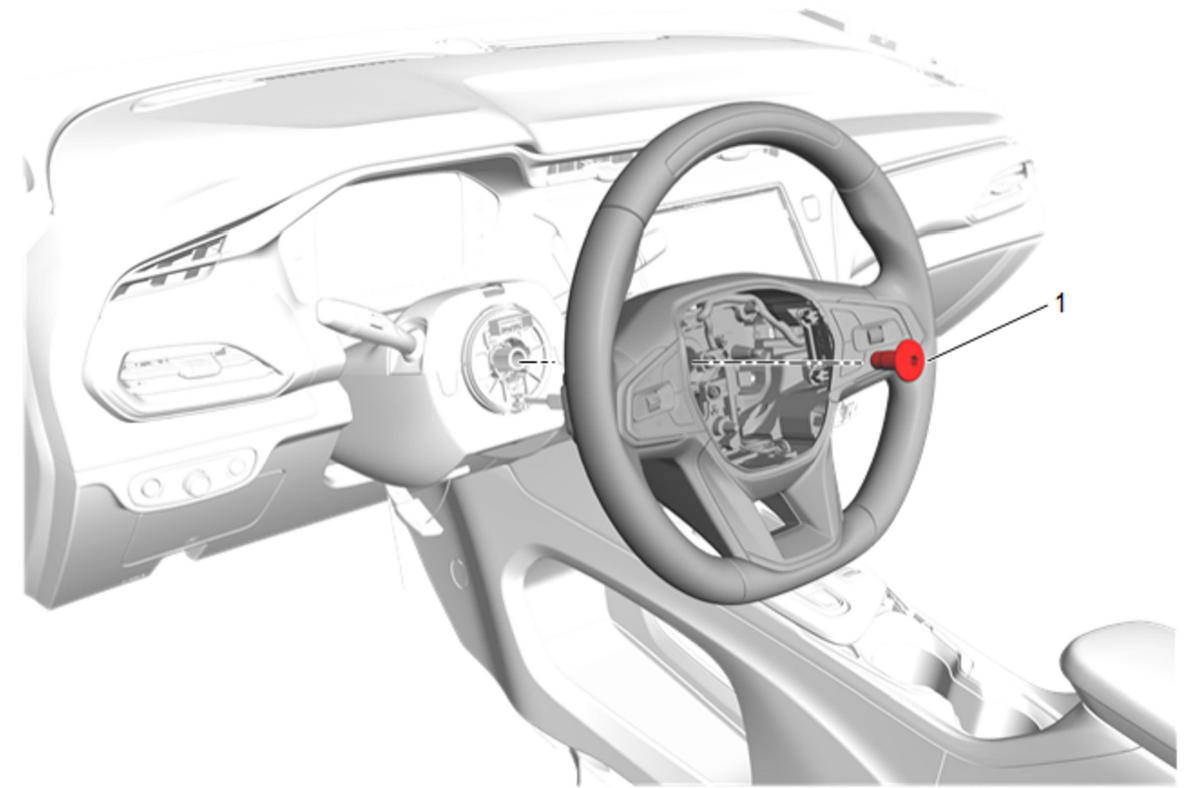

GM5773048Courtesy of GENERAL MOTORS COMPANY
Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt - - 45 N.m (33 lb ft) Steering Wheel Replacement

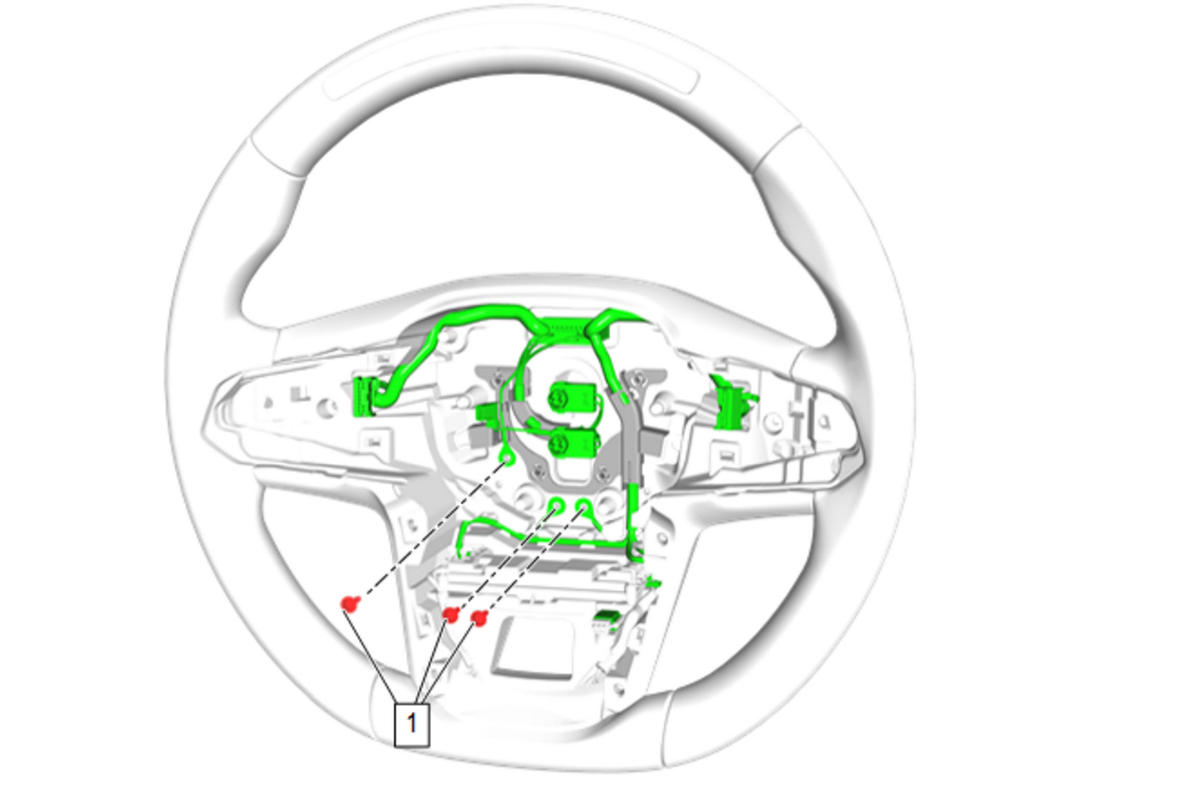

GM5773046Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Pad Accessory Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Pad Accessory Wiring Harness Screw [3x] - - 1.3 N.m (12 lb in) Steering Wheel Pad Accessory Wiring Harness Replacement (with UKL) , or Steering Wheel Pad Accessory Wiring Harness Replacement (without UKL)

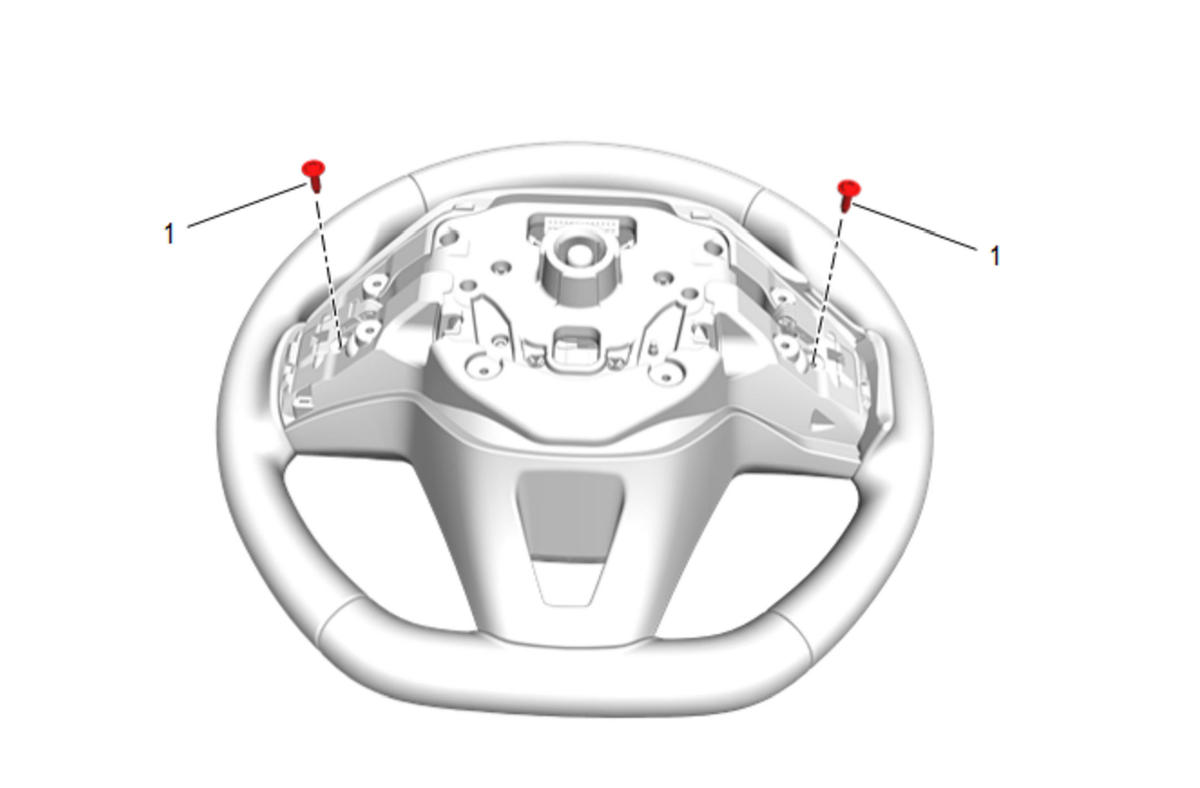

GM5773047Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Pad Accessory Wiring Harness Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Radio Bracket [2x] - - 1.4 N.m (12 lb in) Steering Wheel Pad Accessory Wiring Harness Replacement (with UKL) , or Steering Wheel Pad Accessory Wiring Harness Replacement (without UKL)

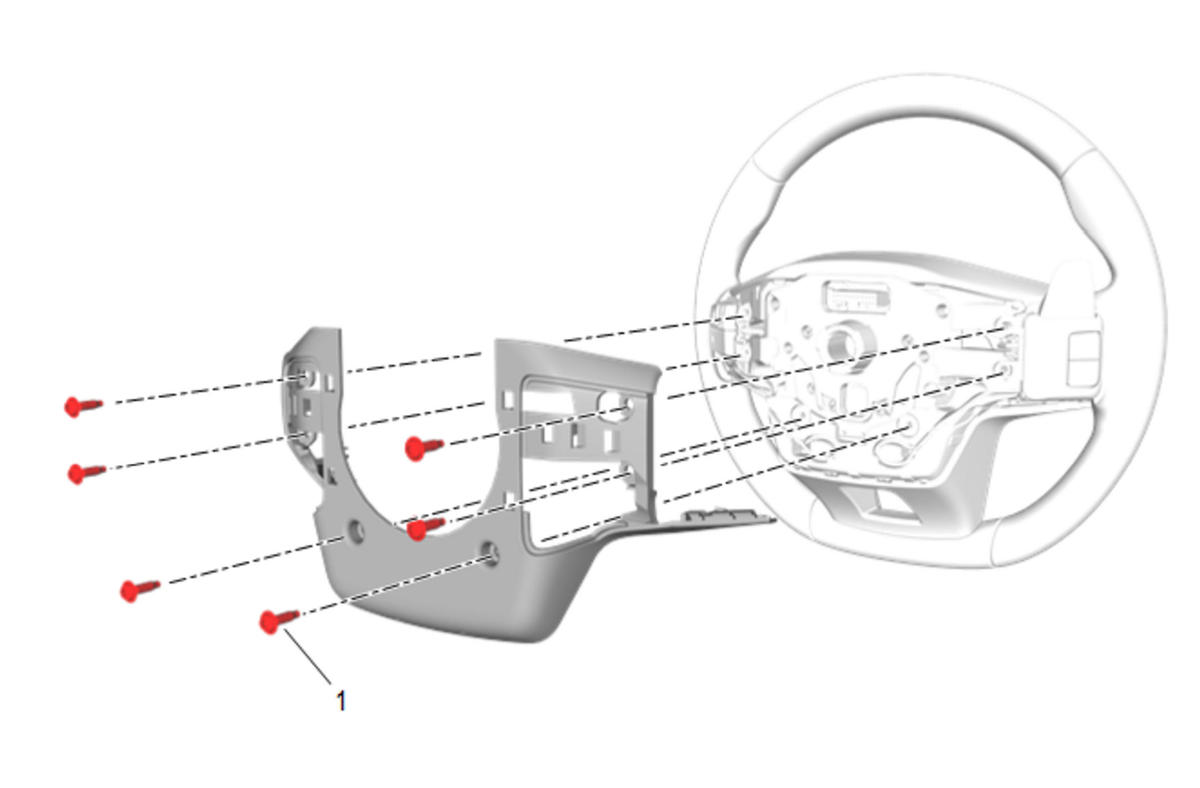

GM5773049Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Shroud Bolt - - 3.5 N.m (31 lb in) Steering Wheel Shroud Replacement
