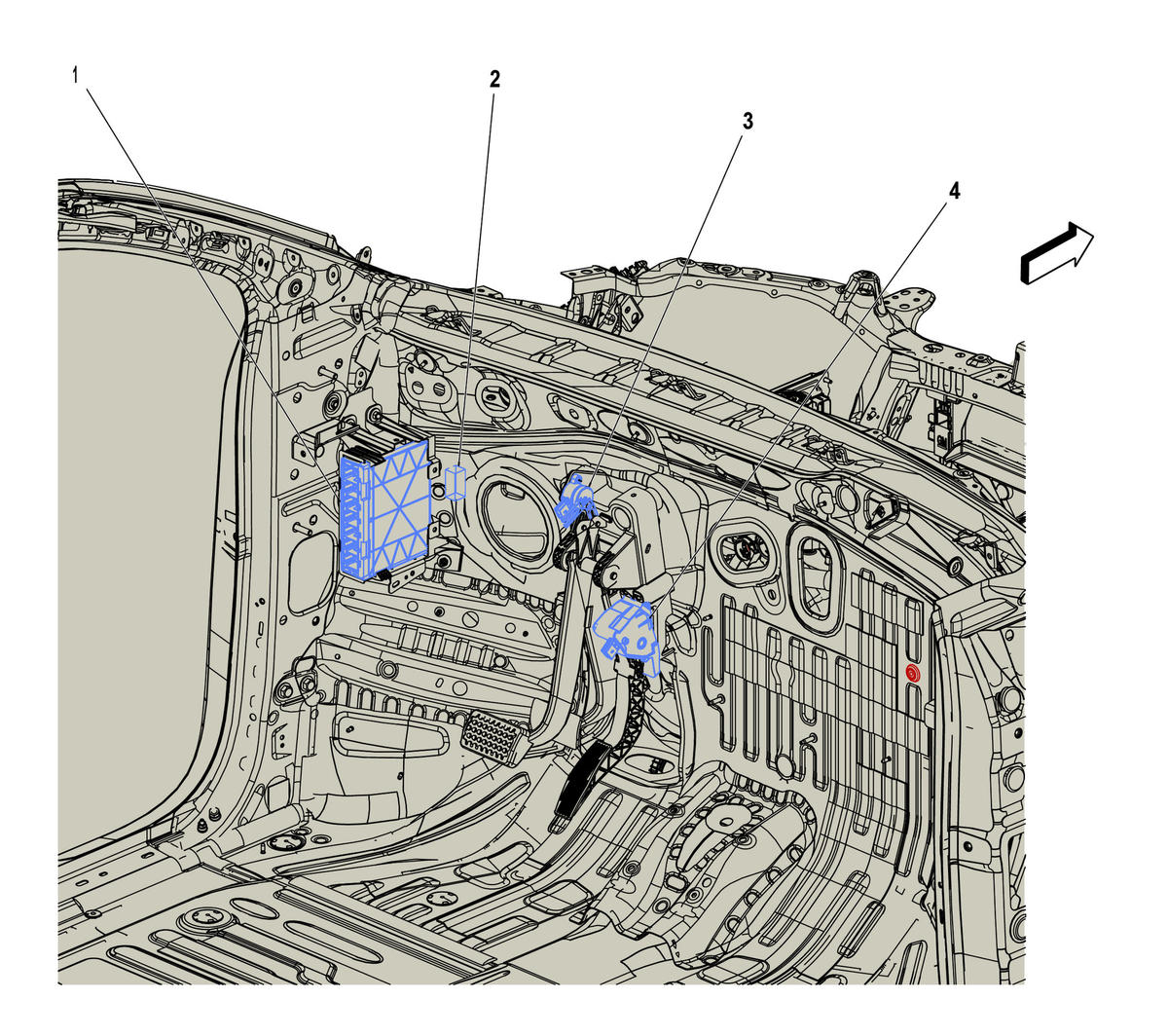

Behind Left Side of Instrument Panel Components
Behind Left Side of Instrument Panel Components
| Components |
|---|
| 1. K9 Body Control Module K9 Body Control Module X1 or K9 Body Control Module X2 or K9 Body Control Module X3 or K9 Body Control Module X4 or K9 Body Control Module X5 or K9 Body Control Module X6 or K9 Body Control Module X7 . |
| 2. R6E Terminating Resistor - High Speed Extension Bus 1 R6E Terminating Resistor - High Speed Extension Bus 1 . |
| 3. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor . |
| 4. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor . |
