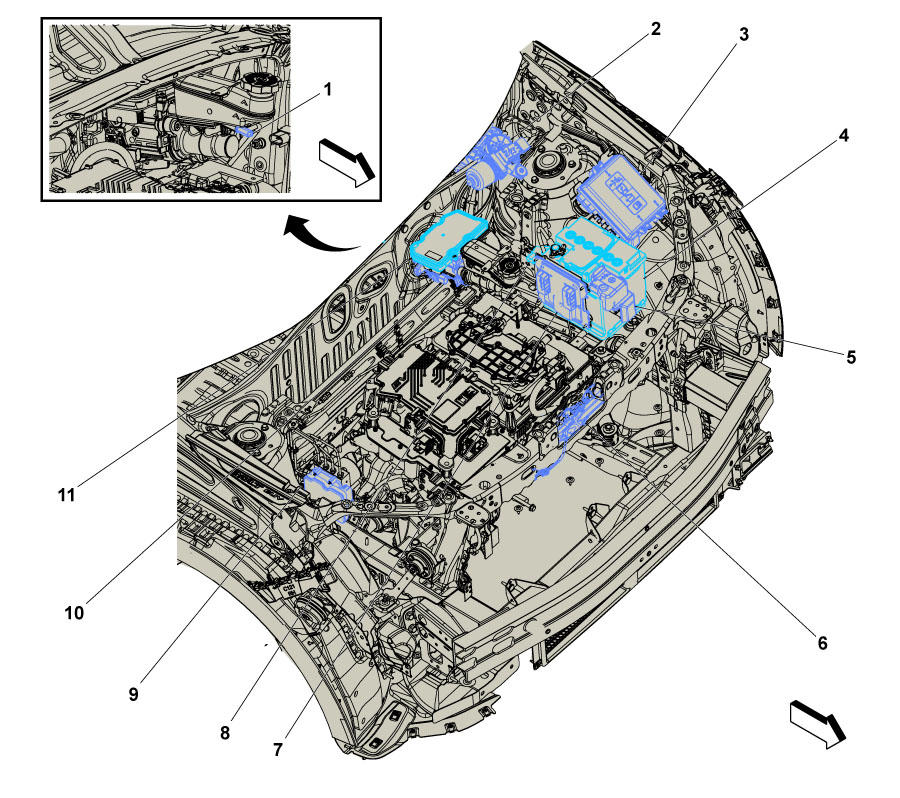

Left Side Engine Compartment
Left Side Engine Compartment
| Components |
|---|
| 1. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 3. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 . |
| 4. C1 Battery C1 Battery ((-) Battery) , or C1 Battery ((-) Body) |
| 5. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 , or X50D Fuse Block - Battery X4 . |
| 6. B55 Engine Hood Switch B55 Engine Hood Switch |
| 7. K20 Engine Control Module K20 Engine Control Module X1 , or K20 Engine Control Module X2 . |
| 8. B18 Battery Current Sensor B18 Battery Current Sensor |
| 9. K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
| 10. B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor |
| 11. K177 Brake Booster Control Module K177 Brake Booster Control Module |
