Front of Engine Components

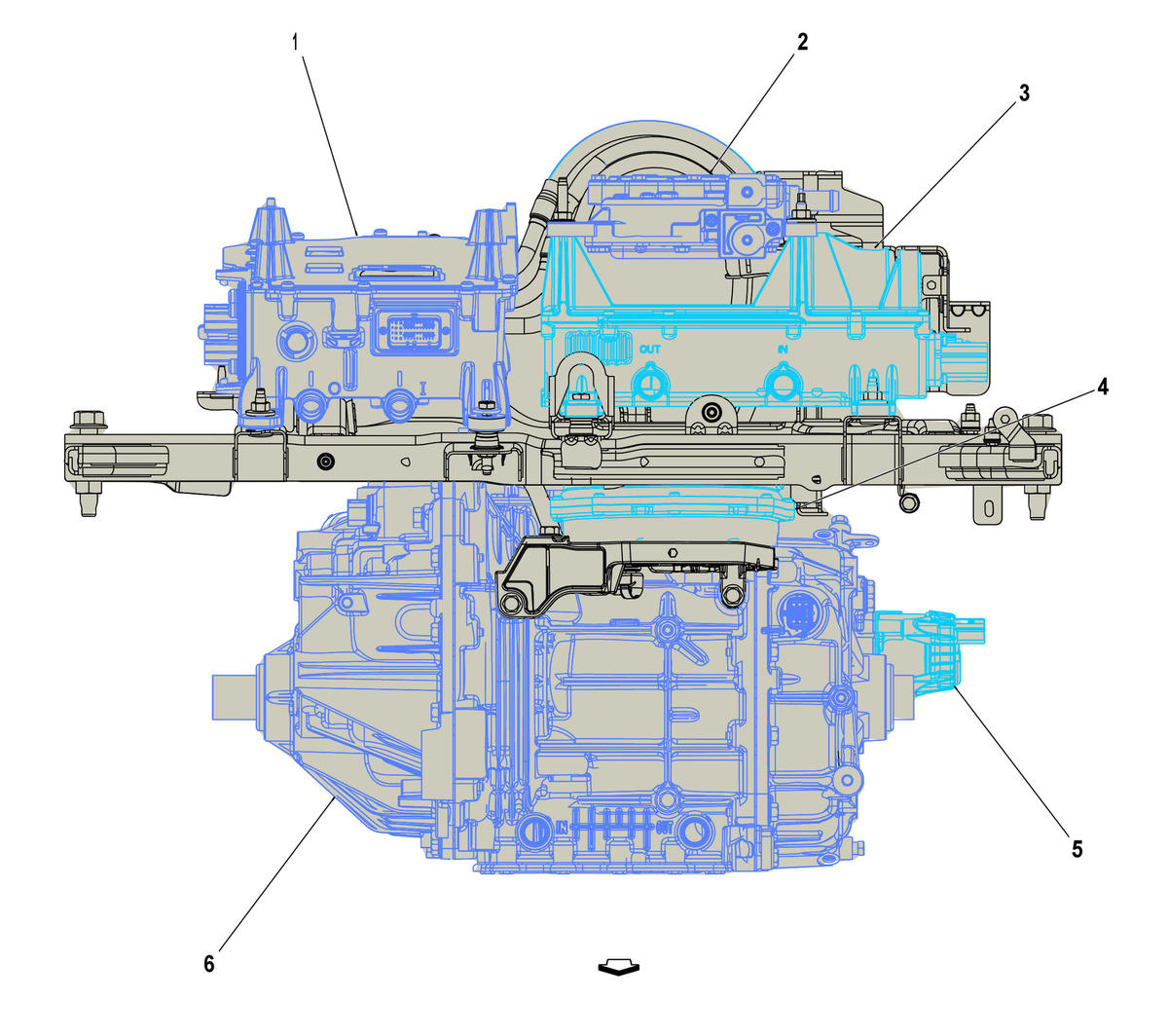

GM5979270Courtesy of GENERAL MOTORS COMPANY
Front of Engine Components

Components
1. T6 Power Inverter Module
T6 Power Inverter Module X1 or
T6 Power Inverter Module X2 or
T6 Power Inverter Module X3 .
2. K1 14V Power Module
K1 14V Power Module X1 or
K1 14V Power Module X2 or
K1 14V Power Module X3 or
K1 14V Power Module X4 .
3. T18 Battery Charger
T18 Battery Charger X1 or
T18 Battery Charger X2 or
T18 Battery Charger X3 .
4. K173 Transmission Range Control Module
5. G5 Transmission Fluid Pump - Electric/Auxiliary G5 Transmission Fluid Pump - Electric/Auxiliary .
6. T12 Automatic Transmission Assembly
T12 Automatic Transmission Assembly X1 or
T12 Automatic Transmission Assembly X2 or
T12 Automatic Transmission Assembly X3 or
T12 Automatic Transmission Assembly X4 .
