Front of Engine Compartment

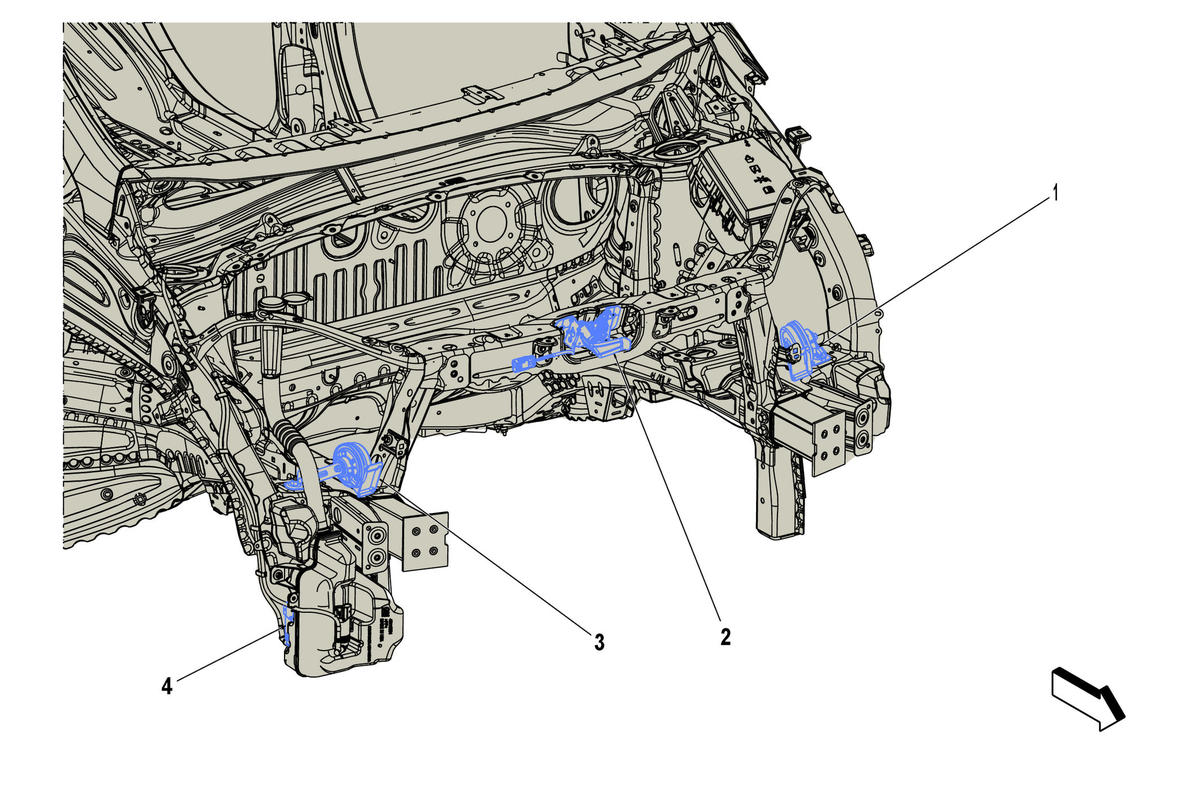

GM5752708Courtesy of GENERAL MOTORS COMPANY
Front of Engine Compartment

Harness Name Callout
P12L Horn - Left P12L Horn - Left 1
B55 Engine Hood Switch B55 Engine Hood Switch 2
P12R Horn - Right P12R Horn - Right 3
G24 Windshield Washer Pump G24 Windshield Washer Pump 4
