Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

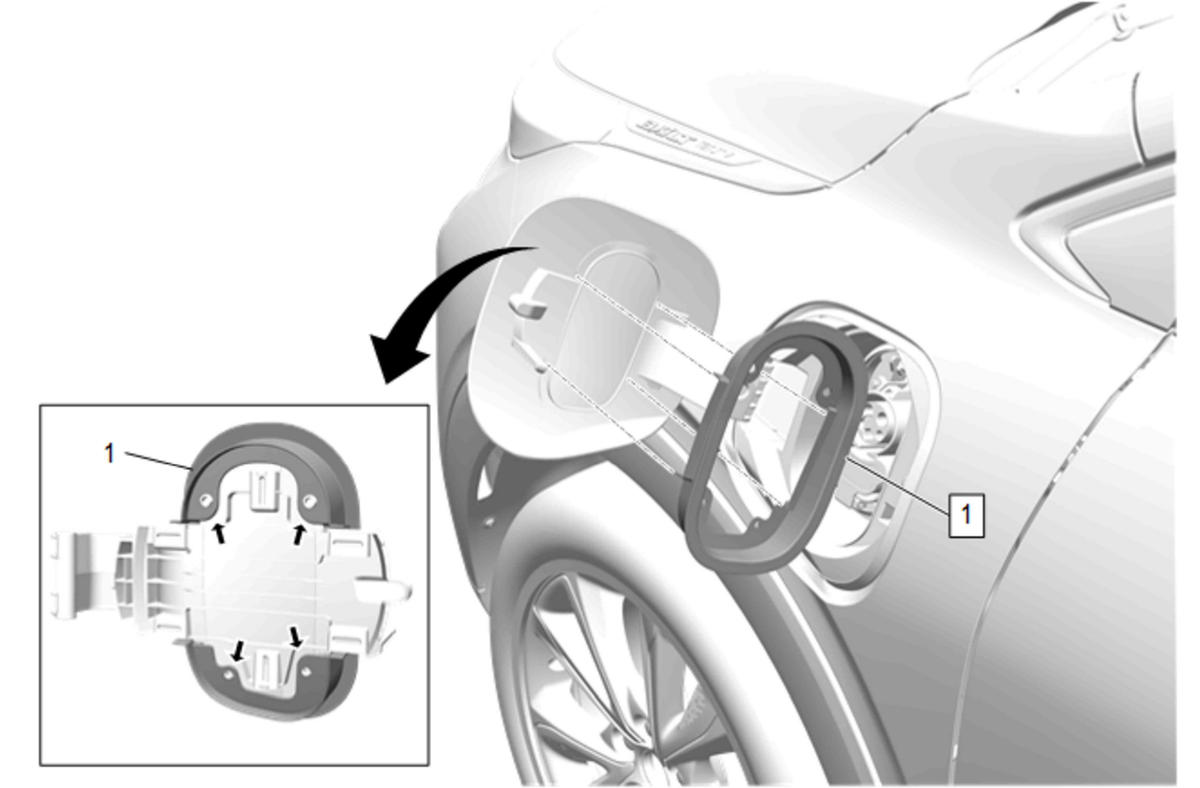

Charge Port Housing (1) - Install
Courtesy of GENERAL MOTORS COMPANY

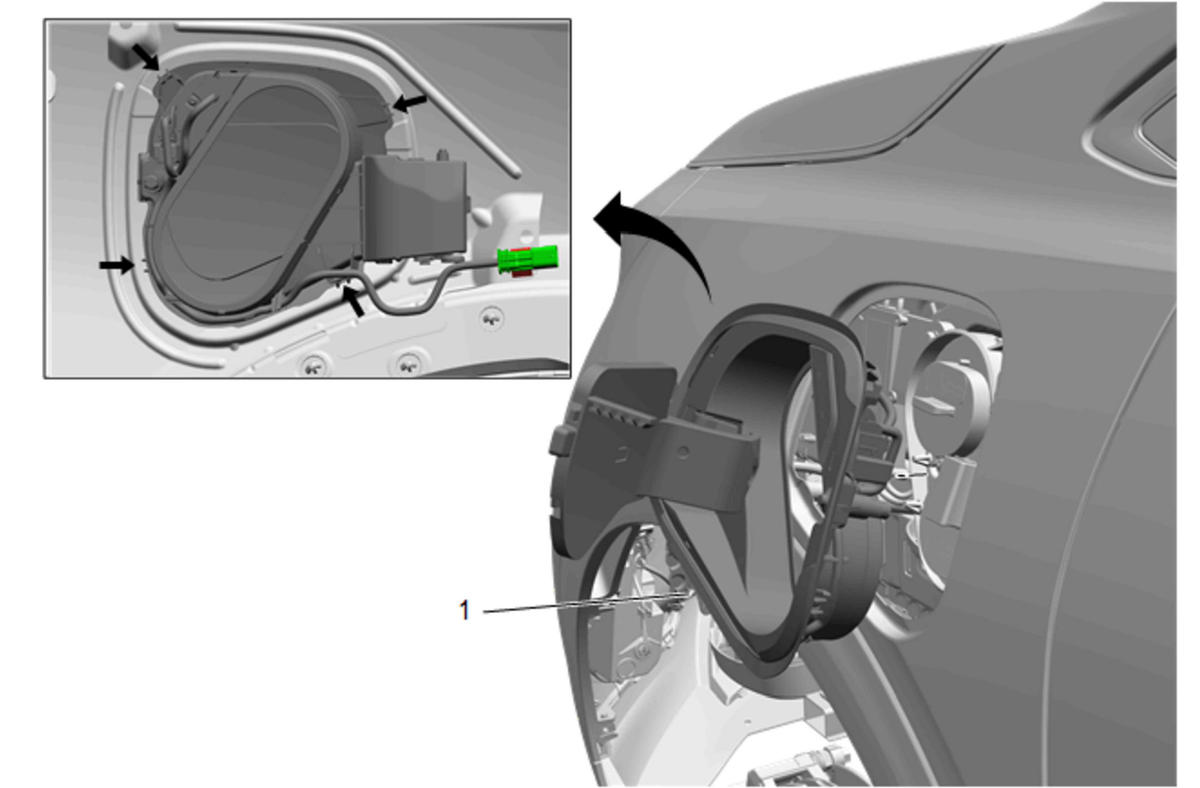

Charge Port Door (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Charge Port Door Hinge Seal (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner (2) - Install
Front Wheelhouse Liner Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Front Wheelhouse Liner Bolt (1) - Install and tighten [13x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Insulator Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Tire Front Air Deflector (2) - Install
Front Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Enable the high voltage system. High Voltage Enabling
