Installation Procedure

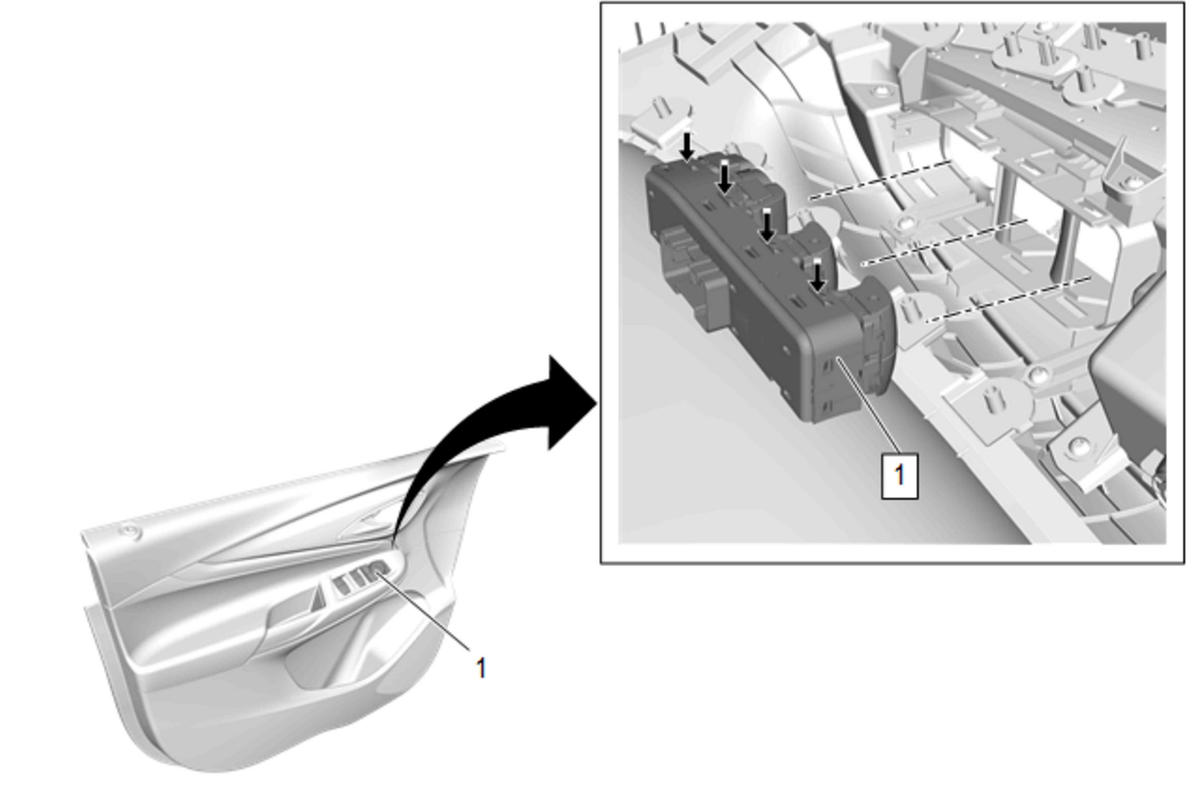

  1. GM5480426Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Control Switch (1) - Install

  2. Secure the retaining tabs.
  3. GM5480421Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (2) - Install - Front Side Door Trim Removal and Installation
