Installation Procedure

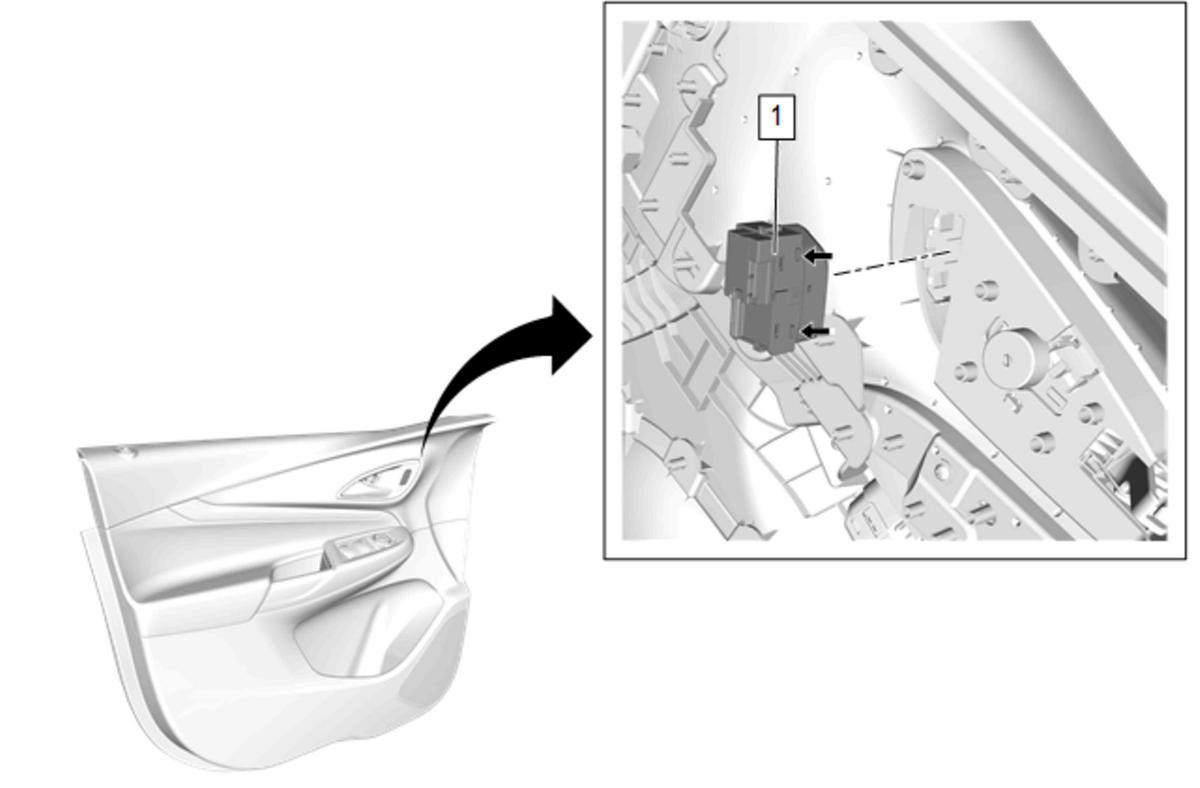

  1. GM5480423Courtesy of GENERAL MOTORS COMPANY

    Door Lock Switch (1) - Install

  2. Secure the retaining tabs.

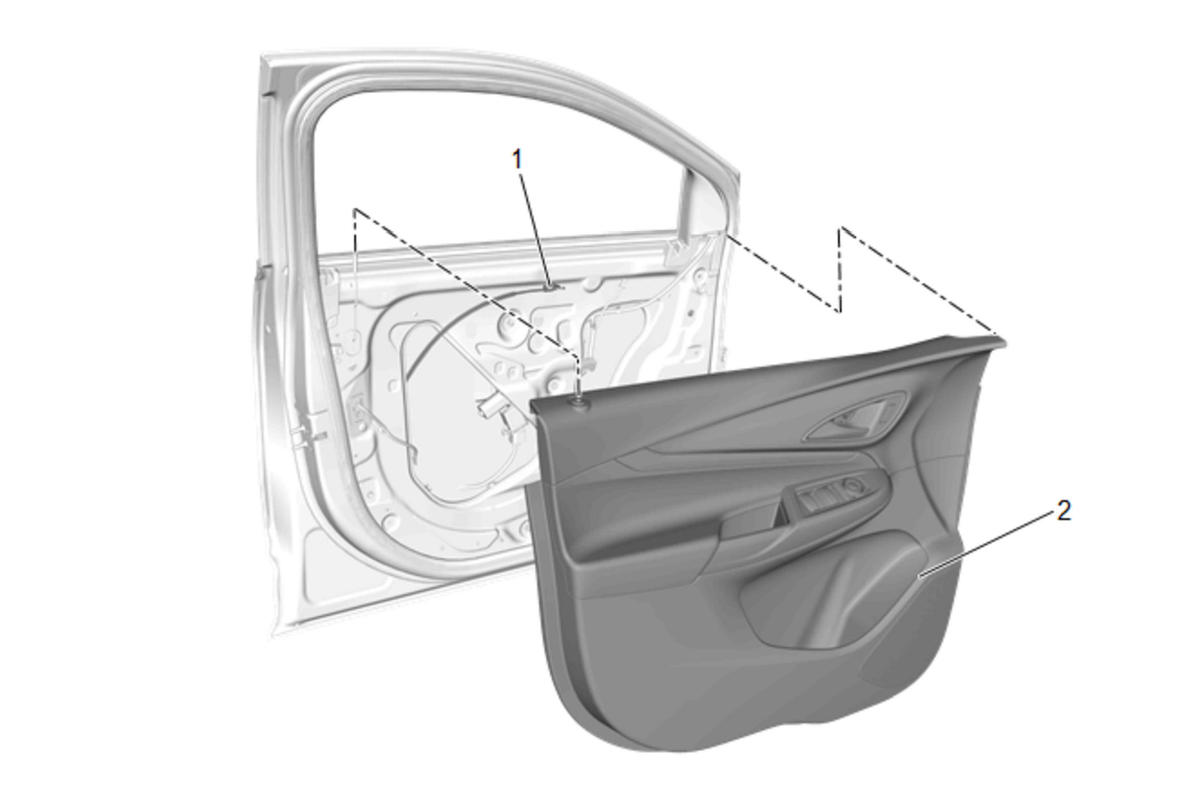

  3. GM5480421Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (2) - Install - Front Side Door Trim Removal and Installation
