Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

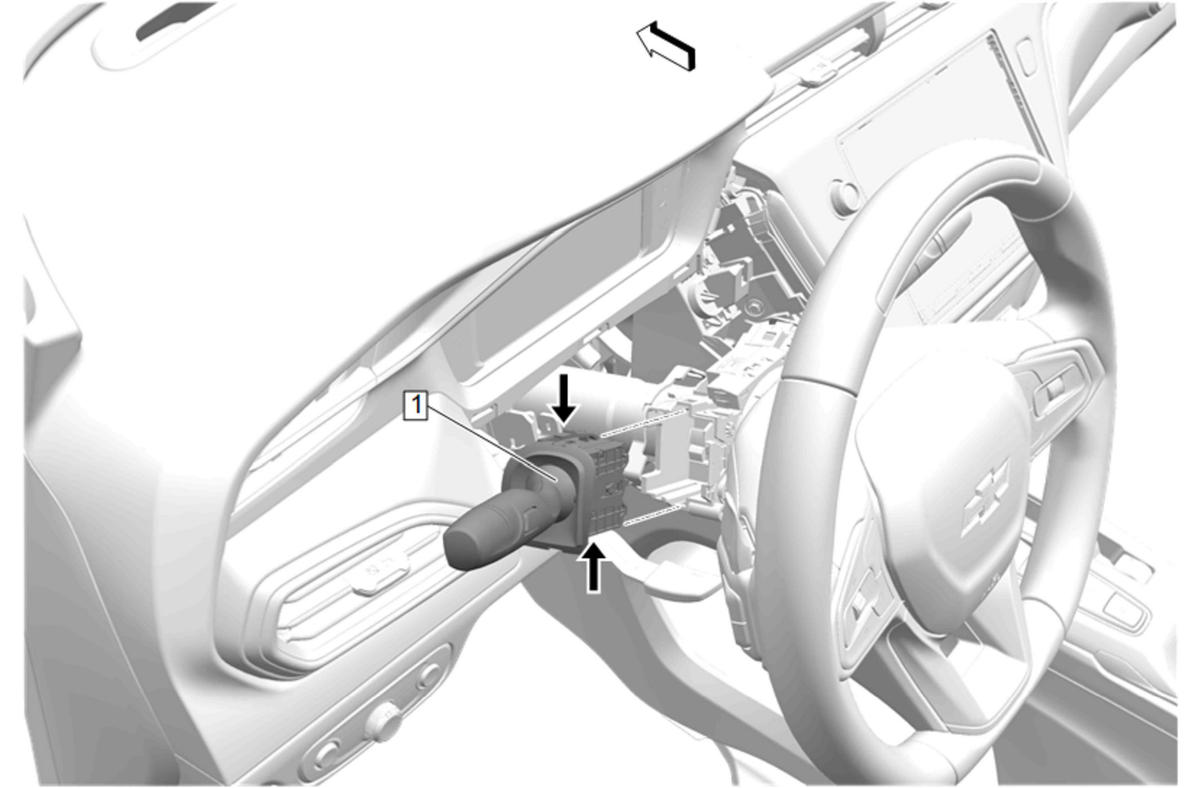

Turn Signal Switch (1) @ Turn Signal Switch Bracket - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover (2) - Install

CAUTION:

Refer to Fastener Caution .

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
