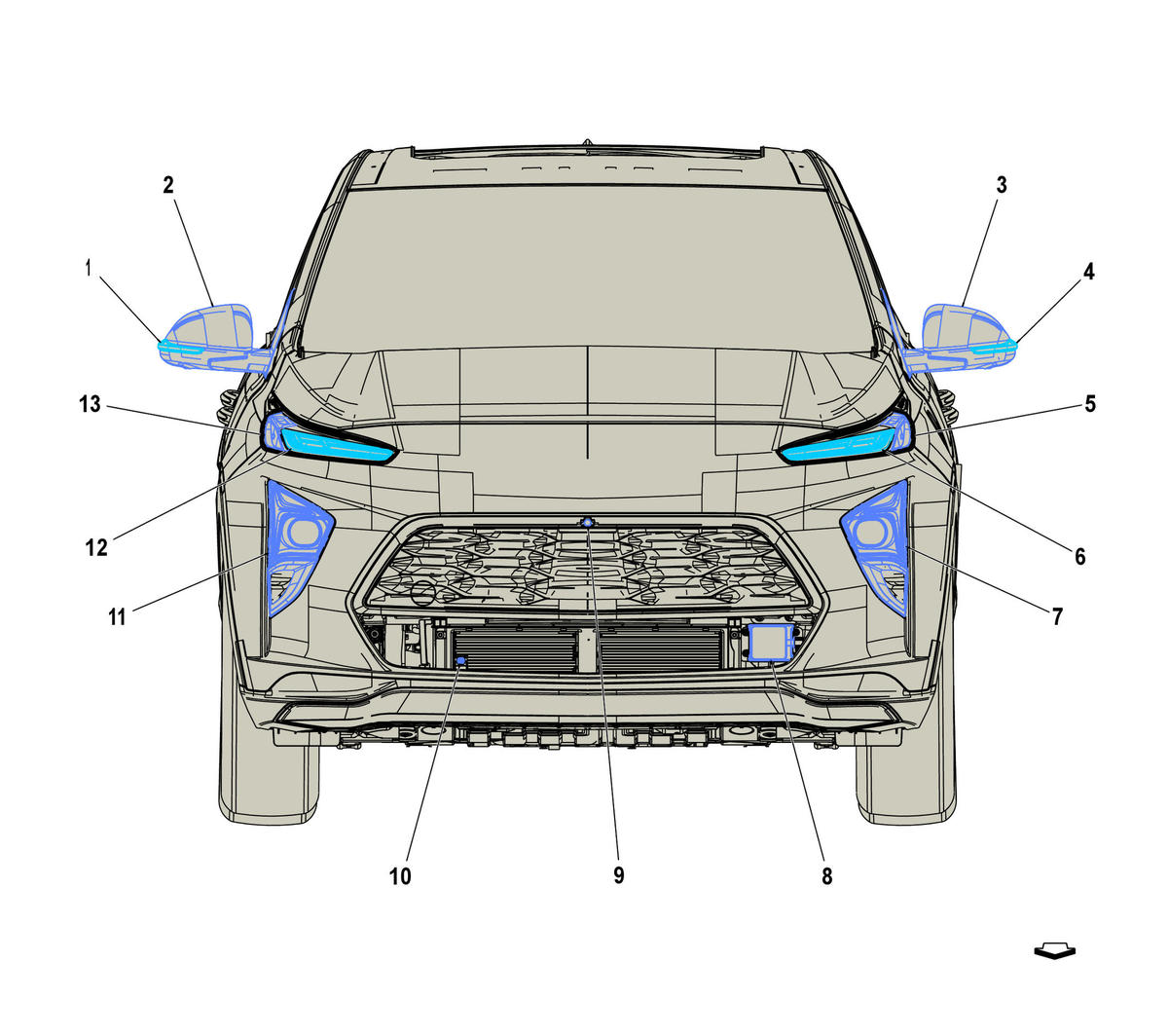

Front of Vehicle
Front of Vehicle
| Component Name | Callout |
|---|---|
| E4Z Turn Signal Repeater Lamp - Right | 1 |
| A9B Outside Rearview Mirror - Passenger | 2 |
| A9A Outside Rearview Mirror - Driver | 3 |
| E4Y Turn Signal Repeater Lamp - Left | 4 |
| E4J Park Lamp - Left Front | 5 |
| E4C Daytime Running Lamp - Left | 6 |
| E13LA Headlamp Assembly - Left | 7 |
| B233B Radar Sensor Module - Long Range B233B Radar Sensor Module - Long Range | 8 |
| B174G Front View Camera - Grille B174G Front View Camera - Grille (UV2) | 9 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 10 |
| E13RA Headlamp Assembly - Right | 11 |
| E4D Daytime Running Lamp - Right | 12 |
| E4K Park Lamp - Right Front | 13 |
