Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window (2) @ Front Side Door Window Regulator (3) - Install

CAUTION:

Fastener Caution

Front Side Door Window Regulator Sash Clamp Nut (1) - Tighten [2x] - Fastener Specifications
Place the front door window in the full down position.
Courtesy of GENERAL MOTORS COMPANY

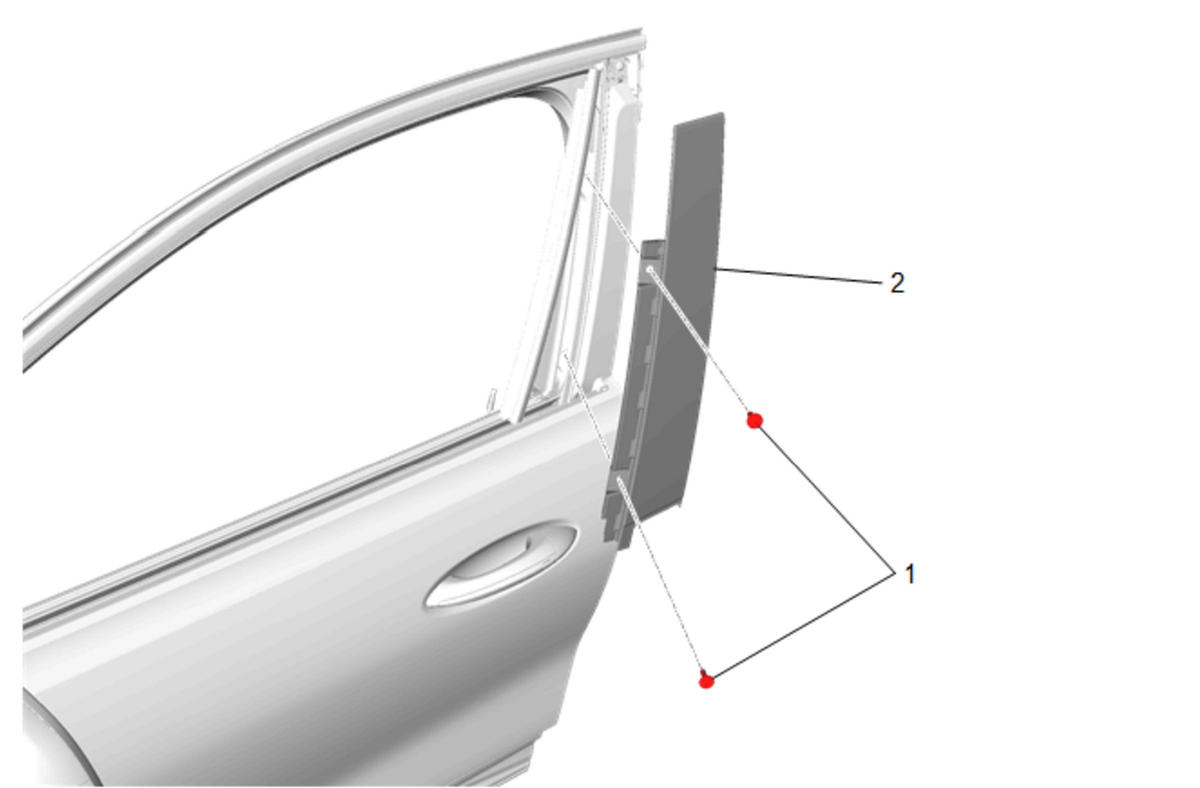

Front Side Door Window Frame Rear Applique (2) - Install
Front Side Door Window Frame Rear Applique Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

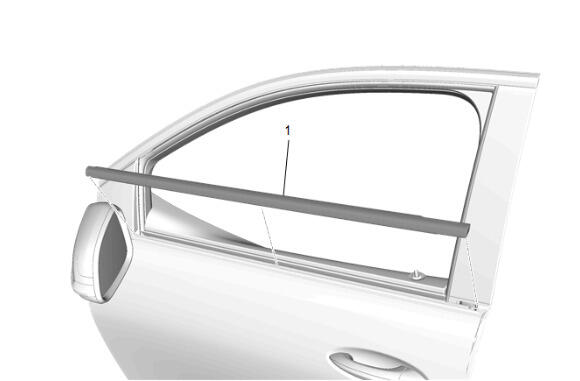

Press firmly to insert the front side door window belt reveal molding (1) back on the door flange.
Front Side Door Window Belt Reveal Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Front Side Door Latch - Connect
Wiring Harness Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Outside Rearview Mirror - Connect
Wiring Harness Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the door weatherstrip is not trapped below the window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.

Front Side Door Window Garnish Molding (2) - Install
Front Side Door Window Garnish Molding Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Armrest Bracket (2) - Install
Front Side Door Armrest Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Inspect the door window for proper operation before installing the door trim panel.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (1) - Install - Front Side Door Trim Removal and Installation
