Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

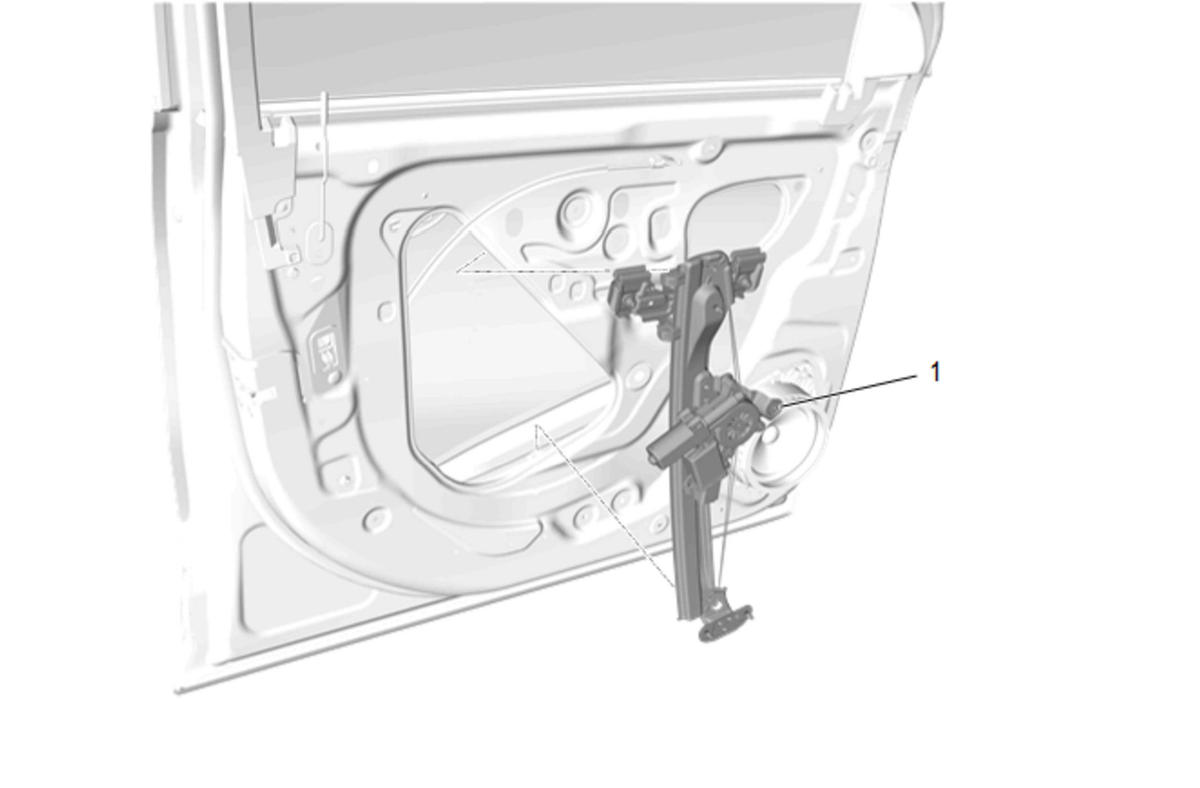

Front Side Door Window Regulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

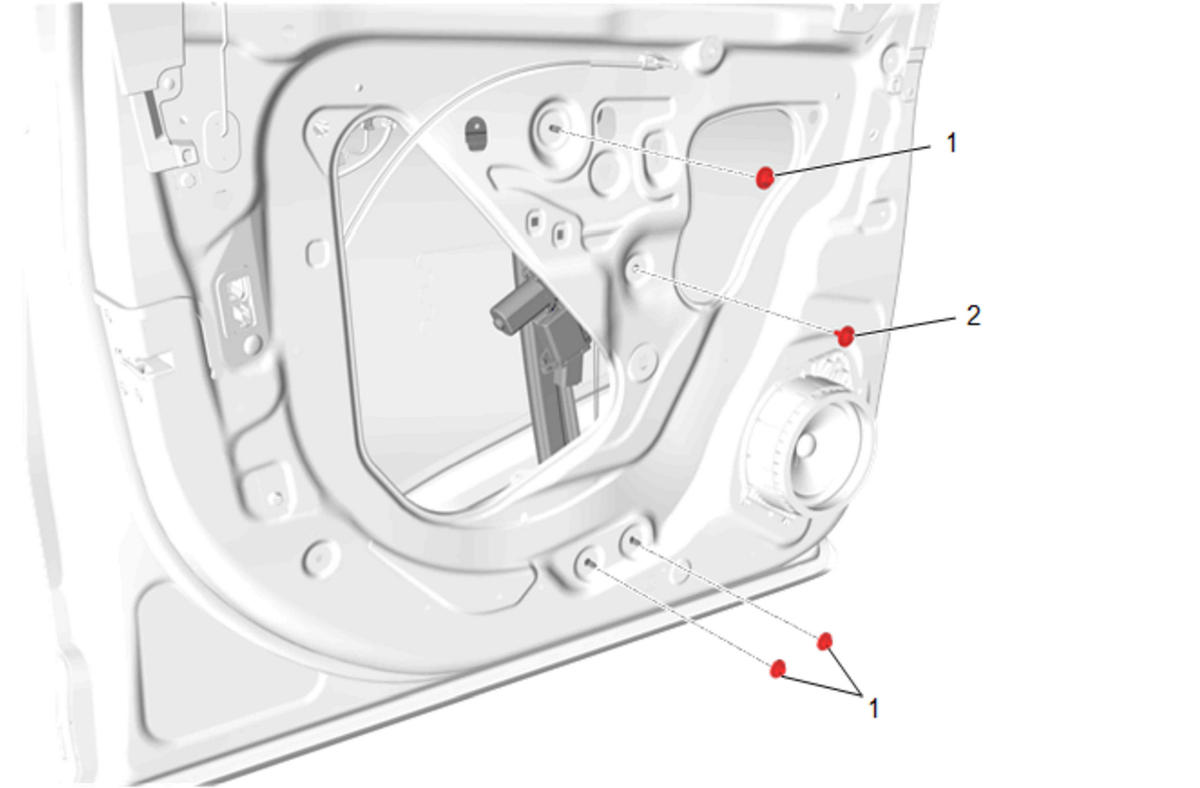

Front Side Door Window Regulator Nut (1) - Install and tighten [3x] - Fastener Specifications
Front Side Door Window Regulator Bolt (2) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Place the window regulator in the full up position until window is seated into the front side door window regulator sash clamp.

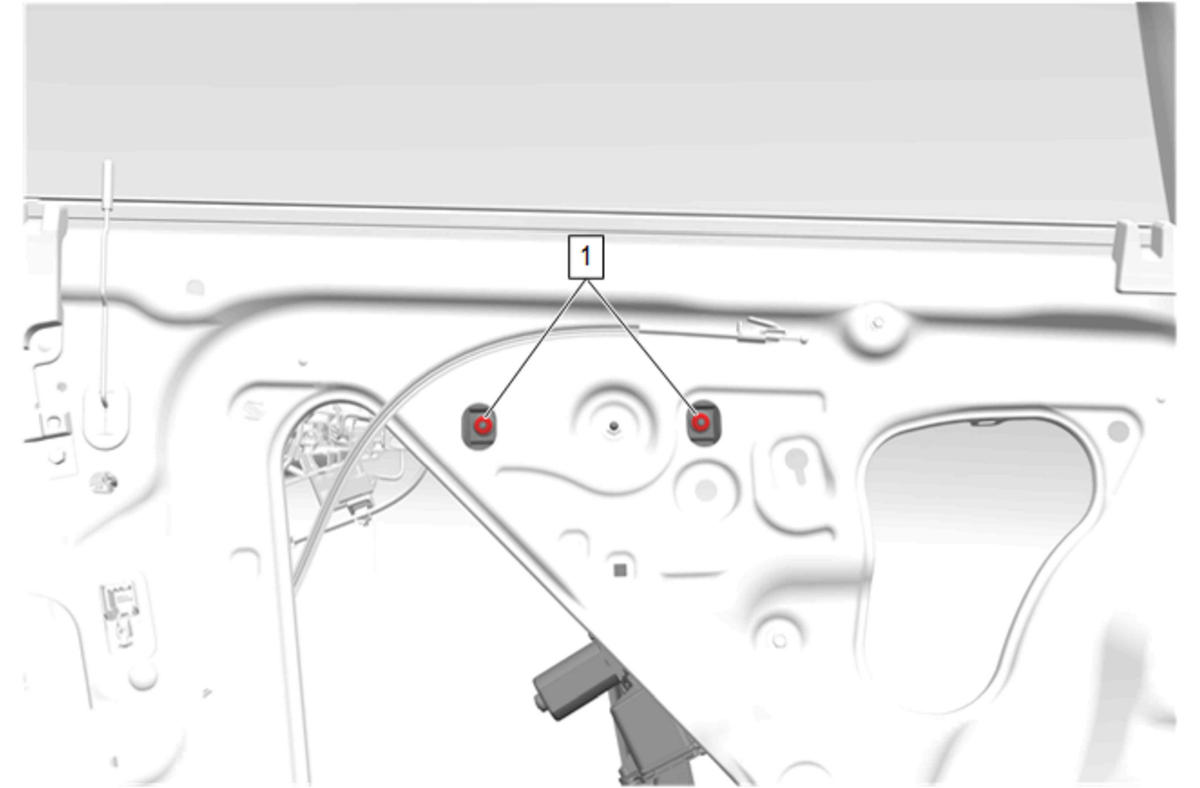

Front Side Door Window Regulator Sash Clamp Nut (1) - Tighten [2x] - Fastener Specifications
Remove the tape.
Inspect the door window for proper operation before installing the door trim panel.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Front Side Door Latch - Connect
Wiring Harness Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Outside Rearview Mirror - Connect
Wiring Harness Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the door weatherstrip is not trapped below the window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.

Front Side Door Window Garnish Molding (2) - Install
Front Side Door Window Garnish Molding Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Armrest Bracket (2) - Install
Front Side Door Armrest Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (1) - Install - Front Side Door Trim Removal and Installation
Perform the necessary programming and setup procedure: Window Motor Programming - Express Function
