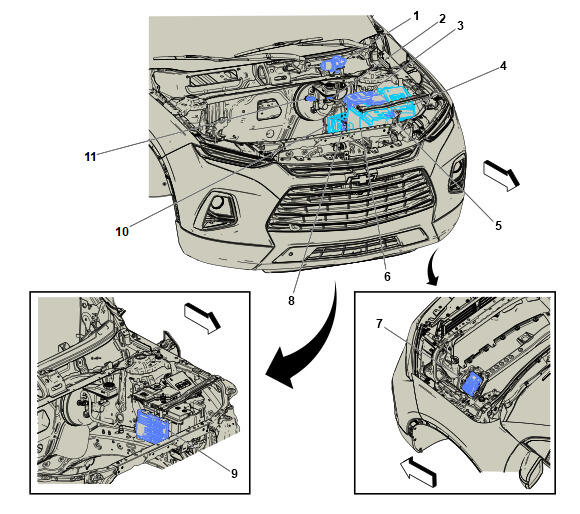

Left Side of Engine Compartment Components (LGX)

Courtesy of GENERAL MOTORS COMPANY

Items
1. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch (LGX) , or B20 Brake Fluid Level Switch (LSY)
3. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X10 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 , or X50D Fuse Block - Battery X4 , or X50D Fuse Block - Battery X5 , or X50D Fuse Block - Battery X6 , or X50D Fuse Block - Battery X7 (LGX) , or X50D Fuse Block - Battery X7 (LSY) , or X50D Fuse Block - Battery X8 (LGX) , or X50D Fuse Block - Battery X8 (LSY)
4. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 () , or X50A Fuse Block - Underhood X5
5. B110 Battery Sensor Module B110 Battery Sensor Module X1 , or B110 Battery Sensor Module X2 (LGX) , or B110 Battery Sensor Module X2 (LSY)
6. C1 Battery
7. K71 Transmission Control Module K71 Transmission Control Module ()
8. Q5 Brake Pressure Modulator (LGX)
9. K20 Engine Control Module K20 Engine Control Module X1 (LGX) , or K20 Engine Control Module X1 (LSY) , or K20 Engine Control Module X2 (LGX) , or K20 Engine Control Module X2 (LSY) , or K20 Engine Control Module X3 (LGX) , or K20 Engine Control Module X3 (LSY)
10. K17 Electronic Brake Control Module (LGX) K17 Electronic Brake Control Module (LGX)
11. B19B Brake Booster Vacuum Sensor (LGX) B19B Brake Booster Vacuum Sensor (LGX)
