Installation Procedure

CAUTION:

Steering Column Nut (1) - Tighten in sequence [4x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

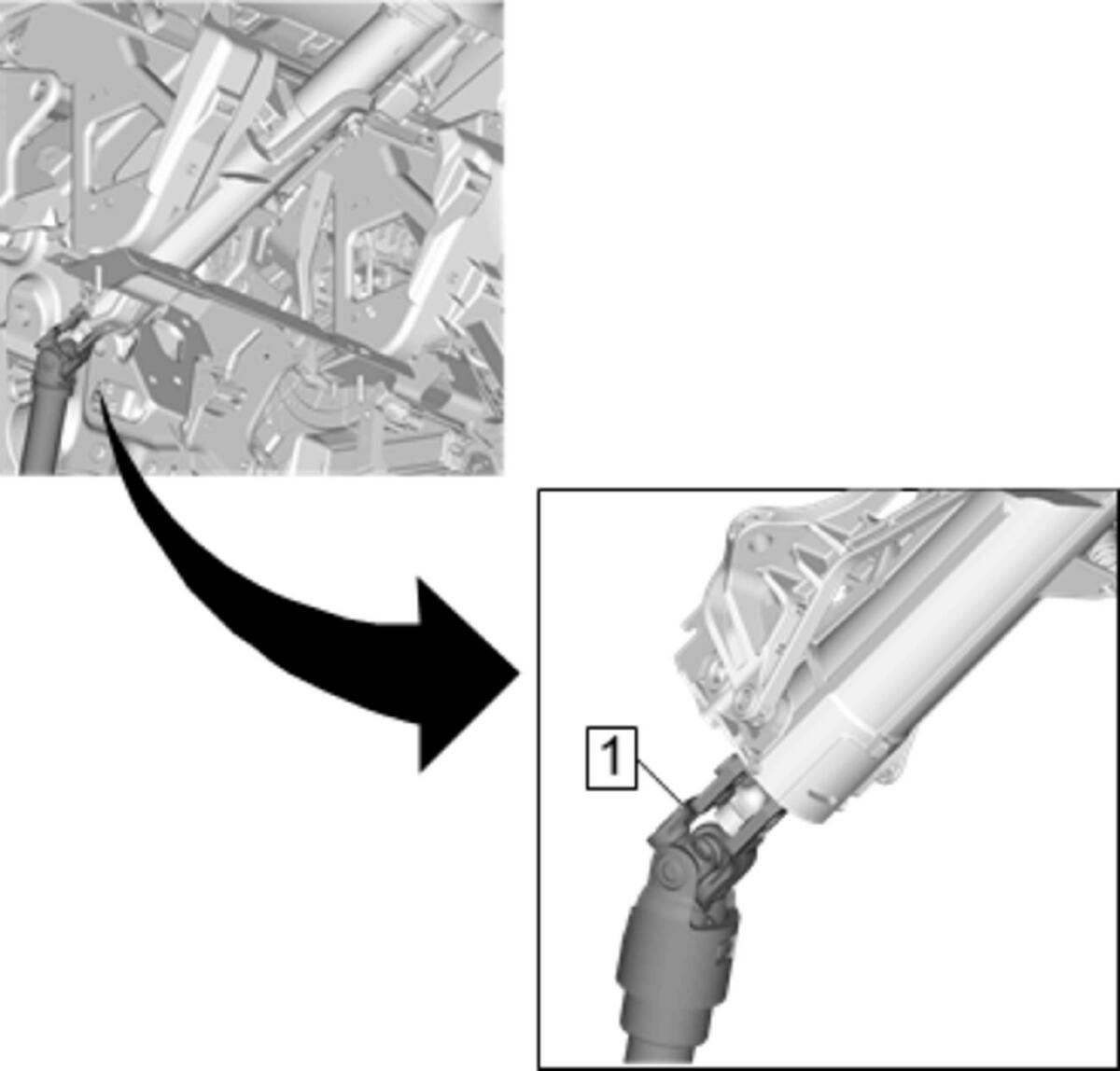

Intermediate Steering Shaft (1) @ Steering Column - Install - Intermediate Steering Shaft Replacement
Connect the steering column electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
The anti-rotation pin must be removed from the steering column before installing the steering wheel. Ensure that the steering wheel bolt is torqued to specification during steering wheel installation. Over torquing the steering wheel bolt can result in damage to the steering column rivets which will disable the telescoping mechanism. If the steering column rivets are damaged, a new steering column must be installed.

Remove the device used to prevent steering column rotation.
Steering Wheel (2) - Install - Steering Wheel Replacement
Courtesy of GENERAL MOTORS COMPANY

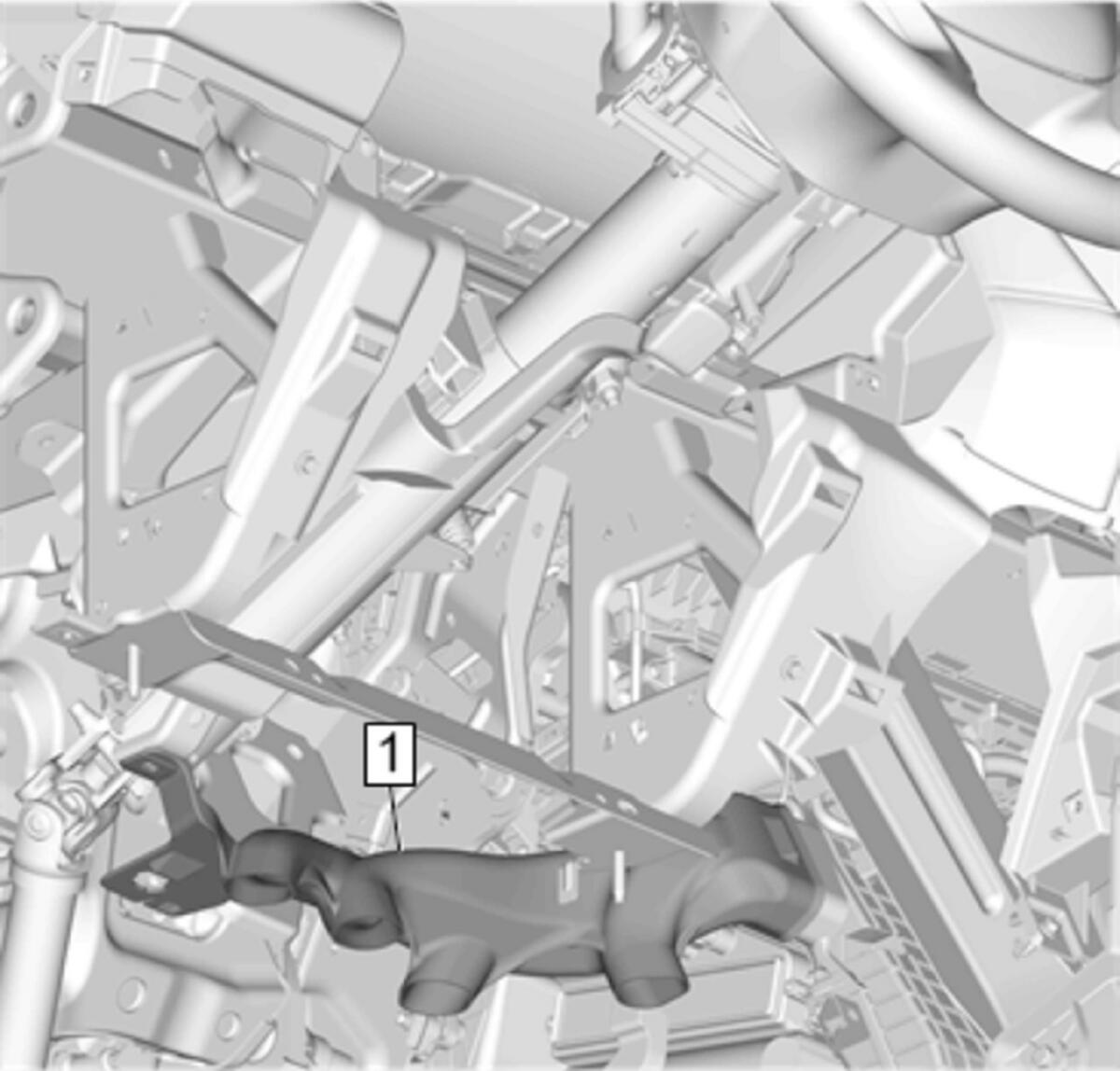

Floor Front Air Outlet Duct - Left Side (1) - Install - Floor Front Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

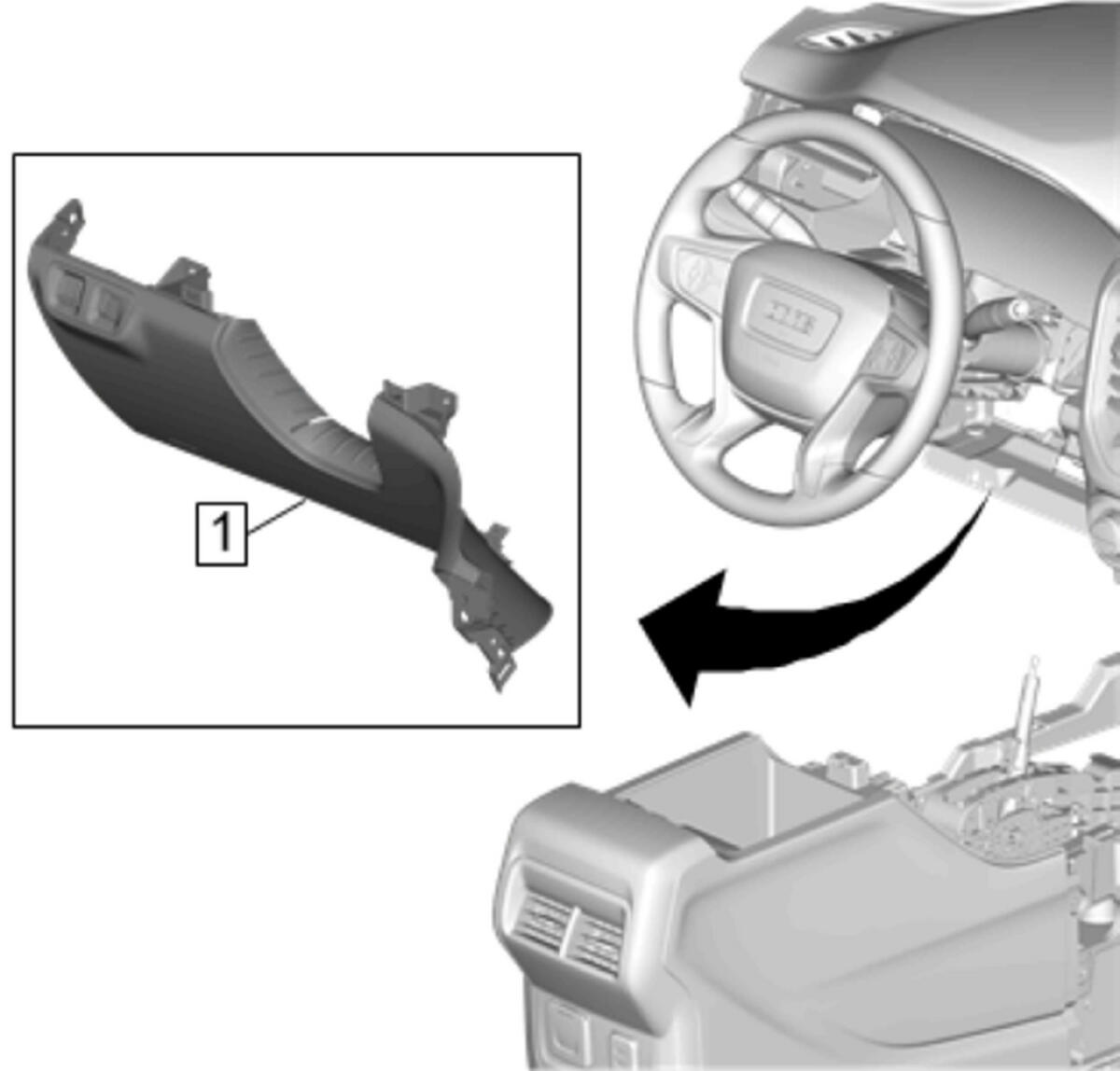

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

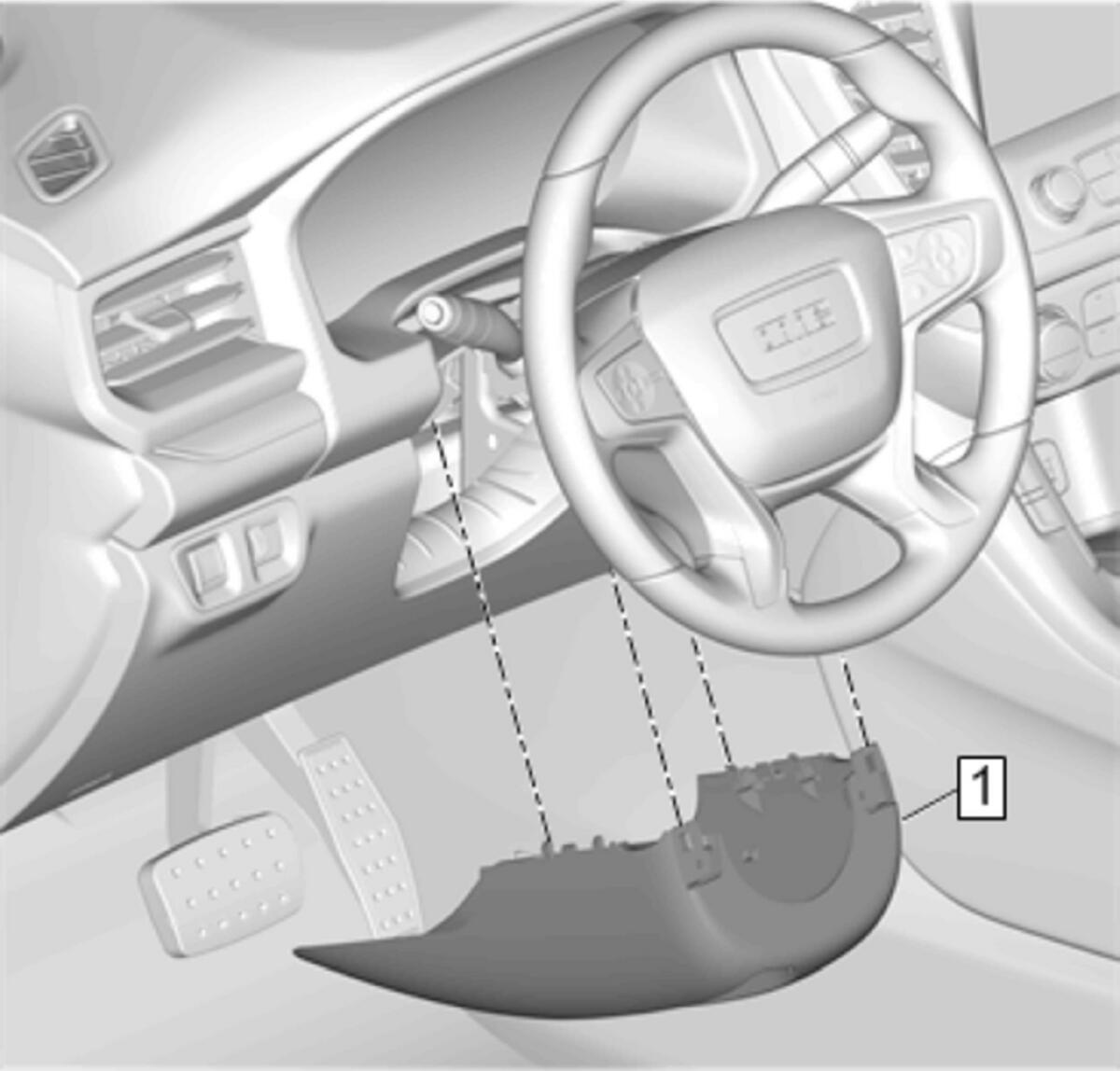

Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement (N37)
Enable the SIR System. SIR Disabling and Enabling
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
Perform functionality check of tilt and telescoping features.
