Installation Procedure

WARNING: This page is about a different variant/trim than selected.

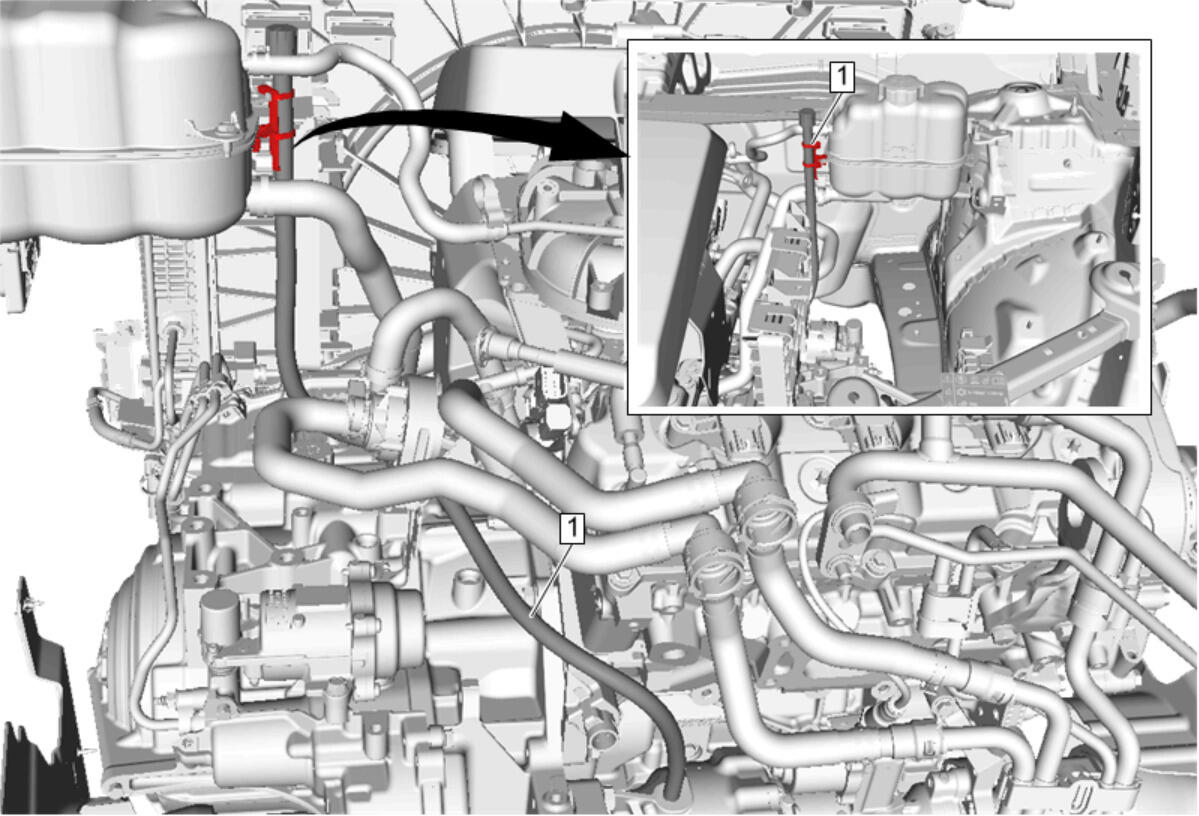

  1. GM4732106Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the vent hoses are free of kinks and routed clear of sharp objects.

    Connect the power transfer unit vent hose assembly (1) to the radiator surge tank assembly.

  2. Connect the power transfer unit vent hose assembly to the power transfer unit.
