Power Transfer Unit Case Holding Fixture Removal, Oil Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

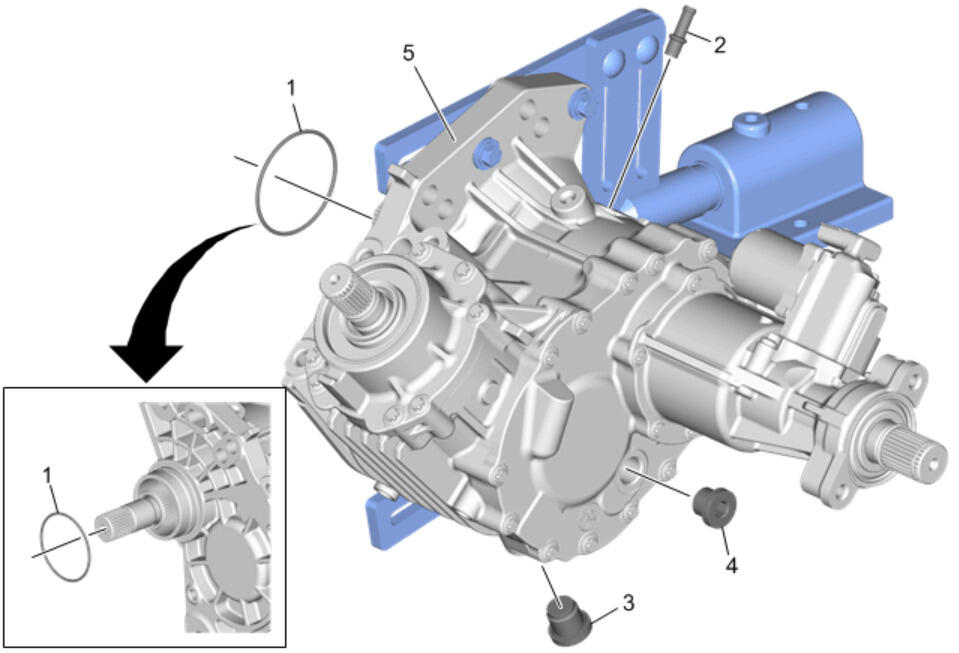

Callout	Component Name
1	Power Transfer Unit Face Seal - O-Ring Procedure Install a NEW seal.
2	Power Transfer Unit Vent Hose Connector NOTE: Replacement is required.
3	Power Transfer Unit Drain Plug Tighten 39 N.m (29 lb ft) NOTE: The plug and seal are only available as an assembly. Install a NEW plug with seal during assembly.
4	Power Transfer Unit Fill Plug Tighten 39 N.m (29 lb ft) NOTE: The plug and seal are only available as an assembly. Install a NEW plug with seal during assembly.
5	Power Transfer Unit Case Special Tools DT-3289-20 Holding Fixture DT-36842 Transaxle Holding Fixture Equivalent regional tools: Refer to: Special Tools .
