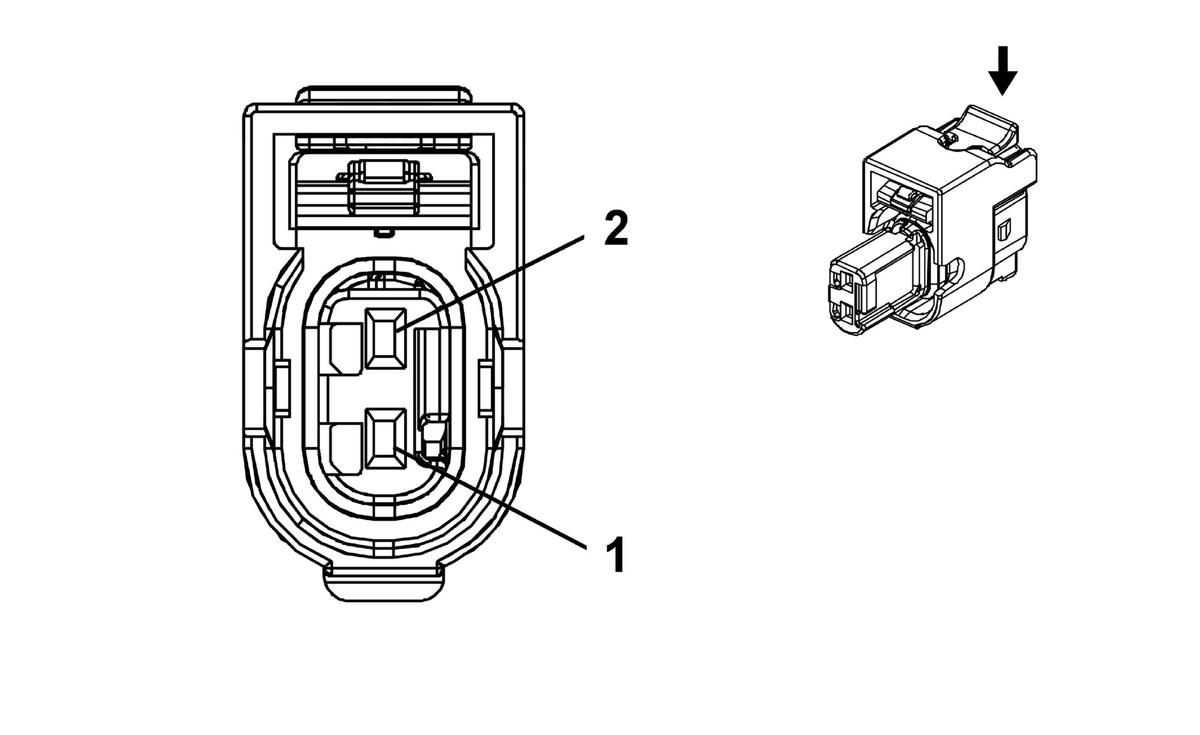

Q17A Fuel Injector 1
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Fuel Injector
- OEM Connector: 2098641-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 2 -Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN |
4801 |
Direct Fuel Injector High Voltage Control Cylinder 1 |
I |
LXY |
| 2 |
0.75 |
BN / WH |
4901 |
Direct Fuel Injector High Voltage Supply Cylinder 1 |
I |
LXY |
