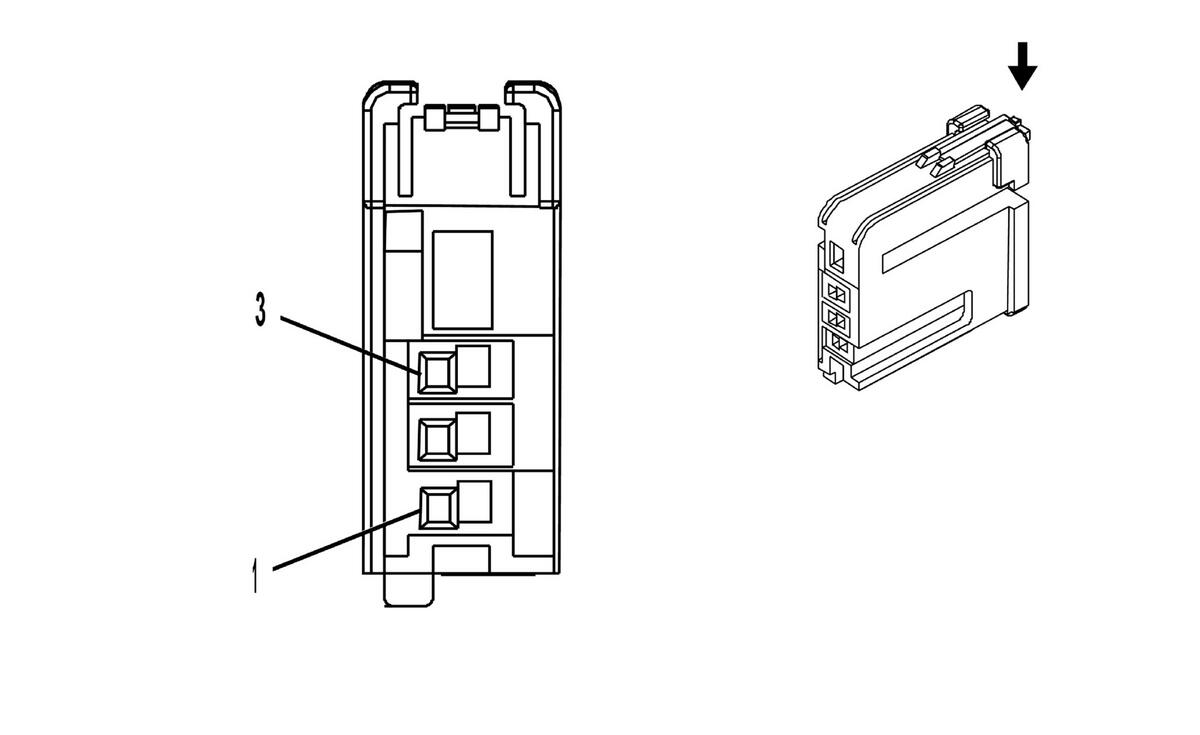

P2 Transmission Shift Lever Position Indicator
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Floor Console Harness
- OEM Connector: 13524279
- Service Connector: Service by Harness - See Part Catalog
- Description: 3 -Way F 0.64 Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY / VT |
755 |
Retained Accessory Power Relay Coil Control |
I |
-EPH |
| 2 |
0.35 |
GN / BU |
6133 |
Body Control Module LIN Bus 2 |
I |
-EPH |
| 3 |
0.35 |
BK |
2250 |
Ground |
I |
-EPH |
